warrior jp industry hydraulic winch 20.0 t

warrior jp industry hydraulic winch 20.0 t

SKU: 20JP0IH
GTIN: 5060423981794
Category: Hydraulic Winches

8.999,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 15 - 18 Workdays (DE - int. shipments may differ)

piece

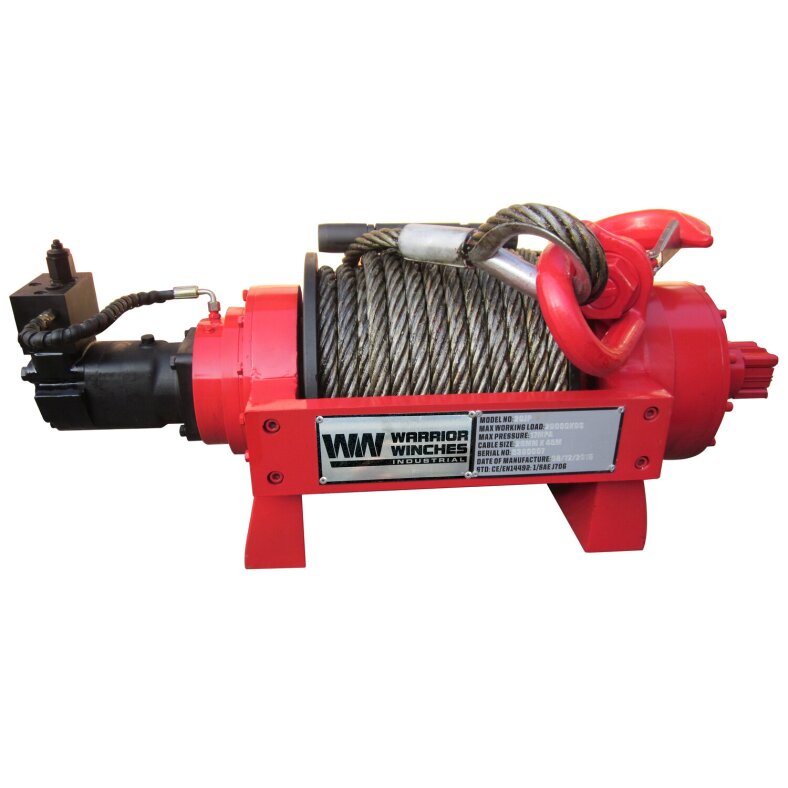

Warrior hydraulic winch jp20 20 t

Rugged and compact, the jp series was designed and tested for the toughest applications.
Minimum drum-to-rope ratio of 10:1, multi-disc friction brake, equalizer valve,
and rope tensioner are standard features. Available from 10t to 40t. Manufactured to meet the
Requirements of en 14492 : 1.

Standard equipment

Full sliding heavy duty planetary gearbox
Multi-disc friction brake
High torque industrial motor
Air and manual clutch actuation

Outstanding features

Heavy duty rope tensioner standard
Minimum 10:1 rope to drum ratio
Balancing valve standard

Included in delivery:

Balancing valve
Safety hook
Rope contact window
Steel rope

Specifications

Rated pulling force: 20.000 kg
Working speed (lowest layer): 6.0 m/min.
Working pressure max: 17Mpa
Oil flow max: 120 L/min.
Drum size (mm): 210 x 340
Rope size: 45m x 26mm
Weight: 370kg

Line Pull:	above 8 t
Cable/Rope Length:	above 30 m
Cable/Rope Type:	Steel Cable
Price:	above 2000 EUR
Brand:	Warrior®
Vehicle Type:	Truck Others
Drive Type:	hydraulic
Special Features:	weatherproof
Shipping weight:	370,00 kg
Item weight:	370,00 kg
Dimensions ( Length × Width × Height ):	122,40 × 64,00 × 42,00 cm
