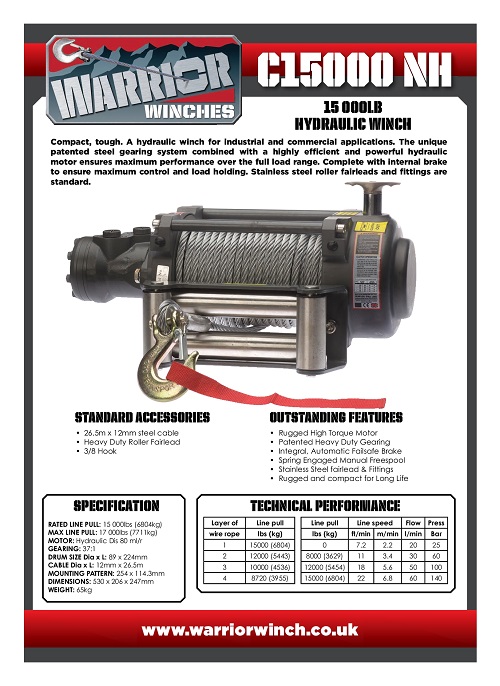

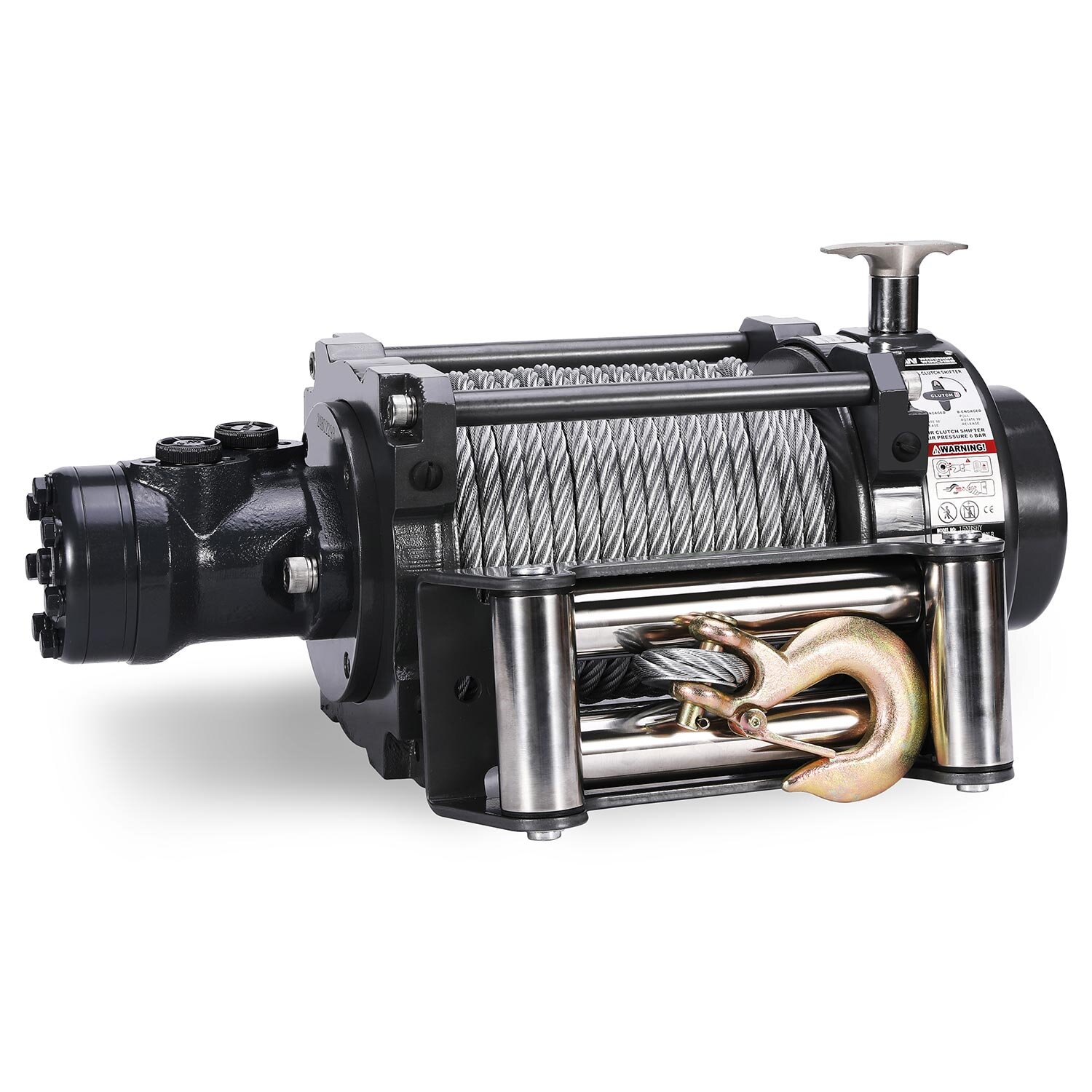

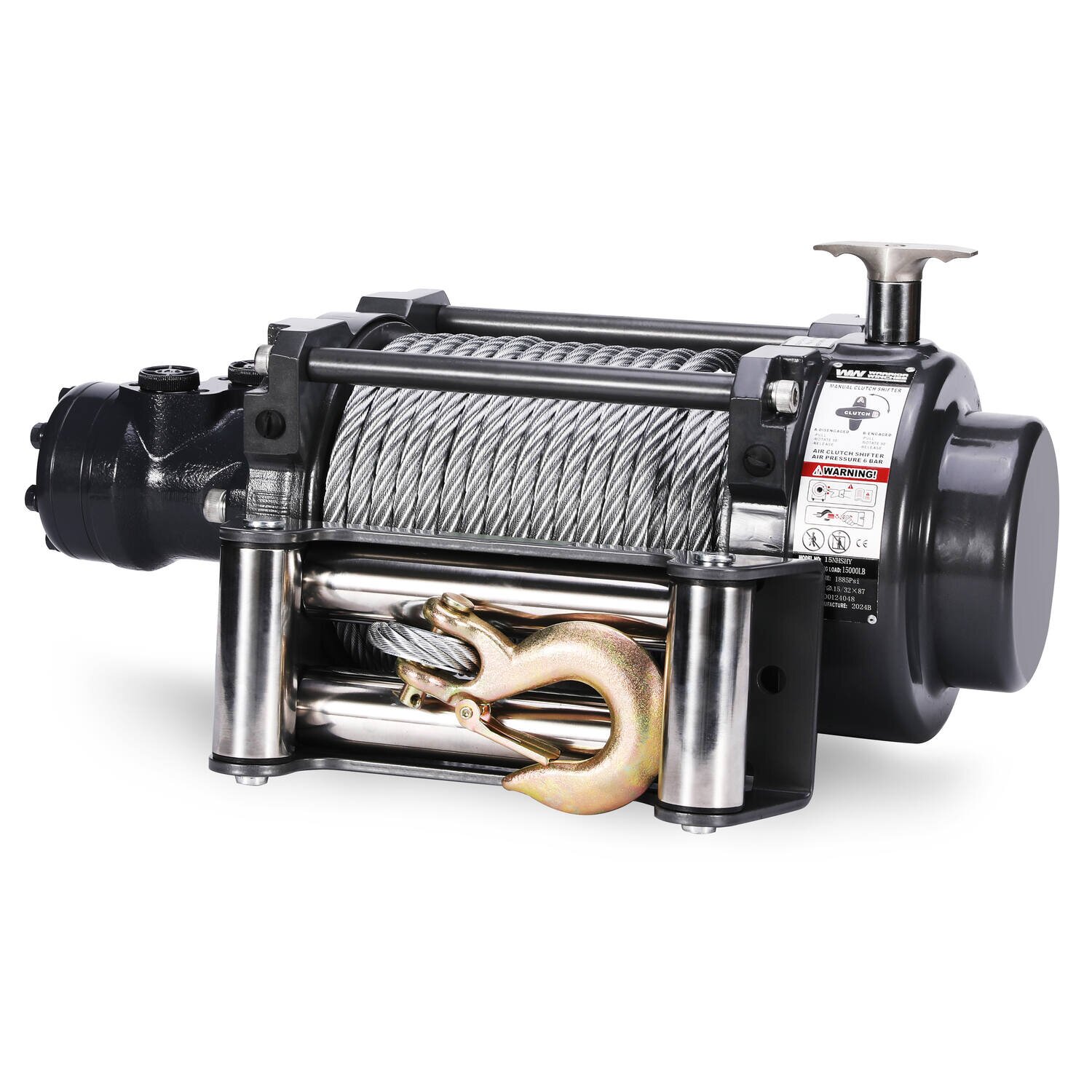

Warrior C15000NH hydraulic winch
Compact, robust. A hydraulic winch for industrial and commercial applications. The unique patented steel gear system combined with a highly efficient and powerful hydraulic motor ensures maximum performance across the entire load range. Complete with internal brake to ensure maximum control and load retention. Stainless steel roller guides and fittings are standard.
Standard Features:
? Pulling Capacity : 6,804 kg (15,000 lb)
? Rope : 26.5 m of 12 mm steel cable with clevis hook
? Motor : Hydraulic dispenser 80ml/r
? Gearbox : Freewheel clutch - Allows manual unwinding of the cable
Accessories:
? Mounting Plate : Available as an optional extra
? Guide Rope : Heavy-duty 4-way roller rope
? Mounting Screws : For standard installations included
This includes:
? User manual
Other information:

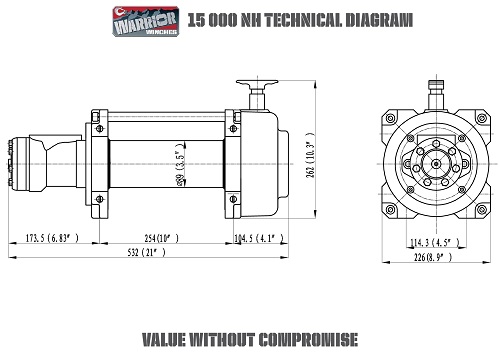

? Dimensions : 530mm L x 206mm D x 227mm H (Dimensions shown assume electrical pack is mounted remotely)
? Mounting bolt pattern : 254mm x 114.3mm
? Approx. shipping weight: 65kg
? Cable pull - no load : 2.2 m/min (20 l/min at 25 bar)
? Cable pull - full load : 6.8 m/min (60 l/min at 140 bar)
While every effort has been made to ensure the accuracy of the information on this product, in the interest of technical improvement, this specification is subject to change without notice.
| Layer of Rope/Cable |
Line Pull: lbs(kgs) |
Rope on Drum ft(m) |
| 1 |
15000 (6804) |
18.0 (5.5) |
| 2 |
12120 (5498) |
41.7 (12.4) |
| 3 |
10168 (4612) |
65.9 (20.1) |
| 4 |
8757 (3972) |
86.9 (26.5) |
Line Pull
lbs (kgs) |
Line Speed
ft/min (m/min) |
Flow
L/min (G/min) |
Pressure
Mpa |
| 0 |
19.7 (6.0) |
5 |
2.0 |
| 5000 (2268) |
9.8 (3.0) |
10 |
4.3 |
| 10000 (4536) |
6.6 (2.0) |
20 |
8.7 |
| 12000 (5443) |
3.3 (1.0) |
30 |
10.0 |
| 15000 (6804) |
1.6 (0.5) |
60 |
13.0 |
Product safety information
Manufacturer information:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Cable/Rope Type: |
Steel Cable |
| Brand: |
Warrior |
| Vehicle Type: |
Truck |
| Pulling Force max [lbs]: |
15000 |
| Gear Transmission: |
33,4:1 |
| Rope Diameter [mm]: |
12 |
| Rope Length [m]: |
26,5 |
| Drum Size [Dia x L in mm]: |
89 x 217 |
| Length [mm]: |
554 |
| Width [mm]: |
226 |
| Height [mm]: |
262 |
| Weight [kg]: |
68,8 |
| Mount-Pattern [mm]: |
254 x 114,3 |
| Linespeed max [ft/min]: |
19,7 |
| Linespeed min [ft/min]: |
1,6 |
| Drive Type: |
hydraulic |
| Shipping weight: |
68,85 kg
|
| Item weight: |
67,00 kg
|
| Dimensions
( Length × Width × Height ):
|
55,40 × 22,60 × 26,20 cm |
