warrior jp industry hydraulic winch 10.0 t

warrior jp industry hydraulic winch 10.0 t

SKU: 10JP01H
GTIN: 5060423982876
HAN: 10JP01H
Category: Hydraulic Winches

3.669,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 2 - 3 weeks (DE - int. shipments may differ)

piece

This bundle is now in the shopping cart.

Discount with Bundle:

This bundle promotion cannot be combined with other coupon promotions.

warrior jp industry hydraulic winch 10.0 t

Set hydraulics operation radio+cable 24v

Your Savings: 198,50 €

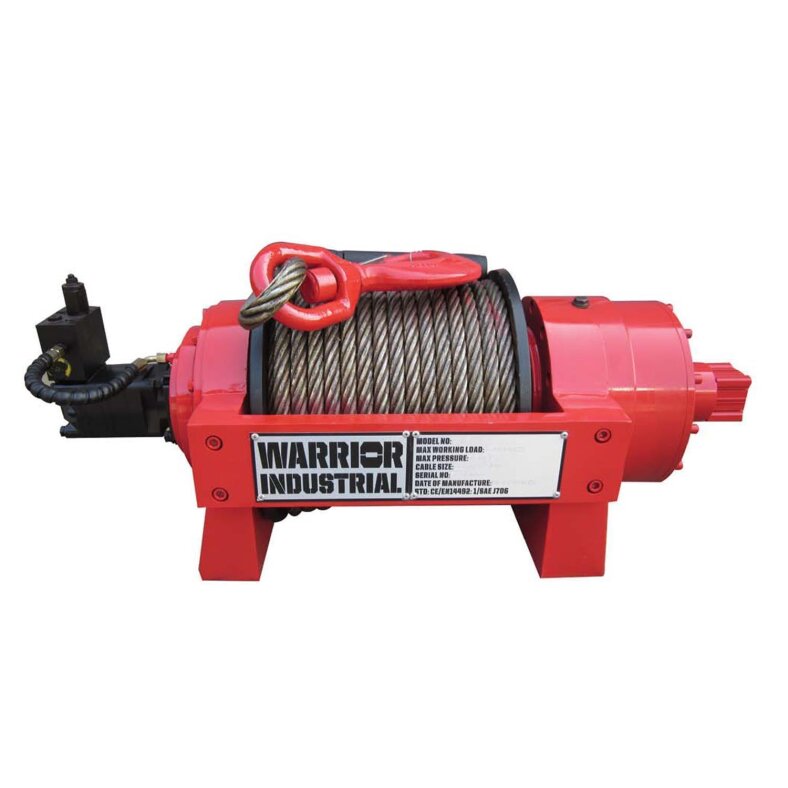

Warrior hydraulic winch jp10 10t

Rugged and compact, the jp series has been designed and tested for the toughest applications.
A superb heavy duty winch that comes complete with counterbalance valve, cable and heavy duty tensioner.
Standard features include an air operated clutch, high precision 2 stage planetary gearbox and a robust high torque motor.
The ultimate hydraulic winch for heavy duty recovery and commercial applications.Available from 9t to 25t.
Manufactured to meet the requirements of en 14492 : 1.

Standard features

Full sliding heavy duty planetary gearbox
Multi-disc friction brake
High torque industrial motor
pneumatic overrunning clutch

Outstanding features

Heavy duty rope tensioner standard
Minimum 10:1 rope/drum ratio
Compensating valve as standard

Included in delivery:

Balancing valve
Safety hook
Rope contact window
Steel rope

Specifications

Rated pulling force: 10.000 kg
Gear ratio: 39:1

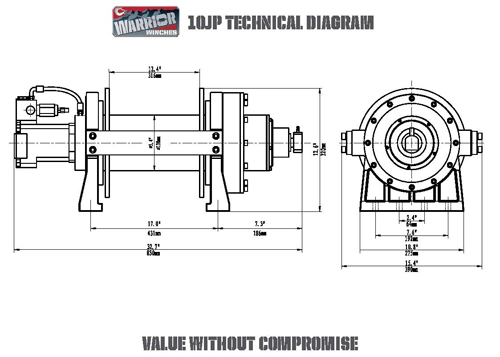

Mounting pattern: 431 x 64/192 mm
Drum size (mm): 138 x 316
Rope size: 48m x 15mm
Weight: 165kg

Rope layer	Tractive force
	lbs / kg

1	22046 / 10000
2	16889 / 7661
3 4	14615 / 6630 12881 / 5843


Traction	Traction speed		Pressure Mpa	Flow l / min
lbs / kg	ft / min	m / min

0	5,9	1,8	25	15
4000 / 1814	11,7	3,6	42	30
8000 / 3629 15000 / 6804 22046 /10000	19,6 23,6 29,7	6,0 7,2 9,0	85 140 175	50 60 75

Cable/Rope Type:	Steel Cable
Vehicle Type:	Truck Others
Drive Type:	hydraulic
Special Features:	weatherproof
Brand:	Warrior®
Cable/Rope Length:	above 30 m
Price:	above 2000 EUR
Line Pull:	above 8 t
Shipping weight:	170,00 kg
Item weight:	165,00 kg
Dimensions ( Length × Width × Height ):	83,00 × 39,00 × 32,00 cm
