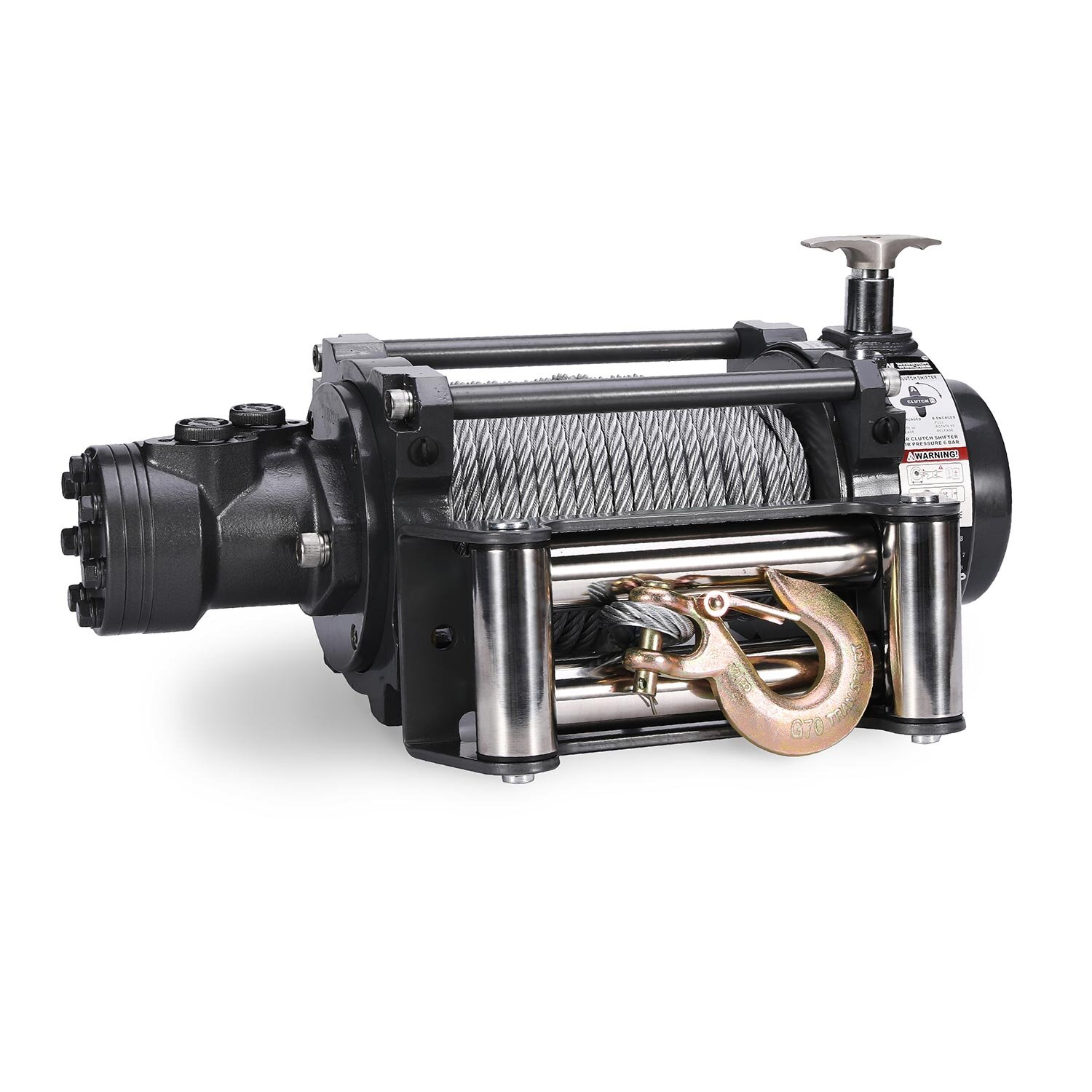

Warrior C10000NH hydraulic winch
Compact, robust. A hydraulic winch for industrial and commercial applications. The unique patented steel gear system combined with a highly efficient and powerful hydraulic motor ensures maximum performance across the entire load range. Complete with internal brake to ensure maximum control and load retention. Stainless steel roller guides and hardware are standard.
Standard Features:
? Traction Capacity : 10,000 lb (4,536 kg)
? Rope : 26.5 m of 10.2 mm steel rope with clevis hook
? Motor : Hydraulic dispensing 50 ml/r
? Gearbox : Freewheel clutch – Allows manual unwinding of the cable
? Mounting Plate : Available as an optional extra
? Guide Rope : Heavy-duty 4-way roller rope
? Mounting Screws : Included for standard installations
Plus includes:
? Owner's Manual
Other Information:

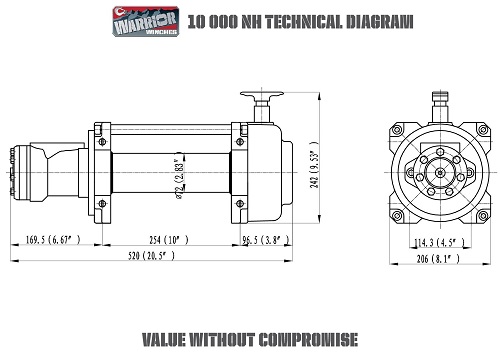

? Dimensions : 510mm L x 186mm D x 224mm H (Dimensions shown assume electrical package is remotely mounted)
? Mounting Bolt Pattern : 254mm x 114.3mm
? Approx. Shipping weight : 55 kg
? Cable pull - no load : 2.8 m/min (20 l/min at 25 bar)
? Cable pull - full load : 7.6 m/min (50 l/min at 130 bar)
While every effort has been made to ensure the accuracy of the information on this product, in the interest of technical improvement, this specification is subject to change without notice.
| Layer of Rope/Cable |
Line Pull: lbs(kgs) |
Rope on Drum ft(m) |
| 1 |
10000 (4536) |
16.4 (5.0) |
| 2 |
8012 (3634) |
37.2 (11.3) |
| 3 |
6683 (3031) |
60.9 (18.6) |
| 4 |
5732 (2600) |
83.7 (25.5) |
Line Pull
lbs (kgs) |
Line Speed
ft/min (m/min) |
Flow
L/min (G/min) |
Pressure
Mpa |
| 0 |
17.4 (5.3) |
5 |
2.0 |
| 3000 (1361) |
15.1 (4.6) |
10 |
4.5 |
| 6000 (2722) |
8.9 (2.7) |
20 |
6.8 |
| 9000 (4082) |
4.6 (1.4) |
35 |
9.0 |
| 10000 (4536) |
2.3 (0.7) |
40 |
12.5 |
Product safety information
Manufacturer information:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Cable/Rope Type: |
Steel Cable |
| Brand: |
Warrior |
| Vehicle Type: |
Truck |
| Pulling Force max [lbs]: |
10000 |
| Gear Transmission: |
25,5:1 |
| Rope Diameter [mm]: |
10,2 |
| Rope Length [m]: |
25,5 |
| Drum Size [Dia x L in mm]: |
72 x 219 |
| Length [mm]: |
519 |
| Width [mm]: |
206 |
| Height [mm]: |
246 |
| Weight [kg]: |
53 |
| Mount-Pattern [mm]: |
254 x 114,3 |
| Linespeed max [ft/min]: |
17,4 |
| Linespeed min [ft/min]: |
2,3 |
| Drive Type: |
hydraulic |
| Shipping weight: |
55,00 kg
|
| Item weight: |
53,00 kg
|
| Dimensions
( Length × Width × Height ):
|
51,90 × 20,60 × 24,60 cm |
