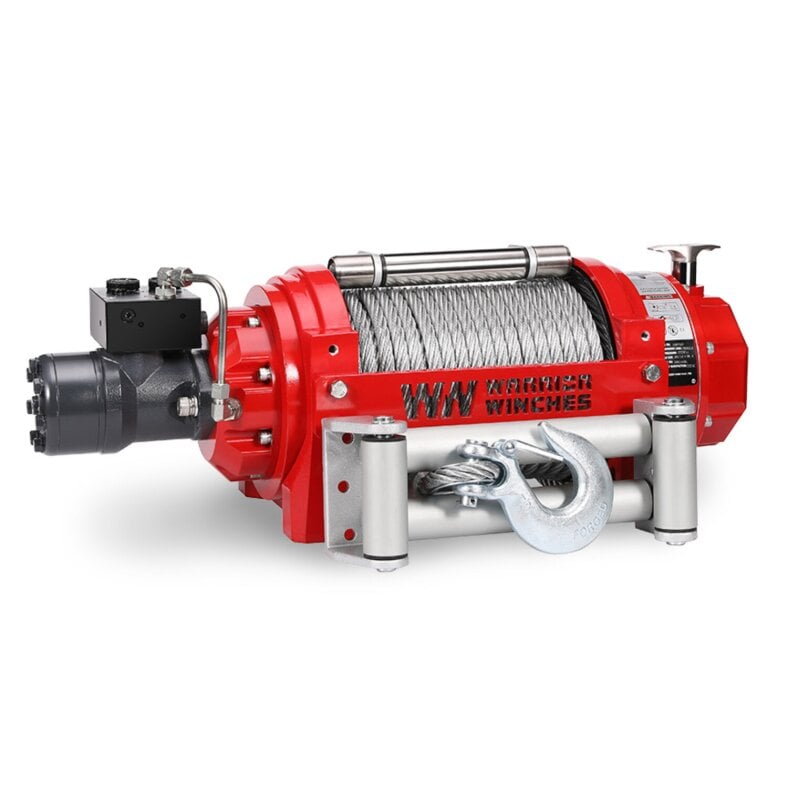

Warrior RV15000 6.8 Ton Hydraulic Winch
Designed and developed for the professional operator, the RV series winches are of the highest quality, meeting the requirements of EN 14492-1 and SAEJ-706, so you can rely on their safety and strength.
With a massive pulling force of 15,000 lb or 6.8 kg, the 10:1 drum to rope ratio also offers unbeatable power to get the job done in no time.
Equipped with a hydraulic motor and brake that can hold the full load, it is more than effective in getting any job done safely and easily. Ideal for tough commercial and industrial use - the job is sorted in no time.
Standard features:
? Pulling force : 6,804 kg (15,000 lb)
? Rope : Steel cable 10.2 mm x 30 m
? Motor : Hydraulic
? Gearbox : 17.3:1
Accessories:
? Wired hand control : Available as an optional extra
? Wireless control : Available as an optional extra
? Mounting plate : Available as an optional extra
? Rope guide : Roller rope guide included
? Fixing screws : Included for standard installations
Includes:
? Balancing valve
? Cable tensioner
? User manual
Other information:
? Dimensions : 735mm L x 300mm D x 277mm H
? Fixing bolt pattern : 303.5mm x 114.3mm
? Approx. Shipping weight : 83.6 kg
? Rope pull - no load : 7 m/min (290 amps)
? Rope pull - full load : 1.3 m/min (2,537 amps)
While every effort has been made to ensure the accuracy of the information on this product, in the interest of technical improvement, this specification is subject to change without notice.
| Layer of Rope/Cable |
Line Pull: lbs(kgs) |
Rope on Drum ft(m) |
| 1 |
15000(6804) |
29.5(9.0) |
| 2 |
12791(5807) |
65.6(20.0) |
| 3 |
11150(5062) |
98.4(30.0) |
Line Pull
lbs (kgs) |
Line Speed
ft/min (m/min) |
Flow
L/min (G/min) |
Pressure
Mpa |
| 0 |
23 (7) |
10 (2.6) |
2.0 (290) |
| 8000 (3629) |
16.7 (5.1) |
20 (5.2) |
9.2 (1337) |
| 10000 (4536) |
12.4 (3.8) |
30 (7.9) |
11.5 (1627) |
| 12000 (5448) |
8.5 (2.6) |
40 (10.4) |
14.0 (2030) |
| 15000 (6810) |
4.2 (1.3) |
60 (15.6) |
17.5 (2537) |
Product safety information
Manufacturer information:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Cable/Rope Type: |
Steel Cable |
| Application: |
Professional |
| Brand: |
Warrior |
| Vehicle Type: |
Car |
| Pulling Force max [lbs]: |
15000 |
| Gear Transmission: |
17,3:1 |
| Rope Diameter [mm]: |
12 |
| Rope Length [m]: |
30 |
| Drum Size [Dia x L in mm]: |
127 x 266 |
| Length [mm]: |
735 |
| Width [mm]: |
300 |
| Height [mm]: |
277 |
| Weight [kg]: |
83,6 |
| Mount-Pattern [mm]: |
303,5 x 114,3368,5 x 171,2 |
| Linespeed min [ft/min]: |
4,2 |
| Drive Type: |
hydraulic |
| Shipping weight: |
86,00 kg
|
| Item weight: |
83,60 kg
|
| Dimensions
( Length × Width × Height ):
|
73,50 × 30,00 × 27,70 cm |
