warrior jp industry hydraulic winch 13.5 t

warrior jp industry hydraulic winch 13.5 t

SKU: 13JP0IH
GTIN: 5060423981770
Category: Hydraulic Winches

4.779,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 13 - 15 Workdays (DE - int. shipments may differ)

piece

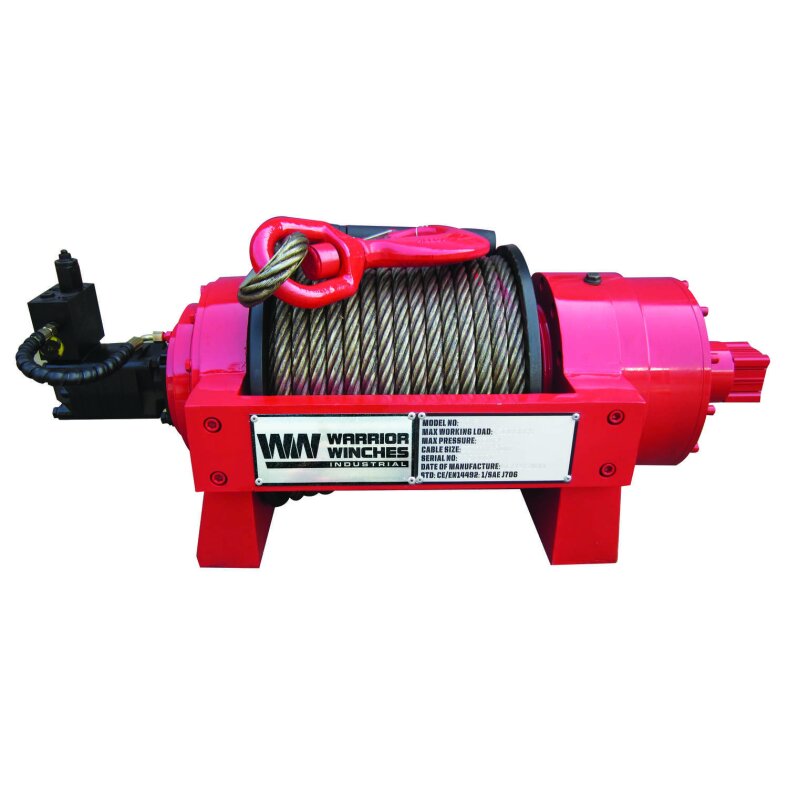

Warrior pj13 hydraulic winch 13.5t1

Rugged and compact, the jp series was designed and tested for the toughest applications.
Minimum drum to rope ratio of 10:1, multi-disc friction brake, equalizer valve,
and rope tensioner are standard features. Available from 9t to 25t. Manufactured to meet the
Requirements of en 14492 : 1.

Standard equipment

Full sliding heavy duty planetary gearbox
Multi-disc friction brake
High torque industrial motor
Air and manual clutch actuation

Outstanding features

Heavy duty rope tensioner standard
Minimum 10:1 rope to drum ratio
Balancing valve standard

Scope of delivery

Balancing valve
Safety hook
Rope contact window
Steel rope

Specifications

Rated pulling force: 13.500 kg
Working speed:
8.28m/min (5th rope layer, tractive force 8391 kg); 5.1 m/min (1st rope layer, tractive force 13,472 kg)
Working pressure max: 170 bar
Oil flow max: 60 L/min.
Drum size (mm): 190 x 340
Rope size: 50m x 18mm
Mounting pattern: 522 x 180/280 mm
Weight: 271kg

Line Pull:	above 8 t
Cable/Rope Length:	26 - 30 m
Cable/Rope Type:	Steel Cable
Price:	above 2000 EUR
Brand:	Warrior®
Vehicle Type:	Truck Others
Drive Type:	hydraulic
Special Features:	weatherproof
Shipping weight:	280,00 kg
Item weight:	271,00 kg
Dimensions ( Length × Width × Height ):	105,00 × 64,00 × 40,50 cm
