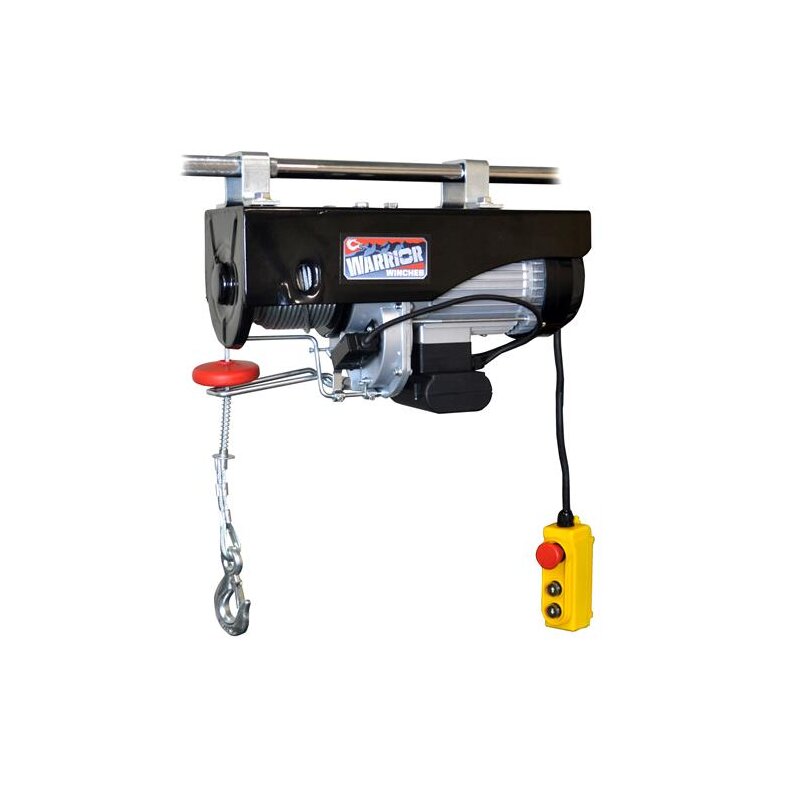

Warrior electric hoist 230v 500kg 8m/min
The compact design of the Warrior mini winch makes it a general purpose hoist for all kinds of lifting applications. With a dead weight of only 18kg, the small and lightweight wire rope hoist lifts 250kg on a single hoist up to 18m. The electric wire rope winch is easy to install - the stable, low-twist wire rope with a useful length of 18m can be replaced quickly and easily if necessary. The supplied clamps allow the mini cable winch to be attached to a wide variety of profile beams such as 4-sided beams or square tubes. This hoist has a high quality cable remote control with emergency stop (3m cable length) for the electrical input and output of the rope. The mini rope winch complies with bs en14492 directive by upper and lower limit switches and thermal overload protection for increased safety. The powder-coated housing of the electric wire rope hoist is protected against the ingress of dust and splash water and has protection class ip54. Optionally available with radio remote control. Thanks to the patented Air-Socket system, this can also be easily retrofitted if required.
Compact mini rope winch 230v buy cheap online
Warrior's lightweight yet durable cable winch is used on construction sites, in industrial sheds, but also in private gardens or homes to move large loads safely and quickly. Warrior's mini hoist features a lifting speed of 8m/min on the single hook and 4m/min on the double hook. The double hoist - thanks to the included pulley - allows lifting loads weighing up to 500kg to a height of 9m. Due to the automatic brake and the thermal overload protection, safe working is guaranteed.
The inexpensive mini cable winch and other electric winches, hoists and winch accessories you can buy in the online store of Seilwinden-Direkt.de
Technical specifications of warrior 220veh500 hoisting winch:
-
Voltage: 230v
-
Lifting capacity (E/D*): 250 / 500kg
-
Lifting height (E/D*): 18m / 9m
-
Lifting speed (E/D*): 8 - 4m/min.
-
Motor: 1050 watt 230v
-
Rope: 4mm x 18m
-
Protection class: IP54
-
Insulation protection class: B
-
Weight: 18 kg
-
Double safety cut-off switch: integrated
-
Sound power: 71 dB(A)
-
Clamp inside dimensions: approx. 45 x 45 mm
Fields of application:
- Construction site (e.g. building materials)
- Industrial hall (e.g. work pieces)
- Workshop (e.g. engine)
- Warehouse (e.g. goods)
- Freight elevator (e.g. shopping or firewood)
Features and advantages of the warrior winch 230v at a glance:
- Original Warrior® Product - Spare parts on demand from stock available
- Compact, light and powerful hoist
- No twisting of the load due to low twist steel cable
- Reliable and easy handling
- Safe operation: cable remote control with Emergency stop switch
- Motor with automatic brake in case of power supply interruption
- Thermo Overload protection
- fast, simple mounting (optional on ceilings, scaffolds or swivel arm)
- Housing: high-quality die-cast aluminum, powder-coated
- tested TÜV/GS quality
Scope of delivery:
- Hoist with 18m steel cable and hook pre-installed wound on drum
- Additional pulley with load hook and hook jaw safety device.
- Cable remote control with emergency stop switch with 3m cable length
- Square clamps with screws for mounting
- Mains cable with safety plug
*Single hoist/double hoist
*Please note interruption times before start-up: s3 20%-10 min, 2 min operation, 8 min break, one cycle every 10min
Product safety information
Manufacturer information:
Winch Solutions Ltd.
Unit 17-18 Unit 17-18
WN6 0XQ, Wigan, Vereinigtes Königreich
sales@bpeholdings.co.uk
https://winchsolutions.co.uk
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Max. Lifting height: |
1 - 20 m |
| Lifting speed: |
1 - 15 m / min |
| Voltage: |
230 V |
| Application: |
Private |
| Brand: |
Warrior |
| Lifting force (without deflection): |
101 - 250 kg |
| Radio remote control including: |
No |
| Shipping weight: |
17,50 kg
|
| Item weight: |
17,00 kg
|
| Dimensions
( Length × Width × Height ):
|
38,50 × 28,00 × 25,00 cm |
