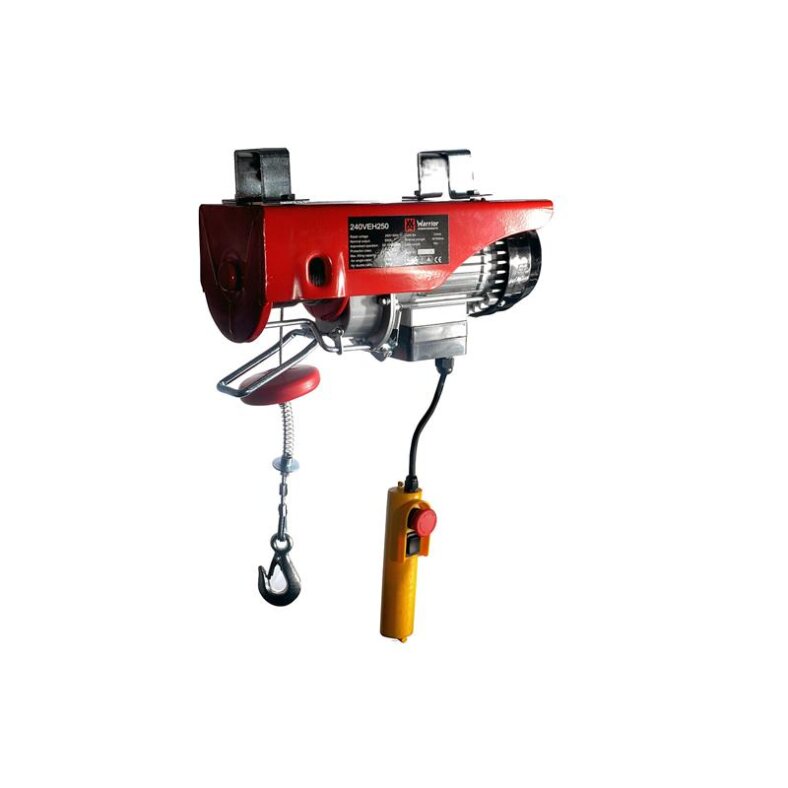

Low dead weight with maximum lifting capacity: The hoist from Warrior convinces with its robust design, performance and ease of use. In our online store you can buy this lightweight, high-quality electric wire rope hoist at the best price-performance ratio.
These are the advantages of the lightweight wire rope hoist from Warrior
The compact design of Warrior's mini cable winch makes it an all-purpose hoist for all kinds of lifting applications. With a dead weight of only 12 kg, the small and lightweight wire rope hoist lifts 125 kg up to a height of 18 m on a single hoist. The wire rope hoist is easy to install - the sturdy, low-twist wire rope with an effective length of 18 m can be replaced quickly and easily if necessary. The supplied clamps allow the mini cable winch to be attached to a wide variety of profile beams such as 4-sided beams or square tubes. This hoist has a high quality cable remote control with emergency stop (3m cable length) for the electrical input and output of the rope. The mini wire rope winch complies with bs en14492 directive by upper and lower limit switches and thermal overload protection for increased safety. The housing of the electric wire rope hoist is protected against ingress of dust and splash water and has IP54 protection class.
Compact mini rope winch 230v buy online cheap
Warrior's lightweight yet durable wire rope hoist is used on construction sites, industrial sheds, as well as in private gardens or homes to safely and quickly move large loads. Warrior's mini hoist features a lifting speed of 8m/min on the single hook and 4m/min on the double hook. The double hoist - thanks to the included pulley - allows lifting loads weighing up to 250 kg to a height of 9m. Due to the automatic brake and the thermal overload protection a safe working is guaranteed.
The inexpensive mini cable winch and other electric winches, hoists and winch accessories you can buy in the online store of Seilwinden-Direkt.de
Technical specifications of warrior 220veh250 hoisting winch:
Voltage: 230v
Load capacity (E/D*): 125 / 250kg
Lifting height (E/D*): 18m / 9m
Lifting speed (E/D*): 8 - 4m/min.
Motor: 500 watt 230v
Rope: 3mm x 18m
Protection class: IP54
Insulation protection class: B
Weight: 12kg
Double safety shutdown switch: integrated
Sound power: 71 dB(A)
Clamp internal dimensions: approx. 45 x 45 mm
Areas of application:
- Construction site (e.g. building materials)
- Industrial hall (e.g. work pieces)
- Workshop (e.g. engine)
- Warehouse (e.g. goods)
- Freight elevator (e.g. shopping or firewood)
Features and advantages of the warrior winch 230v at a glance:
- Original Warrior® Product - Spare parts on demand from stock available
- Compact, light and powerful hoist
- No twisting of the load due to low twist steel cable
- Reliable and easy handling
- Safe operation: remote control with Emergency stop switch
- Motor with automatic brake in case of power supply interruption
- Thermo Overload protection
- quick, simple mounting (optional on ceilings, scaffolds or swivel arm)
- Housing: high-quality die-cast aluminum, powder-coated
- tested TÜV/GS quality
Scope of delivery:
- Hoist with 18m steel cable and hook pre-installed wound on drum
- Additional pulley with load hook and hook jaw safety device.
- Cable remote control with emergency stop switch with 3m cable length
- Square clamps with screws for mounting
- Mains cable with safety plug
*Single hoist/double hoist
*Please note interruption times before commissioning: s3 20%-10 min, 2 min operation, 8 min pause, one cycle every 10min
