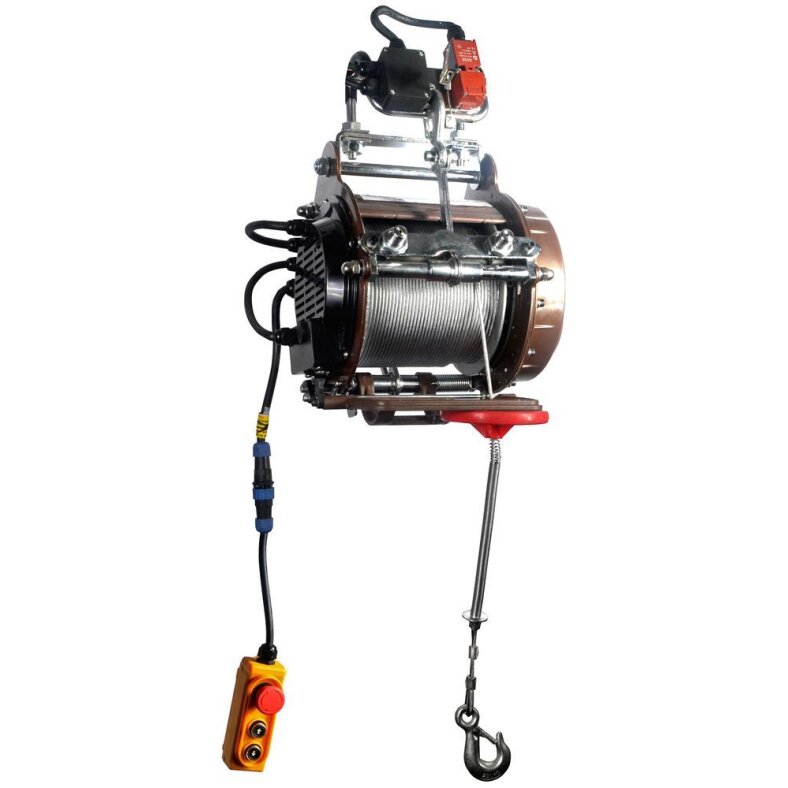

Warrior portable hoist electric wire rope winch for industry and home
Easy to attach to scaffolding with its unique design and elegant shape, it makes transporting construction materials etc to upper floors and roofs much easier and safer.
The hanging device with locking protection makes installation easier and ensures safe working.
The automatic rope rewind and direction change unit enables safe rope alignment with 30,000 times longer service life.
The ideal hoist for builders and roofers with up to 38 m usable rope length. The ideal lifting component for scaffolding and beams of all types.
High strength carbon construction with powder coating ensures reliable and durable lifting.
The hoist complies with en 14492:2 and uses a dynamic braking system for both static and dynamic loads with upper and lower limit switches.
A high quality thermal protection provides more safety in case of overload on the motor.
sPECIAL FEATURES:
- New patent from 2015
- TÜv/GS tested
- en standard 14492:2
- IP protection class: IP54
- Thermal protection
- Emergency stop operation
- dynamic braking system
- automatic rope rewinding (prevents crushing and dirt on the steel rope)
- Quick coupling for immediate use
- Hanging device with locking protection
Item features:
operating voltage |
220 v / 50 Hz |
Power |
1000 W |
Max lifting capacity without pulley |
250 kg |
Max. Lifting capacity with pulley |
500 kg |
Rope Ø / length (steel with swivel hook) |
4.0 mm x 38 m |
Lifting speed (o./m. deflection) |
8/4 m/min. (without load) |
braking system |
dynamic |
Safety switch |
upper and lower limit |
IP protection class |
IP54 |
Cable remote control |
with emergency stop switch included |
Cable length control unit |
4,0 m |
Dimensions (l x w x h) |
300 mm x 300 mm x 400 mm |
Net weight |
29 kg |
Rated current |
4.3A |
Motor category |
M1 |
Tensile strength |
1870 N/mm² |
Dropout times* |
s3 20%-10 min. |
Sound pressure level |
71 dbA |
*please observe interruption times before start-up: s3 20%-10 min, 2 min operation, 8 min pause, one cycle every 10min
