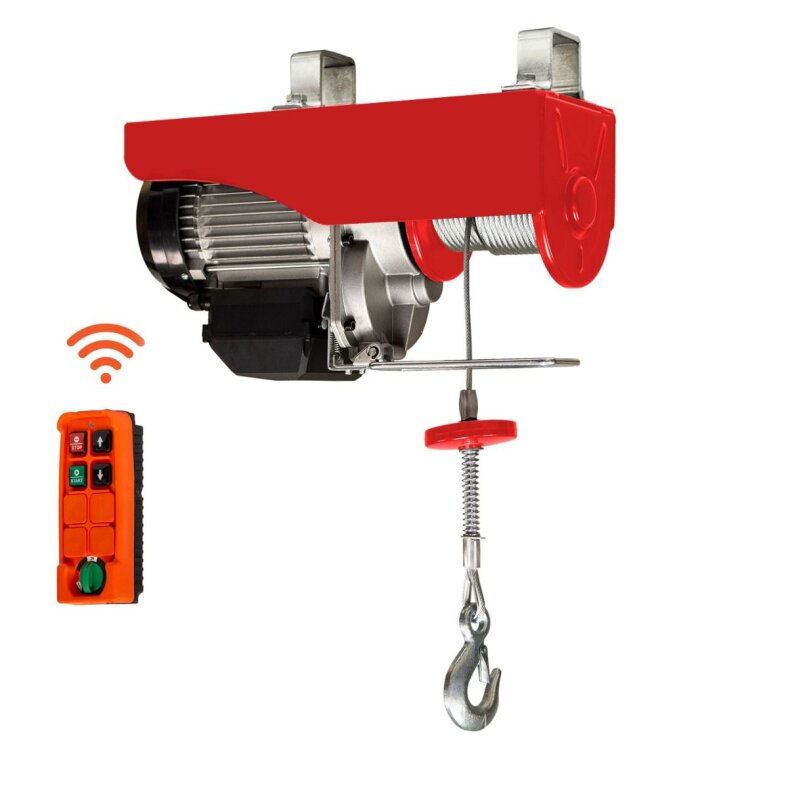

Electric hoist winch 230v 200/400kg 8m/min
The compact design of the mini wire rope winch makes the professional wire rope hoist an all-purpose device for all kinds of lifting applications. With a dead weight of only 16 kg, the small and light rope hoist even lifts 200 kg up to a height of 18 m on a single hoist. The electric wire rope winch is easy to install - the stable, low-twist wire rope with a useful length of 18m can be replaced quickly and easily if necessary. The supplied clamps allow the mini cable winch to be attached to a wide variety of profile beams such as 4-sided beams or square tubes. This hoist has a high quality and professional radio remote control with emergency stop for electric rope input and output. The mini rope winch complies with bs en14492 by upper and lower limit switches and thermal overload protection for increased safety. The powder-coated housing of the electric wire rope hoist is protected against the ingress of dust and splash water and has a protection class of IP54.
Compact mini rope winch 230v buy cheap online at seilwinden-direkt.de
The lightweight yet durable cable winch is used on construction sites, in industrial halls, but also in private gardens or homes to safely and quickly move large loads. The mini cable winch features a lifting speed of up to 8m/min on the single hook and 4m/min on the double hook. The double hoist - thanks to the included pulley - allows lifting loads weighing up to 400kg to a height of 9m. Due to the automatic brake and the thermal overload protection, safe working is guaranteed.
The inexpensive mini cable winch and other electric winches, hoists and winch accessories you can buy in the online store of Seilwinden-Direkt.de
Technical specifications of l-200-wrc hoisting winch:
-
Voltage: 230v
-
Lifting capacity (E/D*): 200 / 400kg
-
Lifting height (E/D*): 18m / 9m
-
Lifting speed (E/D*): 8/4 m/min.
-
Motor: 750 watt 230v
-
Rope: 3.8mm x 18m
-
Protection class: IP54
-
Insulation protection class: B
-
Weight: 16 kg
-
Double safety cut-off switch: integrated
-
Sound power: 71 dB(A)
-
Clamp inside dimensions: approx. 40 x 45 mm (4x M8)
Fields of application:
- Construction site (e.g. building materials)
- Industrial hall (e.g. work pieces)
- Workshop (e.g. engine)
- Warehouse (e.g. goods)
- Freight elevator (e.g. shopping or firewood)
Features and advantages of the professional rope winch 230v at a glance:
-
Spare parts on demand from stock available
- Compact, lightweight and powerful hoist
- No twisting of the load due to low twist steel cable
- Reliable and easy handling
- Safe operation with professional radio remote control
- Motor with automatic brake in case of power supply interruption
- Thermo Overload protection
- quick, simple mounting (optional on ceilings, scaffolds or swivel arm)
- Housing: high-quality die-cast aluminum, powder-coated
- tested TÜV/GS quality
Scope of delivery:
- Hoist with 18m steel cable and hook pre-installed wound on drum
- Additional pulley with load hook and hook jaw safety device.
- Professional radio remote control (battery 2x aa 1,5v - range approx. 30-40m)
- Square clamps with screws for mounting
- Power cable with safety plug
*Single hoist/double hoist
*Please note interruption times at full load before commissioning: s3 25%-10 min, 2.5 minutes continuous operation, 7.5 minutes pause (cycle 10 minutes)
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Max. Lifting height: |
1 - 20 m |
| Lifting speed: |
1 - 15 m / min |
| Voltage: |
230 V |
| Application: |
PrivateCommercial |
| Radio remote control including: |
Yes |
| Lifting force (without deflection): |
101 - 250 kg |
| Shipping weight: |
16,50 kg
|
| Item weight: |
16,00 kg
|
| Dimensions
( Length × Width × Height ):
|
42,00 × 14,60 × 17,40 cm |
