Professional hoist warrior 250/500 kg 230 v wire rope hoist with radio remote control

Professional hoist warrior 250/500 kg 230 v wire rope hoist with radio remote control

(1 Reviews)

SKU: 220EHA500-01
Category: Winches

18m rope length, incl. radio remote control, hoist tüv/gs approved, according to en 14492:1

349,99 €

incl. 19% VAT , plus

Old price: 449,99 €

Manufacturers recommended retail price: 449,99 €

(Save 22.22%, i.e. 100,00 €)

Currently out of stock

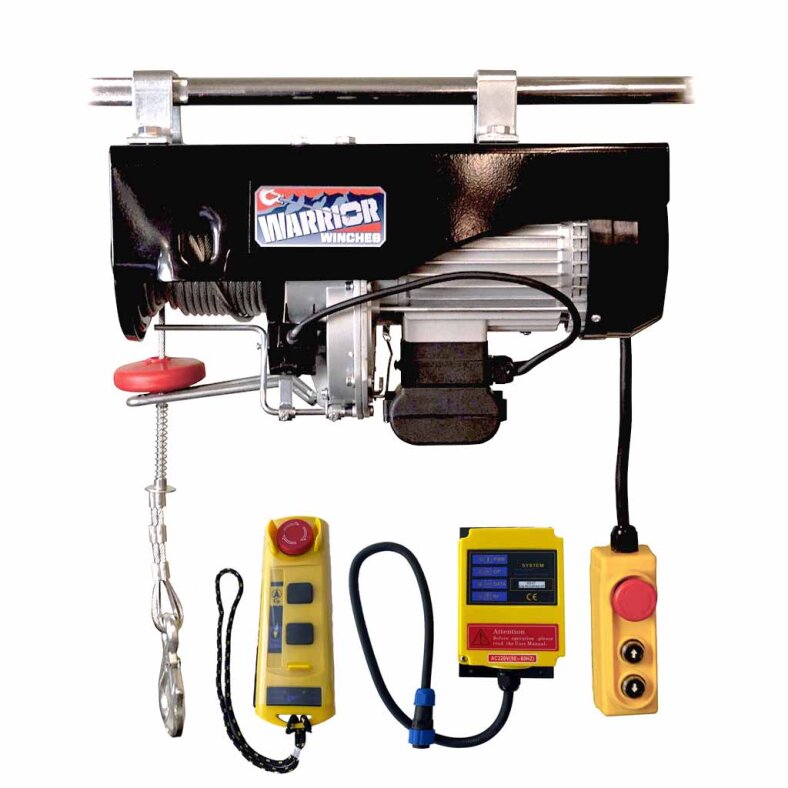

Warrior electric hoist 230V incl. radio remote control

New 2016 design. Compact design makes it a general purpose device for all kinds of lifting applications.
Easy to install, with the possibility to quickly replace the rope. Complete with special fixed clamps for a wide variety of profile beams (4-sided beams).
This hoist provides an emergency stop control with 3 m cable length for the electrical input and output of the rope.
Meets bs en14492 directive with upper and lower limit switches and thermal overload protection for increased safety.
IP54 protection class.

In addition, this unit also includes a wireless radio remote control with transmitter (part number: WWACWRC240-AS)
This can be easily and quickly connected by means of a screw cap (patented Air-Socket system).

Technical specifications:

Voltage: 230V
Max load (E/D*): 250 / 500kg
Lifting height (E/D*): 18m / 9m
Lifting speed (E/D*): 8 - 4m/min.
Motor: 1050 Watt 230V
Rope: 4mm x 18m
Protection class: IP54
Weight: 18kg
Double safety cut-off switch: integrated
Sound pressure level: 71 dB(A)
Clamp internal dimensions: approx. 45 x 45 mm

Features and benefits:

Compact, powerful hoist
Original Warrior® Product
Housing color: black
Voltage 230 v, 1050 watts
No twisting due to low twist steel cable
Reliable and easy handling
Safe operation: remote control with Emergency stop switch
Motor with automatic brake in case of power supply interruption
Easy to assemble
quick mounting/fixing either to ceilings, scaffolding or swivel arm
Control switch protection class 2
Insulation class B
Housing: high-quality die-cast aluminum, powder-coated
tested TÜV/GS quality
Scope of delivery: hoist incl. pulley with load hook and spring shackle, cable remote control (3m), radio remote control WWACWRC240-AS

*Single hoist/double hoist

*Please note interruption times before commissioning: s3 20%-10 min, 2 min operation, 8 min pause, one cycle every 10min

Lifting force (without deflection):	101 - 250 kg
Max. Lifting height:	1 - 20 m
Lifting speed:	1 - 15 m / min
Voltage:	230 V
Application:	Private
Brand:	Warrior
Radio remote control including:	Yes
Shipping weight:	17,70 kg
Item weight:	17,20 kg
Dimensions ( Length × Width × Height ):	38,50 × 28,00 × 25,00 cm
