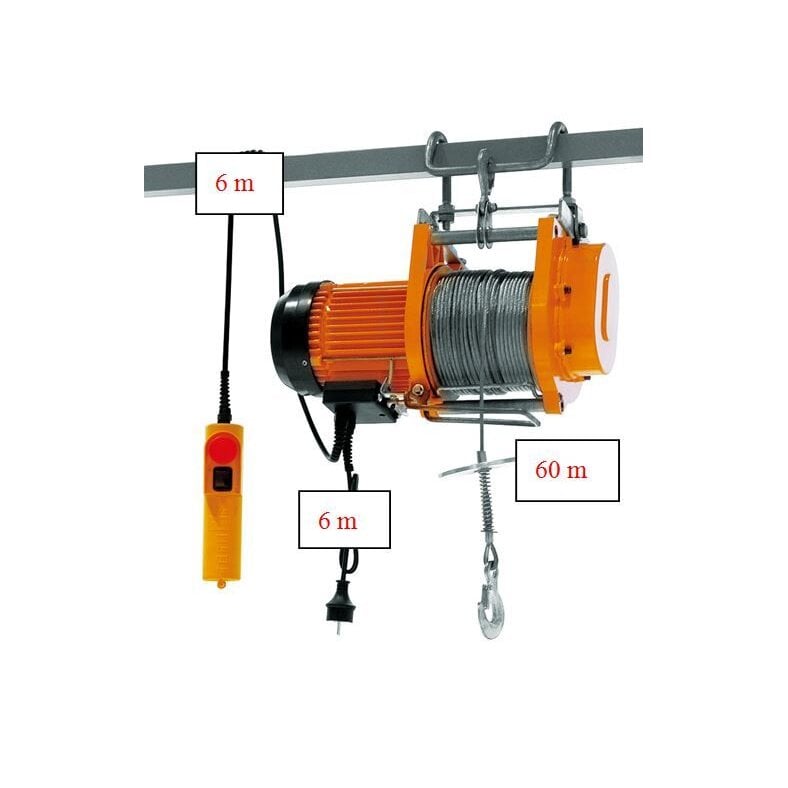

The professional wire rope hoist L-250-CRC-60 230V is the optimal solution for efficient lifting in professional applications.
With a rated load capacity of 250 kg and a lifting height of 60 m, it offers maximum performance and safety.
The extra-long 6 m power cable and 6 m control cable make operation considerably easier.
Weighing only 31.5 kg, the electric wire rope hoist is easy and flexible to install.
The L-250-CRC-60 electric wire rope hoist is equipped with a wide range of features, making it ideal for use across various industries.
Its key specifications include:
- Voltage: 230 V, 50 Hz
- Rated current (A): 5.7
- Rated power input (W): 1300
- Rated load capacity (kg): 250
- Lifting height (m): 60
- Rated lifting speed (m/min): 15
- Wire rope diameter (mm): 5.1
- Wire rope tensile strength (N/mm²): ≥1870
- Insulation class: B
- Protection class: IP54
- Duty cycle: S3 40% – 10 min
- Mechanism group: M1
- Recommended tube diameter (mm): 40–50 (for suspension)
- Net weight (kg): 31
The hoist is supplied complete with a 6 m control cable and 6 m power cable for easy operation and installation.
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
