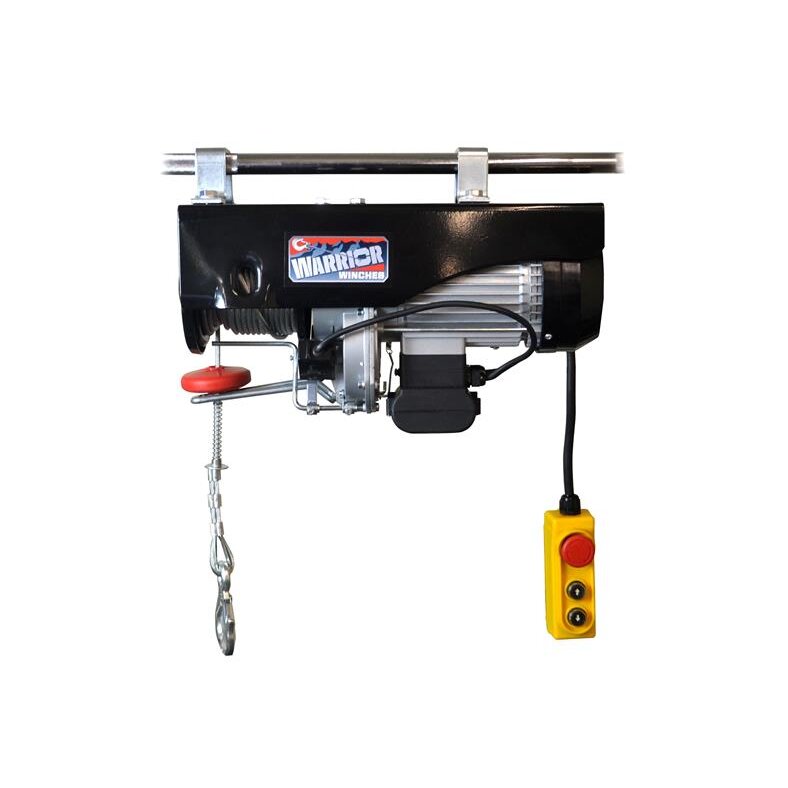

Warrior Electric Hoist 230v 240VEHA1000
New 2016 Design. Compact design makes it a general purpose hoist for all kinds of lifting applications.
Easy to install, with the possibility to quickly replace the rope. Complete with special fixed clamps for a wide range of profile beams (4-sided beams).
This hoist provides an emergency stop control with 3 m cable length for the electrical input and output of the rope.
Meets bs en14492 directive with upper and lower limit switches and thermal overload protection for increased safety.
IP54 protection class.
This hoist offers the possibility to connect a wireless remote control as an option (order under part number: WWACWRC240-AS)
Technical Specifications:
-
Voltage: 230v
-
Max load (E/D*): 500 / 999kg
-
Lifting height (E/D*): 18m / 9m
-
Lifting speed (E/D*): 8 / 4m/min.
-
Motor: 1600 watt 230v
-
Rope: 5mm x 18m
-
Protection class: IP54
-
Weight: 32kg
-
Double safety cut-off switch: integrated
-
Internal dimensions mounting bracket: 6 x 6 cm
-
Clamp internal dimensions: approx. 60 x 60 mm
Features and benefits:
- Compact, powerful hoist
- Original Warrior® Product
- Color: black
- Voltage 230 v, 1600 watts
- No twisting due to low twist steel cable
- Reliable and easy handling
- Safe operation: remote control with Emergency stop switch
- Motor with automatic brake in case of power supply interruption
- Easy to assemble
- quick mounting/fixing either to ceilings, scaffolding or swivel arm
- Control switch protection class 2
- Insulation class B
- Housing: high-quality die-cast aluminum, powder-coated
- tested TÜV/GS quality
- Scope of delivery: hoist incl. pulley with load hook and spring shackle.
*Single hoist/double hoist
*Please note interruption times before start-up: s3 20%-10 min, 2 min operation, 8 min break, one cycle every 10min
Product safety information
Manufacturer information:
Winch Solutions Ltd.
Unit 17-18 Unit 17-18
WN6 0XQ, Wigan, Vereinigtes Königreich
sales@bpeholdings.co.uk
https://winchsolutions.co.uk
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Max. Lifting height: |
1 - 20 m |
| Lifting speed: |
1 - 15 m / min |
| Voltage: |
230 V |
| Application: |
Private |
| Brand: |
Warrior |
| Radio remote control including: |
No |
| Lifting force (without deflection): |
501 - 1000 kg |
| Shipping weight: |
35,00 kg
|
| Item weight: |
35,00 kg
|
| Dimensions
( Length × Width × Height ):
|
48,00 × 17,00 × 30,00 cm |
