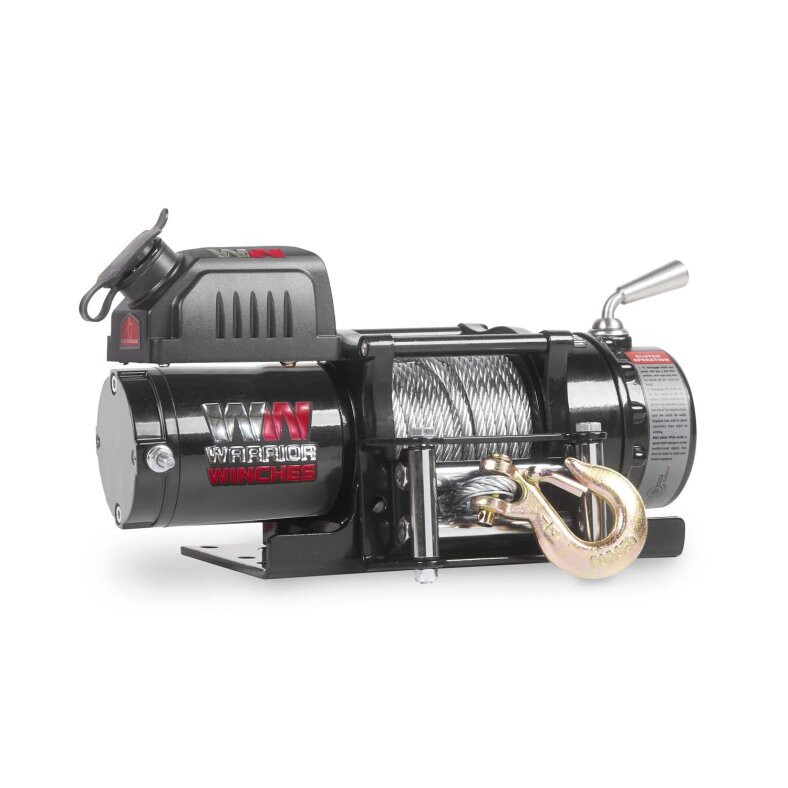

Warrior Ninja 4500lb Winch
The popular C4500 EWX has been re-upgraded to be even better and has been relaunched as the Warrior Ninja 4500. With the same high-quality features, the new Ninja is even better. With no competitors on the market and no comparable strength, the Ninja is a truly outstanding offering thanks to its heavy-duty clutch and recently added 4-pin air socket and redesigned solenoid control package.
Built to last, the Ninja is equipped with life-extending, strengthening features such as a chip-resistant paint finish, reinforced steel drum and three-stage all-steel planetary gear, making it one of the smoothest and quietest winches on the market.
Also protected for all weather conditions, both the controller socket and contactors are waterproof. Powered by a sealed heavy-duty motor and with the choice of steel or synthetic cable without compromising on strength, you can rely on this heavy-duty winch.
With a massive 4500 lb or 2014 kg pulling force and a pull of 1.5 m per minute at full load, you can get the job done with ease.
Standard Features:
-
Pulling Force : 4,500 lb (2041 kg)
-
Gearbox: Freewheel Clutch - Allows manual unwinding of the cable
Accessories:
-
Wired Hand Control: 10 ft. wired hand control with Air Socket Connector
-
Wireless Control: Available as an optional extra
-
Mounting Plate: Included for standard installations
-
Mounting Screws: Included for standard installations
- Heavy Duty Battery Cables (may need to be extended depending on application)
- Instruction Manual
Other Information:
-
Dimensions: 360mm L x 126mm D x 165mm H
-
Mounting Pattern Hole Pattern: 129 x 96mm
-
Rope Pull - No Load: 3.6 m/min (20 amps)
-
Rope Pull - Full Load: 1.5 m/min (200 Ampere)
Note: For most applications, the synthetic rope supplied with this winch must be removed from the drum, passed through the fairlead after assembly, and then the cable rewound onto the drum. A fixed hook will not (and should not) be passed through the fairlead.
While every effort has been made to ensure the accuracy of the information on this product, in the interest of technical improvement, this specification is subject to change without notice.
| Layer of Rope/Cable | Line Pull: lbs(kgs) |
| 1 | 4500 (2041) |
| 2 | 3642 (1652) |
| 3 | 3060 (1388) |
| 4 | 2638 (1196) |
Line Pull
lbs (kgs) | Line Speed 12v
ft/min (m/min) | Amp Draw (A)
12v | Amp Draw (A)
24v |
| 0 | 11.6 (3.6) | 20 | 15 |
| 1500 (680) | 9.2 (2.8) | 70 | 40 |
| 2500 (1134) | 7.8 (2.4) | 100 | 65 |
| 3500 (1587) | 6.6 (2.0) | 140 | 80 |
| 4500 (2041) | 4.9 (1.5) | 200 | 130 |
Product safety information
Manufacturer information:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Cable/Rope Type: |
Steel Cable |
| Application: |
Private |
| Brand: |
Warrior |
| Vehicle Type: |
ATV/Quad |
| Pulling Force max [lbs]: |
4500 |
| Voltage [V]: |
12 |
| Gear Transmission: |
172:1 |
| Rope Diameter [mm]: |
6 |
| Rope Length [m]: |
14,5 |
| Drum Size [Dia x L in mm]: |
45 x 93 |
| Length [mm]: |
378 |
| Width [mm]: |
126 |
| Height [mm]: |
200 |
| Weight [kg]: |
13 |
| Mount-Pattern [mm]: |
129 x 96 |
| max Amp [A]: |
200 |
| Linespeed max [ft/min]: |
11,6 |
| Linespeed min [ft/min]: |
4,9 |
| Drive Type: |
electric |
| Shipping weight: |
14,00 kg
|
| Item weight: |
13,00 kg
|
| Dimensions
( Length × Width × Height ):
|
37,80 × 12,60 × 20,00 cm |
