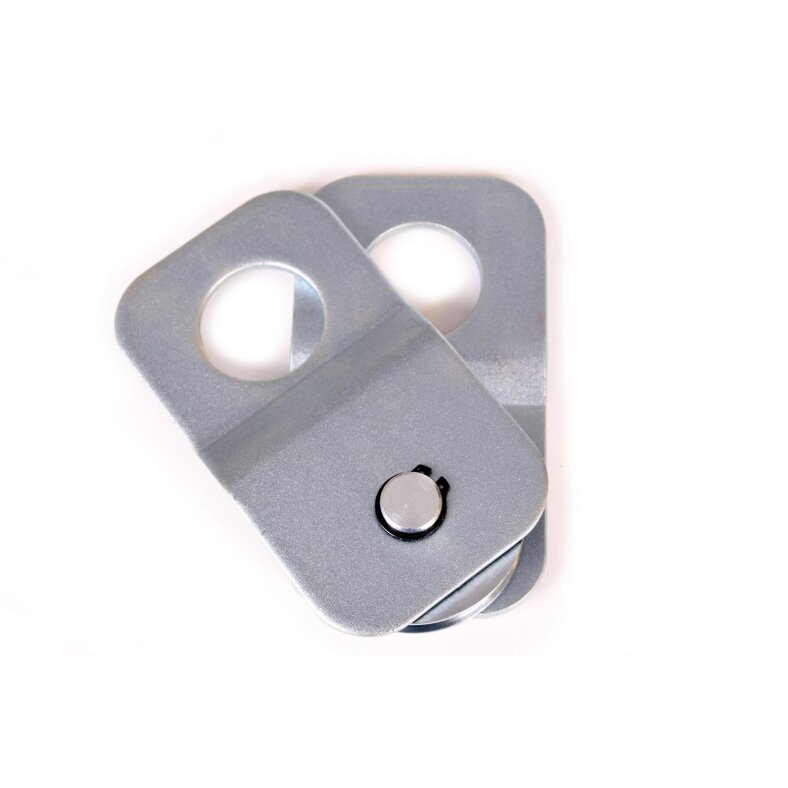

Pulley from Black Motion ®
This pulley from Black Motion ® is based on the pulley principle. The pulling force of a winch can be doubled with it, because the occurring pulling forces during towing or pulling are halved as with a pulley.
You should use this practical tool from half to 2/3 of the maximum load to protect your winch.
Despite the sturdy construction and the associated breaking load of maximum 4 tons, this pulley weighs just 1 kg.
Due to the housing made of robust steel, it is also weatherproof and extremely resilient.
Due to the smooth surface and the low play, this pulley is suitable for wire/steel ropes as well as for synthetic/plastic ropes up to a diameter of max. 10 mm.
Versatile use e.g. in the fields of:
- Vehicle recovery
- Towing
- Offroad
- Vehicle self-recovery
- Forestry
Item features:
- Breaking load up to 4 tons (4,000 kg)
- Compact and stable construction (also suitable for continuous use)
- Suitable for steel and plastic rope (rope diameter: max. 10 mm)
- Doubles the pulling force of your cable winch.
- easy operation/ installation
- Already mounted
Dimensions and weight:
-
Pulley diameter: 65 mm
-
Dimensions: l: 148 mm, w: 80 mm, h: 25 mm
-
Roller opening: 38 mm
-
Pin diameter: 20 mm
-
Weight: 1 kg
Do not take any risks and rely on quality from the expert for winches and winch accessories.
Tip from the expert: For deflections via pulleys, the radius of the pulleys should not be smaller than twice the rope diameter!
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Gutenbergstraße 4
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Gutenbergstraße 4
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
| Brand: |
Black Motion® |
| Line Pull: |
3,1 - 4 t |
| Shipping weight: |
1,02 kg
|
| Item weight: |
1,02 kg
|
| Dimensions
( Length × Width × Height ):
|
15,00 × 3,50 × 8,00 cm |
