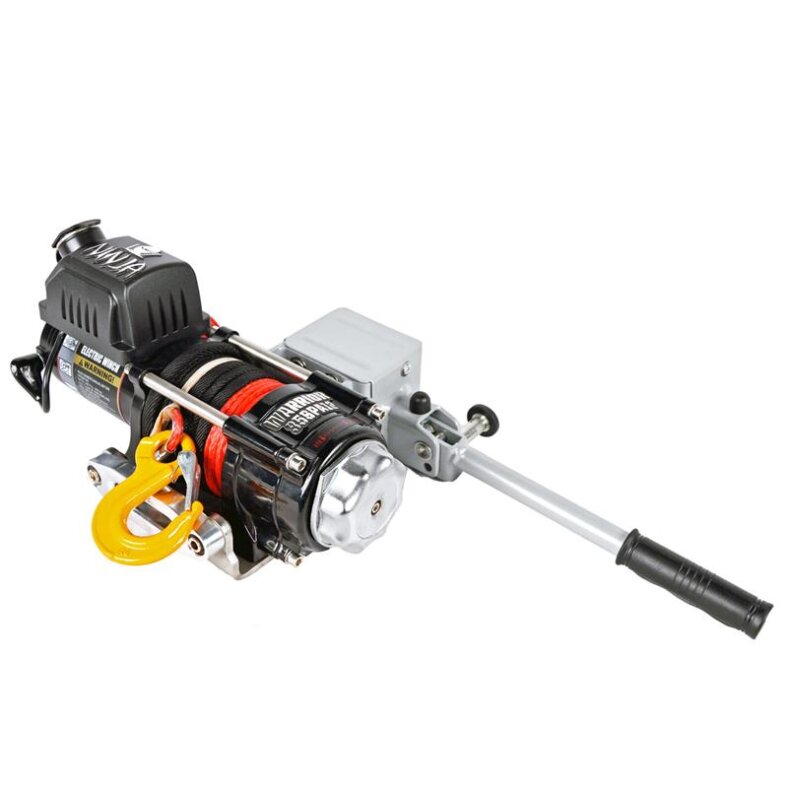

Single arm trailer hitch set incl. electric winch
warrior ninja 3500 1,6t 12V plastic rope
With only one hand movement this quick system is placed on the trailer hitch. Ideal for large aTVs and small trailers.
equipped with the powerful and reliable Warrior ninja 3500 with armortek plastic rope.
A large 1.95 hp motor, heavy duty clutch, steel gearbox and waterproof connectors deliver the ultimate in performance and reliability. Complete with mounting plate.
Standard equipment winch:
- Pulling force: 3,500lb (1,588kg)
- Rope: 15m length Ø5mm plastic rope with g80 3/8 clevis hook
- Engine: efficient 1.95 ps/1.37 kw 12 V
waterproof connectors
allows electric pulling in and out of the rope
- Gear ratio: 170:1
- brake: dynamic
Accessories winch:
- Cable remote control: included (3m cable length)/ alternatively with handlebar control*
- Rope window: aluminum rope window
- Pulley: 3t
- mounting screws: included (for standard mounting)
- battery cable: Length 1.5 m (need to be extended depending on application)
- instruction manual
- Mounting plate: included
More information about the winch:
- dimensions (l x w x h): 348mm x 116mm x 165mm
- Drum size: 37 x 80mm
- Hole pattern/drill pattern: 124mm x 76mm
- approx. weight winch: 9kg
Delivery is in 2 packages.
Assembly required.
| Rope layer |
|
Tensile force |
| Plastic rope |
lbs / kg |
| |
|
|
1 |
|
3500 / 1588 |
2 |
|
2789 / 1265 |
3 |
|
2319 / 1052 |
4 |
|
1984 / 900 |
5 |
|
1733 / 786 |
| Tractive force |
|
Traction speed |
|
Power consumption ( a ) |
| lbs / kg |
|
ft / min |
m / min |
|
12 V |
| |
|
|
|
|
|
| 0 |
|
10,5 |
3,2 |
|
45 |
| 1000 / 454 |
|
8,9 |
2,7 |
|
75 |
| 2000 / 907 |
|
7,5 |
2,3 |
|
130 |
| 3500 / 1588 |
4,6 |
1,4 |
|
200 |
