Boat winch electric winch boat trailer trailer warrior ninja 2500lb a 1.1 t 12 v plastic rope

Boat winch electric winch boat trailer trailer warrior ninja 2500lb a 1.1 t 12 v plastic rope

SKU: WBW25SPA12
GTIN: 4260357363784
Category: Winches

199,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

piece

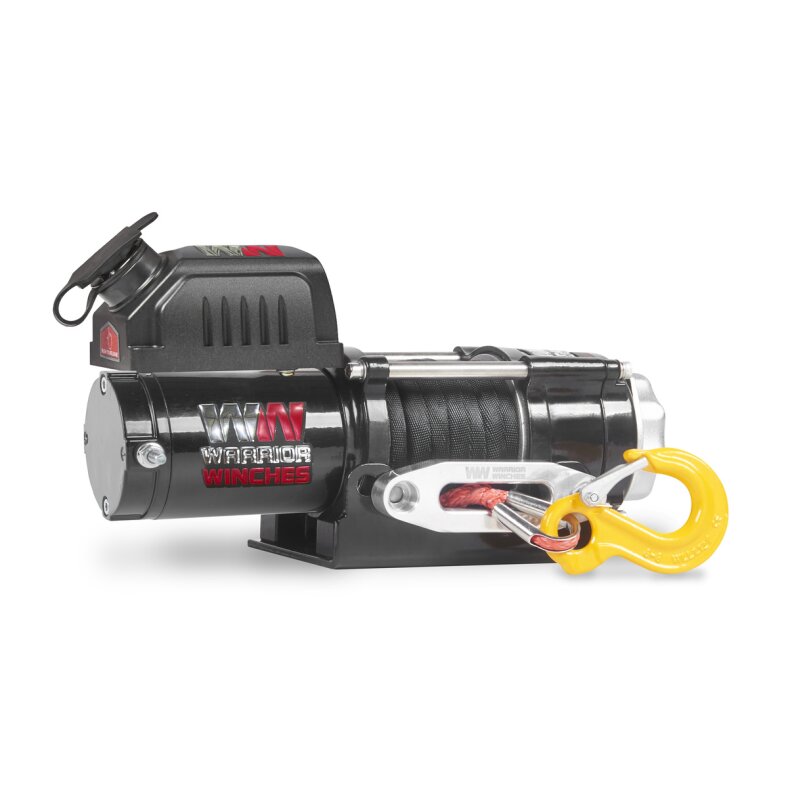

Excellent utility winch. The Warrior ninja 2500a with armortek plastic rope. A large 1.35 hp motor, heavy duty clutch, steel gearbox and waterproof connectors deliver the ultimate in performance and reliability. Complete with mounting plate for flat mounting or alternative ball head mounting.

Standard equipment:

Pulling force: 2,500lb (1,134kg)
Rope: 15m length ø5mm plastic rope with g80 3/8 clevis hook
Motor: efficient 1.35 ps/0.95 kw 12 v
waterproof connector
allows electric pulling in and out of the rope
Freewheel: for manual extraction of the rope
Gear ratio: 170:1
brake: dynamic

Accessories:

Cable remote control: included (3m cable length)
Rope window: aluminum rope window
Pulley: 3t
mounting screws: included (for standard mounting)
battery cable: Length 1.5 m (need to be extended depending on application)
instruction manual
Mounting plate: included

Other information:

dimensions (l x w x h): 346mm x 113mm x 188mm
Drum size: 37 x 80mm
Hole pattern/drilling pattern winch: 124mm x 76mm (4 screws)
Hole pattern/drill pattern mounting plate: 63.5mm (horizontal ø 9mm - 2 screws)
Approx. weight9kg

Pulling speeds and power consumption:

Rope layer	Pulling force
	lbs / kg

1	2500 / 1134
2	2033 / 922
3 4 5	1713 / 777 1480 / 671 1303 / 591


Tractive force	Traction speed		Power consumption ( a )
lbs / kg	ft / min	m / min	12 v

0	10,5	3,2	45
500 / 227	9,6	2,9	65
1500 / 680	7,7	2,4	120
2500 / 1134	6,2	1,9	160

IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches.

Cable/Rope Type:	Synthetic Rope
Price:	0 - 199 EUR
Voltage:	12 V
Cable/Rope Length:	1 - 15 m
Drive Type:	electric
Line Pull:	1,1 - 2 t
Special Features:	weatherproof
Application:	Private Off-Road Boat Universal
Vehicle Type:	Boat Others
Brand:	Warrior®
Shipping weight:	12,00 kg
Item weight:	9,00 kg
Dimensions ( Length × Width × Height ):	34,60 × 11,30 × 18,80 cm
