Boat winch electric winch boat trailer trailer warrior ninja 3500lb 1.6 t 12 v plastic rope

Boat winch electric winch boat trailer trailer warrior ninja 3500lb 1.6 t 12 v plastic rope

SKU: WBW35SPA12
GTIN: 4260357363777
Category: Winches

209,99 €

incl. 19% VAT , plus

Delivery time: 83 - 85 Workdays (DE - int. shipments may differ)

Available from: 19.07.2024 (Pre-orders possible)

piece

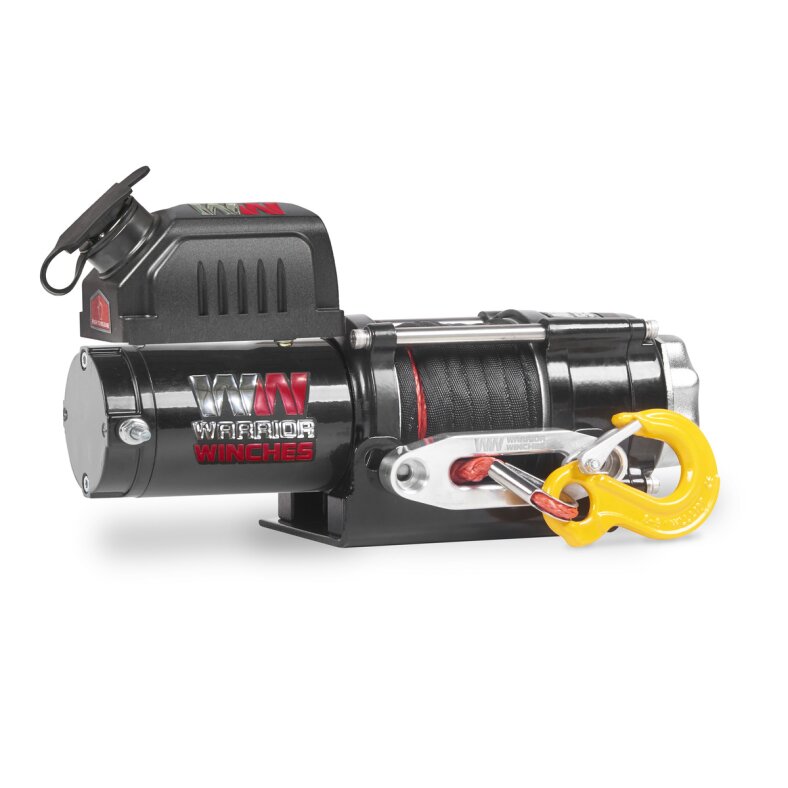

Excellent utility winch. The Warrior c3500a with armortek plastic rope. A large 1.95 hp motor, heavy duty clutch, steel gearbox and waterproof connectors deliver the ultimate in performance and reliability. Complete with mounting plate for flat mounting or alternative ball head mounting.

Standard equipment:

Pulling force3,500lb (1,588kg)
Rope: 15m length ø5mm plastic rope with g80 3/8 clevis hook
Engine: efficient 1.30 hp/1.00 kw 12 v
waterproof connector
allows electric pulling in and out of the rope
Gear ratio: 170:1
brake: dynamic

Accessories:

Cable remote control: included (3m cable length)
Rope window: aluminum rope window
Pulley: 3t
mounting screws: included (for standard mounting)
battery cable: Length 1.5 m (need to be extended depending on application)
instruction manual
Mounting plate: included

Other information:

dimensions (l x w x h): 346mm x 113mm x 188mm
Drum size: 37 x 80mm
Hole pattern/drilling pattern winch: 124mm x 76mm (4 screws)
Hole pattern/drill pattern mounting plate: 63.5mm (horizontal ø 9mm - 2 screws)
Approx. weight10kg

Pulling speeds and power consumption:

Rope layer	Pulling force
	lbs / kg

1	3500 / 1588
2	2789 / 1265
3 4 5	2319 / 1052 1984 / 900 1733 / 786


Tractive force	Traction speed		Power consumption ( a )
lbs / kg	ft / min	m / min	12 v

0	10,5	3,2	45
1000 / 454	8,9	2,7	75
2000 / 907	7,5	2,3	130
3500 / 1588	4,6	1,4	200

IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches.

Voltage:	12 V
Line Pull:	1,1 - 2 t
Cable/Rope Length:	1 - 15 m
Cable/Rope Type:	Synthetic Rope
Price:	200 - 399 EUR
Brand:	Warrior®
Application:	Private Off-Road Boat Universal
Vehicle Type:	Boat Others
Drive Type:	electric
Special Features:	weatherproof
Shipping weight:	12,00 kg
Item weight:	9,00 kg
Dimensions ( Length × Width × Height ):	34,60 × 11,30 × 18,80 cm
