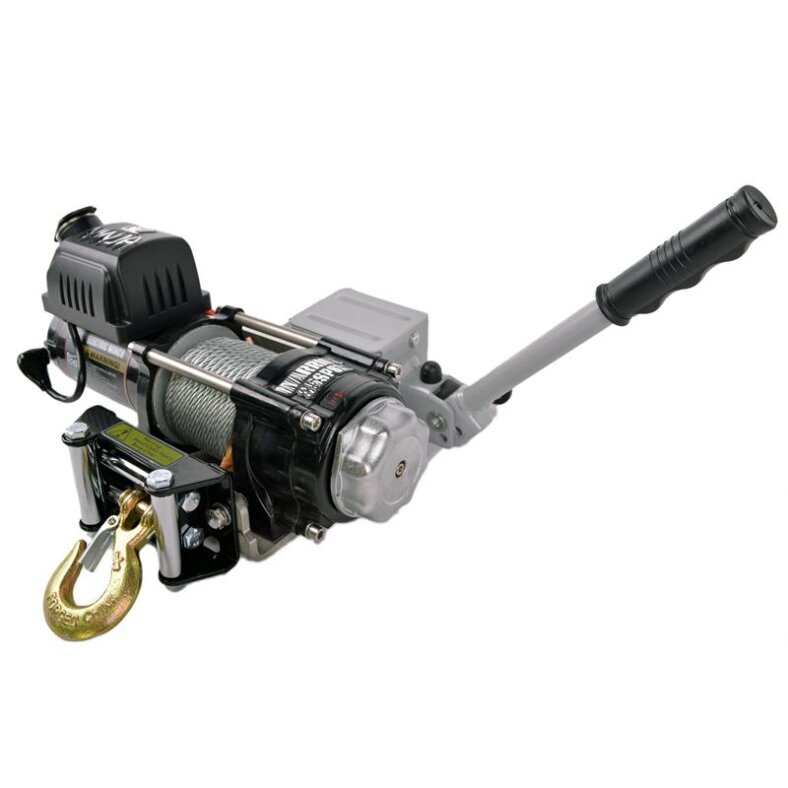

Single arm trailer hitch set incl. electric winch
warrior ninja 3500 1,6t 12V steel cable
With only one hand movement this quick system is placed on the trailer hitch. Ideal for large aTVs and small trailers.
equipped with the powerful and reliable Warrior ninja 3500 with low twist steel cable.
A large 1.95 hp motor, heavy duty clutch, steel gearbox and waterproof connectors deliver the ultimate in performance and reliability. Complete with mounting plate.
Standard equipment winch:
-
Pulling force: 3,500lb (1,588kg)
-
Rope: 15m length Ø5mm steel cable with g80 3/8 clevis hook
-
Engine: efficient 1.95 ps/1.37 kw 12 V
waterproof connectors
allows electric pulling in and out of the rope
-
Gear ratio: 170:1
-
brake: dynamic
-
Protection class: IP66
Accessories winch:
-
Cable remote control: included (3m cable length)/ alternatively with handlebar control*
-
Rope window: 4-way pulley rope window
-
Pulley: 3t
-
mounting screws: included (for standard mounting)
-
battery cable: Length 1.5 m (must be extended depending on the application), cable cross-section: 6 mm²
- operating instructions
-
Mounting plate: included
More information about the winch:
-
dimensions (l x w x h): 348mm x 116mm x 165mm
-
Drum size: 37 x 80mm
-
Hole pattern/drill pattern: 124mm x 76mm
-
approx. weight winch: 10kg
Delivery is in 2 packages.
Assembly required.
| Rope layer |
|
Tensile force |
| Plastic rope |
lbs / kg |
| |
|
|
1 |
|
3500 / 1588 |
2 |
|
2789 / 1265 |
3 |
|
2319 / 1052 |
4 |
|
1984 / 900 |
5 |
|
1733 / 786 |
| Tractive force |
|
Traction speed |
|
Power consumption ( a ) |
| lbs / kg |
|
ft / min |
m / min |
|
12 V |
| |
|
|
|
|
|
| 0 |
|
10,5 |
3,2 |
|
45 |
| 1000 / 454 |
|
8,9 |
2,7 |
|
75 |
| 2000 / 907 |
|
7,5 |
2,3 |
|
130 |
| 3500 / 1588 |
4,6 |
1,4 |
|
200 |
