Boat winch electric winch boat trailer trailer warrior ninja 4500lb 2 t 12 v plastic rope

Boat winch electric winch boat trailer trailer warrior ninja 4500lb 2 t 12 v plastic rope

SKU: WBW45SPA12
GTIN: 4260482521011
Category: Winches

329,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 4 Workdays (DE - int. shipments may differ)

piece

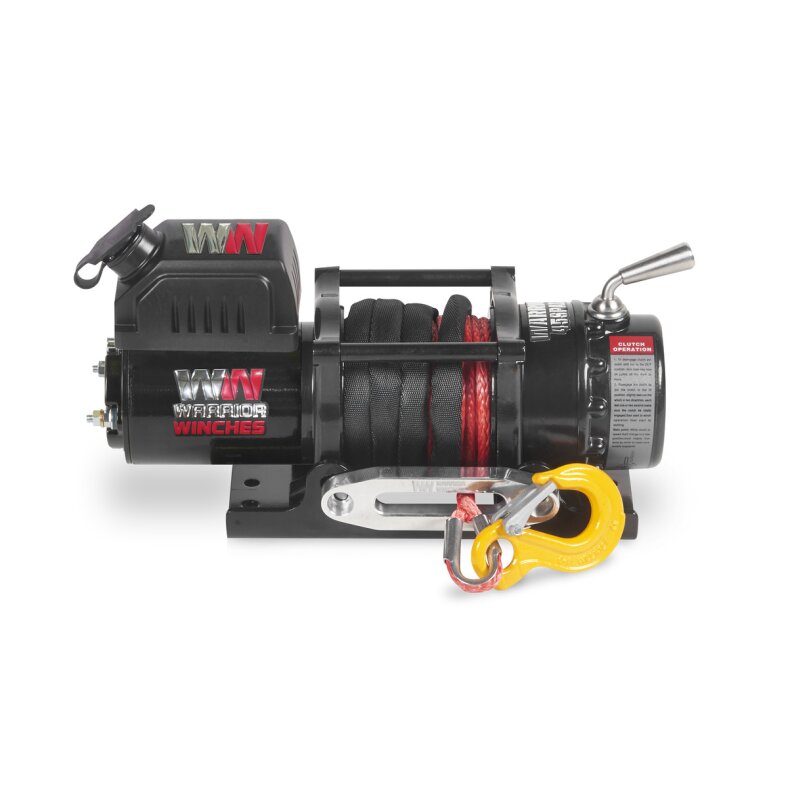

warrior 4500 ninja 2t 12V synthetic rope

The top seller among the boots winches in the Warrior Range. The high quality 3 stage planetary gearbox makes this winch one of the quietest and smoothest running winches in the entire winch market. Smooth running performance and full load holding brake make the 4500 ninja the perfect solution for highly demanding applications.

Standard features:

Pulling force: 4,500lb (2,041kg)
Rope: 14.5m length ø6mm armortek plastic rope with g80 3/8 clevis hook
Engine: Input power: 2,4 kw / output power: 1,0 kw
enables electric pulling in and out of the rope
Gearbox: 3-stage metal drive
with overrunning clutch: allows the manual extraction of the rope
Gear ratio: 172:1
brake: automatic mechanical brake
Warranty: 3 years on electrics

Scope of delivery:

Cable remote control: included (3m cable length)
Rope window: aluminum rope window
mounting screws: included (for standard mounting)
battery cable: Length 1.5 m (may need to be extended depending on application)
operating instructions
Mounting plate: included

Further information:

dimensions (l x w x h): 378mm x 126mm x 200mm
Hole pattern/drilling pattern winch: 129mm x 96mm (4 screws)
Hole pattern/drill pattern mounting plate: 230mm x 90mm (horizontal ø 10mm)
Weight: 13kg

Pulling speeds and power consumption:

Rope layer	Tractive force
	lbs / kg

1	4500 / 2041
2	3642 / 1652
3 4	3060 / 1388 2638 / 1196


Tractive force	Traction speed		Power consumption ( a )
lbs / kg	ft / min	m / min	12 V

0	11,6	3,6	20
1500 / 680	9,2	2,8	70
2500 / 1134	7,8	2,4	100
3500 / 1587 4500 / 2041	6,6 4,9	2,0 1,5	140 200

IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches.

Voltage:	12 V
Line Pull:	1,1 - 2 t
Cable/Rope Length:	1 - 15 m
Cable/Rope Type:	Synthetic Rope
Price:	200 - 399 EUR
Brand:	Warrior®
Application:	Private Off-Road Boat
Vehicle Type:	Boat
Drive Type:	electric
Special Features:	weatherproof
Shipping weight:	12,00 kg
Item weight:	11,00 kg
Dimensions ( Length × Width × Height ):	37,80 × 12,60 × 20,00 cm
