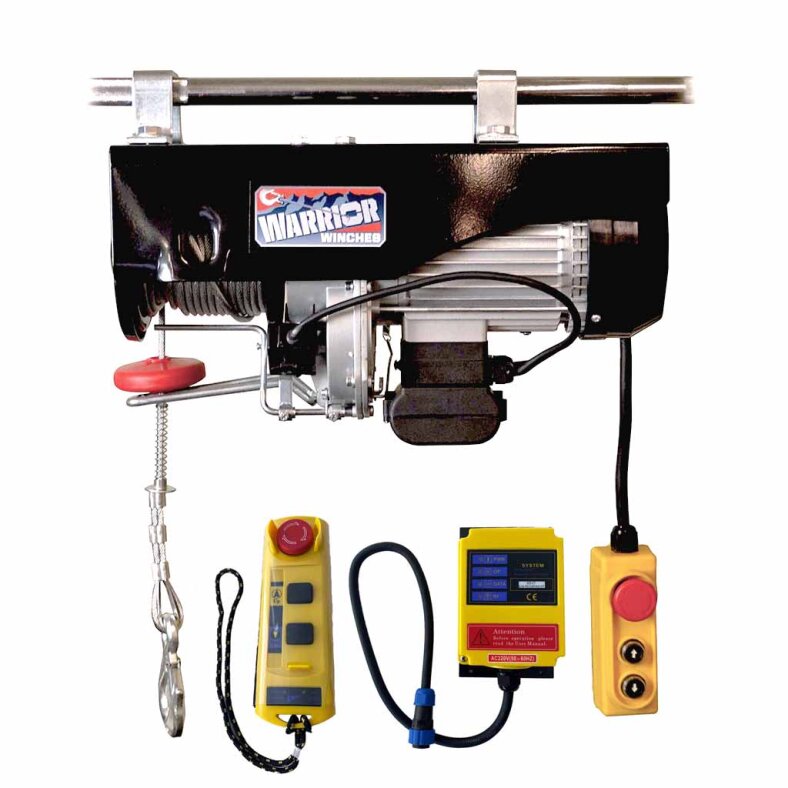

Warrior electric hoist 230v 240veh1000 incl. radio remote control
New model 2017. compact design makes it a general purpose device for all kinds of lifting applications.
Easy to install, with the ability to quickly replace the rope. Complete with special fixed clamps for a wide range of profile beams (4-sided beams).
Complies with bs en14492 directive by means of upper and lower limit switches and thermal overload protection for increased safety.
Protection class ip54. This hoist supplies an emergency stop cable remote control with 3 m cable length for electrical input and output of the rope.
In addition, this unit also includes a wireless radio remote control with transmitter (part number: WWACWRC240-AS)
This can be easily and quickly connected by means of a screw cap (patented Air-Socket system).
Technical specifications:
-
Voltage: 230v
-
Max load (E/D*): 500 / 999kg
-
Lifting height (E/D*): 18m / 9m
-
Lifting speed (E/D*): 8 / 4m/min.
-
Motor: 1600 watt 230v
-
Rope: 5mm x 18m
-
Protection class: IP54
-
Weight: 32kg
-
Double safety cut-off switch: integrated
-
Sound pressure level: 71 dB(A)
-
Internal dimensions mounting bracket: 6 x 6 cm
-
Clamp internal dimensions: approx. 60 x 60 mm
Features and benefits:
- Compact, powerful hoist
- Original Warrior® Product
- Color: black
- Voltage 230 v, 1600 watts
- No twisting due to low twist steel cable
- Reliable and easy handling
- Safe operation: cable remote control with Emergency stop switch
- Motor with automatic brake in case of power supply interruption
- Easy to assemble
- quick mounting/fixing either to ceilings, scaffolds or swivel arm
- Control switch protection class 2
- Insulation class B
- Housing: high-quality die-cast aluminum, powder-coated
- tested TÜV/GS quality
Scope of delivery:
- Hoist incl. pulley with load hook and spring shackle
- Cable remote control (3m)
- Radio remote control WWACWRC240-AS
*Single hoist/double hoist: without load
*Please note interruption times before start-up: s3 20%-10 min, 2 min operation, 8 min pause, one cycle every 10min
Product safety information
Manufacturer information:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Max. Lifting height: |
1 - 20 m |
| Lifting speed: |
1 - 15 m / min |
| Voltage: |
230 V |
| Application: |
Private |
| Brand: |
Warrior |
| Radio remote control including: |
Yes |
| Lifting force (without deflection): |
501 - 1000 kg |
| Shipping weight: |
35,20 kg
|
| Item weight: |
35,20 kg
|
| Dimensions
( Length × Width × Height ):
|
48,00 × 17,00 × 30,00 cm |
