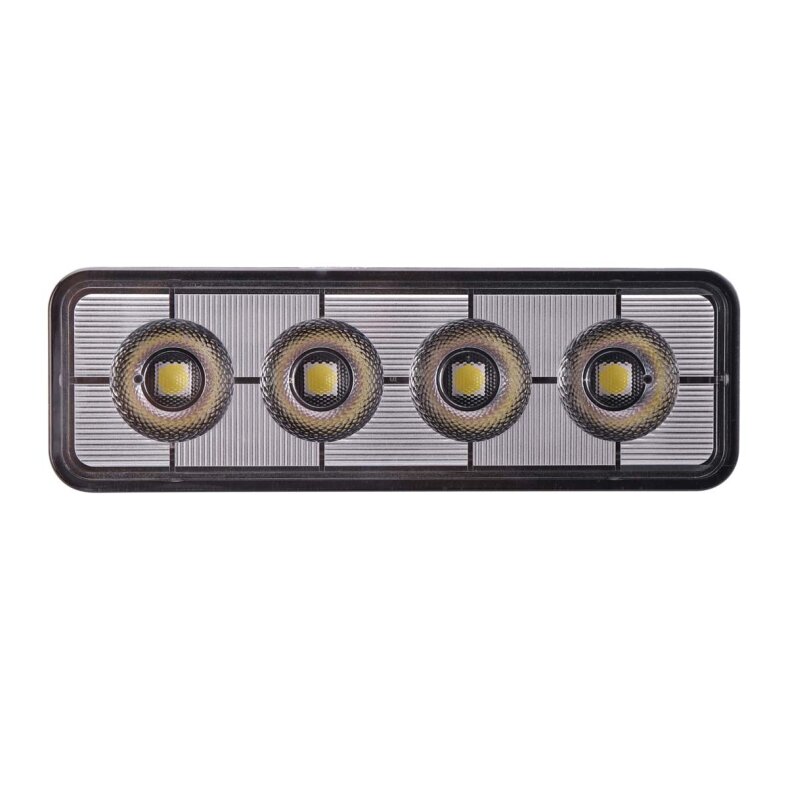

24W reversing spotlight floodlight 70° ECE
Protected against:
- Reverse polarity
- RFI/EMV interference
- Voltage and current surges
Special features
- shockproof
- waterproof
- UV shielded
- anodized polyester powder coating
- efficient polycarbonate lens reflector
- Ambient temperature: -40° - +60°
- Certification for electromagnetic compatibility
- Range: 59m (1 Lx)
Length of the connection cable: 20cm
| Technical data |
|
| Input voltage |
|
9-36V |
|
| Light color |
|
5700K white |
|
| Power consumption |
|
4x6W lumileds chips
12v: 1.6a / 24v: 0.8A |
|
| Light output (raw/eff) |
|
2.800lm / 2,200lm |
|
| Light diffusion |
|
Floodlight: 70° |
|
| Light intensity |
|
3.400cd |
|
| Protection class |
|
IP68 IP69K |
|
| Lens |
|
shatterproof polycarbonate |
|
| Housing |
|
Die-cast aluminum ADC12 |
|
| Mounting |
|
standing |hanging |
|
| Connection |
|
German plug |
|
| Weight |
|
0.5 kg |
|
| Dimensions |
|
130.0 x 42.0 x 42.0 mm |
|
| Homologation: |
|
ECE 23R | 10R |
|
