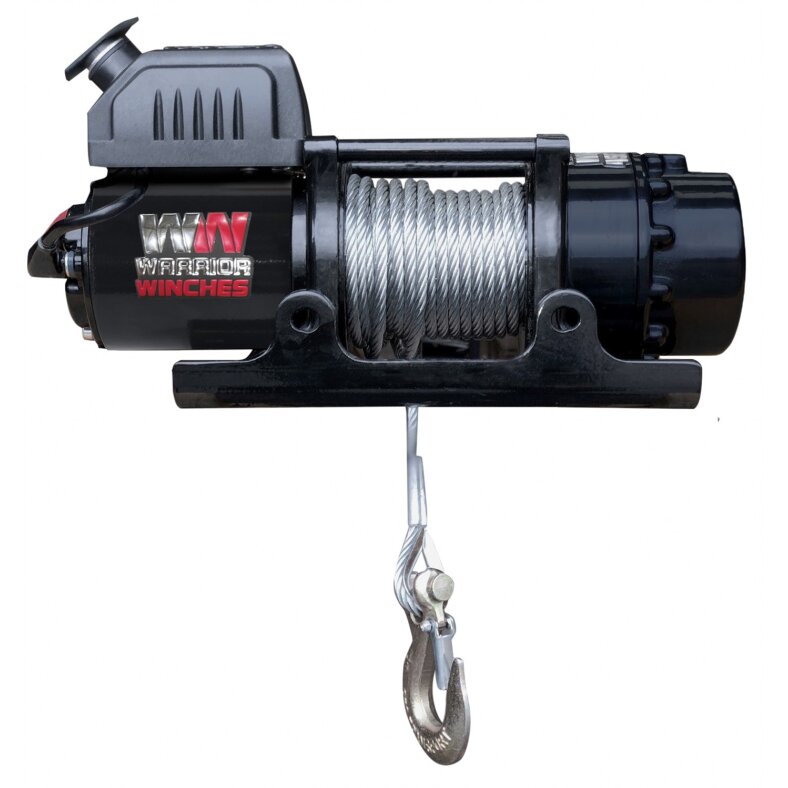

WaRRIOR hoist ninja 400kg 12V steel cable
Standard equipment:
- Lifting capacity max: 900lb (408kg)
- Rope: 14.5m length Ø6.4mm steel cable with clevis hooks
- Motor: 12v: 1.95 ps/ 1.37kw
- allows electric pulling in and out of the rope
- Gear ratio: 172:1
- brake: automatic mechanical brake

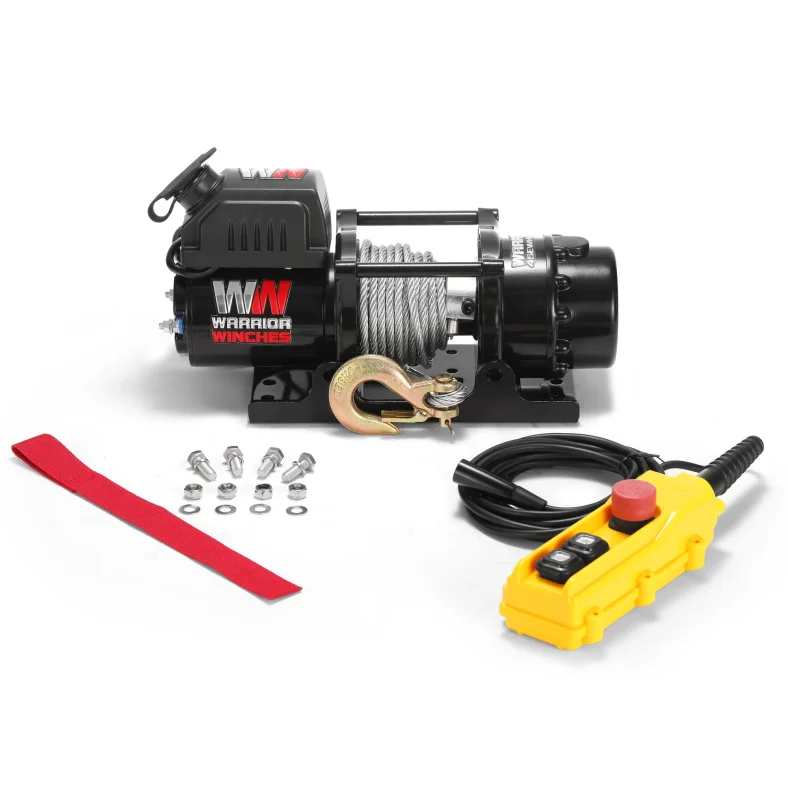

Scope of delivery
- Emergency stop operation: included (3m cable length)
- mounting screws: included (for standard mounting)
- battery cable: Length 1.5 m (must be extended depending on application), cable cross-section: 10 mm²
- operating instructions
- Mounting plate: inclusive
Other information:
- dimensions (l x w x h): 360mm x 126mm x 165mm
- Hole pattern/drilling pattern: 129mm x 96mm
- Weight: 13kg
Pulling speeds and power consumption:
| Rope layer |
|
Pulling force |
|
|
|
| |
|
lbs / kg |
|
|
|
| |
|
|
|
|
|
1 |
|
900 / 408 |
|
|
|
2 |
|
728 / 330 |
|
|
|
3
4 |
|
612 / 278
528 / 239 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tractive force |
|
Traction speed |
|
Power consumption ( a ) |
| lbs / kg |
|
ft / min |
m / min |
|
12 V |
| |
|
|
|
|
|
| 0 |
|
11,6 |
3,6 |
|
20 |
| 300 / 136 |
|
9,2 |
2,8 |
|
70 |
| 500 / 227 |
|
7,8 |
2,4 |
|
100 |
700 / 317
900 / 408 |
|
6,6
4,9 |
2,0
1,5 |
|
140
200 |
Product safety information
Manufacturer information:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Voltage [V]: |
12 |
| Max. Lifting height: |
1 - 20 m |
| Lifting speed: |
1 - 15 m / min |
| Application: |
Private |
| Brand: |
Warrior |
| Radio remote control including: |
No |
| Lifting force (without deflection): |
251 - 500 kg |
| Shipping weight: |
14,00 kg
|
| Item weight: |
13,00 kg
|
| Dimensions
( Length × Width × Height ):
|
36,00 × 12,60 × 16,50 cm |
