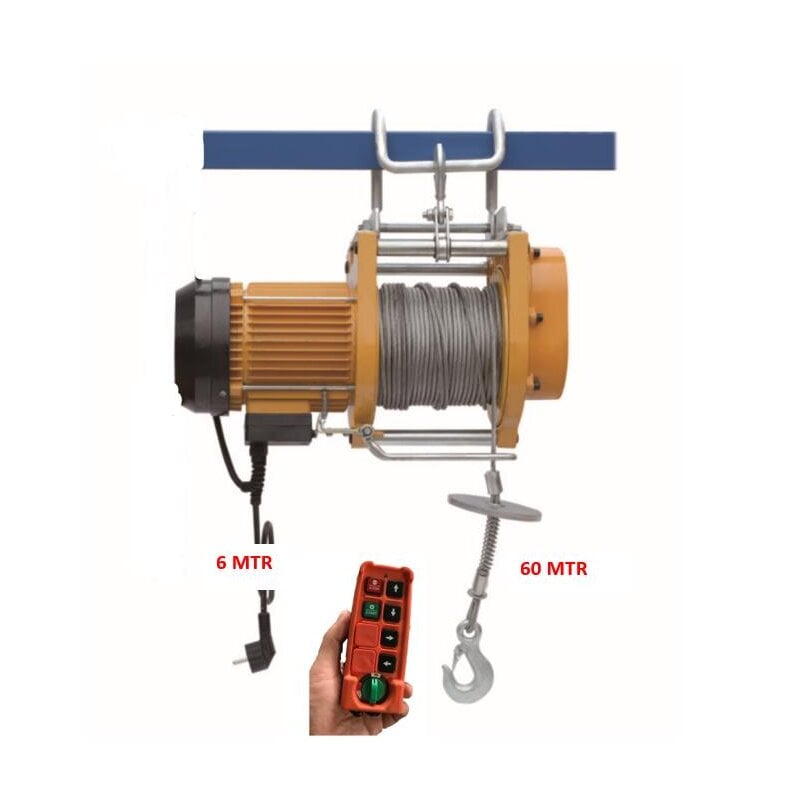

Electric hoist winch 230v 250kg 15m/min
The compact design of the mini wire rope winch makes the professional wire rope hoist an all-purpose device for all kinds of lifting applications. With a dead weight of only 31kg, the small and light rope hoist even lifts 250kg on a single hoist up to a height of 60m. The electric wire rope winch is easy to install - the stable, low-twist wire rope with a useful length of 60m can be replaced quickly and easily if necessary. The integrated bracket allows the winch to be easily and safely attached to a scaffold or pipe. This hoist has a high quality and professional radio remote control with emergency stop for the electric on and off of the rope. The mini rope winch complies with bs en14492 directive by upper and lower limit switches and thermal overload protection for increased safety. The powder-coated housing of the electric wire rope hoist is protected against the ingress of dust and splash water and has a protection class of IP54.
Compact mini rope winch 230v buy cheap online at seilwinden-direkt.de
The lightweight yet durable cable winch is used on construction sites, in industrial halls, but also in private gardens or homes to safely and quickly move large loads. The mini cable winch is characterized by a lifting speed of up to 15m/min on the single hook By the automatic brake and the thermal overload protection is a safer work guaranteed.
The inexpensive mini cable winch and other electric winches, hoists and winch accessories you can buy in the online store of Seilwinden-Direkt.de
Technical specifications of l-250-wrc hoisting winch:
-
Voltage: 230v
-
Lifting capacity: 250kg
-
Lifting height: 60m
-
Lifting speed: 15m/min.
-
Motor: 1300 watt 230v
-
Rope: 5,1mm x 60m
-
Protection class: IP54
-
Insulation protection class: B
-
Weight: 31 kg
-
Double safety switch: integrated
-
Sound power: 71 dB(A)
-
Dimensions: 468.5 x 426 x 203mm (LxHxW)
Fields of application:
- Construction site (e.g. building materials)
- Industrial hall (e.g. work pieces)
- Workshop (e.g. engine)
- Warehouse (e.g. goods)
- Freight elevator (e.g. shopping or firewood)
Features and advantages of the professional rope winch 230v at a glance:
-
Spare parts on demand from stock available
- Compact, lightweight and powerful hoist
- No twisting of the load due to low twist steel cable
- Reliable and easy handling
- Safe operation with professional radio remote control
- Motor with automatic brake in case of power supply interruption
- Thermo Overload protection
- quick, simple mounting (optionally on ceilings, scaffolds or swivel arm)
- Housing: high-quality die-cast aluminum, powder-coated
- tested TÜV/GS quality
Scope of delivery:
- Hoist with 60m steel cable and hook pre-installed wound on drum
- Professional radio remote control
- 6m power cable with safety plug
*Single hoist/double hoist
*Please note interruption times at full load before start-up: s3 40%-10 min, 4 minutes continuous operation, 6 minutes break (cycle 10 minutes)
