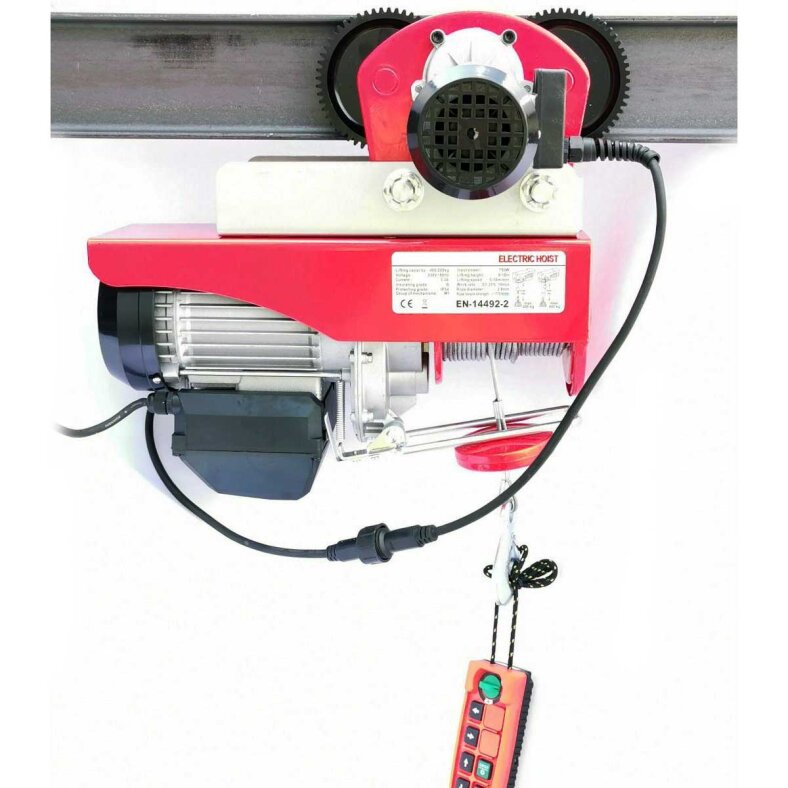

Electric hoist winch with trolley radio remote control 230v 100/200kg 10m/min
The compact design of the mini cable winch makes the professional cable hoist an all-purpose device for all kinds of lifting applications. With a dead weight of only 25 kg, the small and light wire rope hoist with trolley even lifts 100 kg up to a height of 18 m on a single hoist. The electric wire rope winch is easy to install - the stable, low-twist wire rope with a useful length of 18m can be replaced quickly and easily if necessary. The supplied trolley allows the unit to be installed on a wide variety of sectional beams (I-beams, H-beams, double-T-beams). This hoist has a high quality and professional radio remote control with emergency stop for the electrical input and output of the rope as well as the directional control of the trolley. The mini rope winch complies with bs en14492 directive by upper and lower limit switches and thermal overload protection for increased safety. The powder-coated housing of the electric wire rope hoist is protected against the ingress of dust and splash water and has a protection class of IP54.
Compact mini rope winch with trolley 230v buy cheap online at seilwinden-direkt.de
The lightweight yet durable cable winch is used on construction sites, in industrial halls, but also in private gardens or homes to safely and quickly move large loads. The mini rope winch features a lifting speed of up to 10m/min on the single hook and 5m/min on the double hook. The trolley speed is about 15m/min. The double hoist - thanks to the deflection pulley included in the delivery - allows lifting of loads weighing up to 200kg up to a height of 9m. Due to the automatic brake and the thermal overload protection, safe working is guaranteed.
The inexpensive mini cable winch and other electric winches, hoists and winch accessories you can buy in the online store of Seilwinden-Direkt.de
Technical specifications of l-100-lk-wrc hoisting winch:
-
Voltage: 230v
-
Power connection cable: 3m length
-
Load capacity (E/D*): 100 / 200kg
-
Lifting height (E/D*): 18m / 9m
-
Lifting speed (E/D*): 10/5 m/min
-
Trolley speed: 15 m/min
-
Motor: 450 watt 230v
-
Rope: 3mm x 18m
-
Protection class: IP54
-
Insulation protection class: B
-
Weight: 25 kg
-
Double safety cut-off switch: integrated
-
Sound power: 71 dB(A)
- Beam profile: height: 100-220mm / width: 68-110mm
Fields of application:
- Construction site (e.g. building materials)
- Industrial hall (e.g. work pieces)
- Workshop (e.g. engine)
- Warehouse (e.g. goods)
- Freight elevator (e.g. shopping or firewood)
Features and advantages of the professional rope winch 230v at a glance:
-
Spare parts on demand from stock available
- Compact, lightweight and powerful hoist with trolley
- No twisting of the load due to low twist steel cable
- Reliable and easy handling
- Safe operation with professional radio remote control
- Motor with automatic brake in case of power supply interruption
- Thermo Overload protection
- quick, simple mounting (optionally on ceilings, scaffolds or swivel arm)
- Housing: high-quality die-cast aluminum, powder-coated
- tested TÜV/GS quality
Scope of delivery:
- Hoist with 18m steel cable and hook pre-installed wound on drum
- Electric trolley (PlugandPlay)
- Additional pulley with load hook and hook jaw safety device.
- Professional 4-way radio remote control for winch and trolley (battery 2x aa 1,5V)
- Mains cable with safety plug
*Single hoist/double hoist
*Please note interruption times at full load before commissioning: s3 25% - 10 min, 2.5 minutes continuous operation, 7.5 minutes break (cycle 10 minutes)
