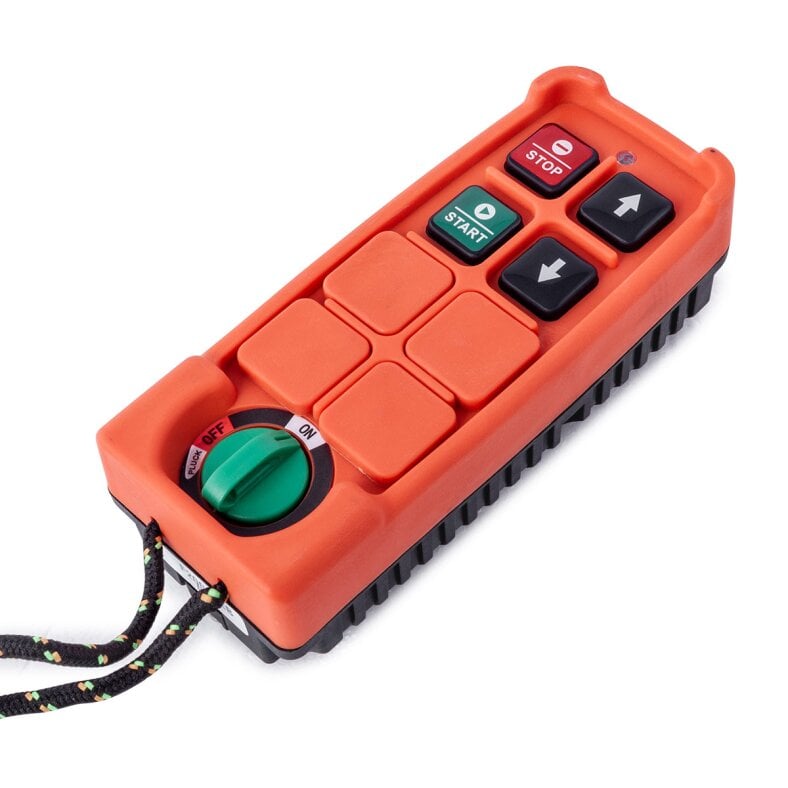

Professional radio remote control handheld transmitter for hoisting winch L-series 230V
This radio remote control is suitable for the hoisting winch L-Series 230V.
Several radio transmitters can be programmed to one hoist.
The programming works as follows:
Programming the transmitter and receiver:
The following operations should be prepared before coding:
- Disconnect the power supply to the receiver. (Disconnect the winch from the power supply)
- Remove the battery from the transmitter. (Remove the batteries from the remote control)
The steps for coding are as follows:
Press and hold the "UP" and "STOP" buttons and insert the battery into the transmitter's battery compartment until the transmitter's red led flashes rapidly.
Then release the buttons. Connect the receiver (the winch) to the power supply.
The red led light of the transmitter will change from fast to slow flashing.
At this point, the transmitter and receiver are in code assignment status.
now comes the crucial step:
Range approx. 30-40m
Option 1:
We want to program one or more handheld transmitters to a winch.
The code from the receiver (winch) must be sent to the radio remote controls
Option 2:
We want to program one handheld transmitter to one or more winches.
The code from the transmitter (radio remote control) must be sent to the receiver.
After successful coding, the green led of the transmitter flashes once.
Scope of delivery:
1x handheld transmitter for L-series 230V
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Voltage: |
230 V |
| Application: |
PrivateCommercial |
| Shipping weight: |
0,70 kg
|
| Item weight: |
0,50 kg
|
