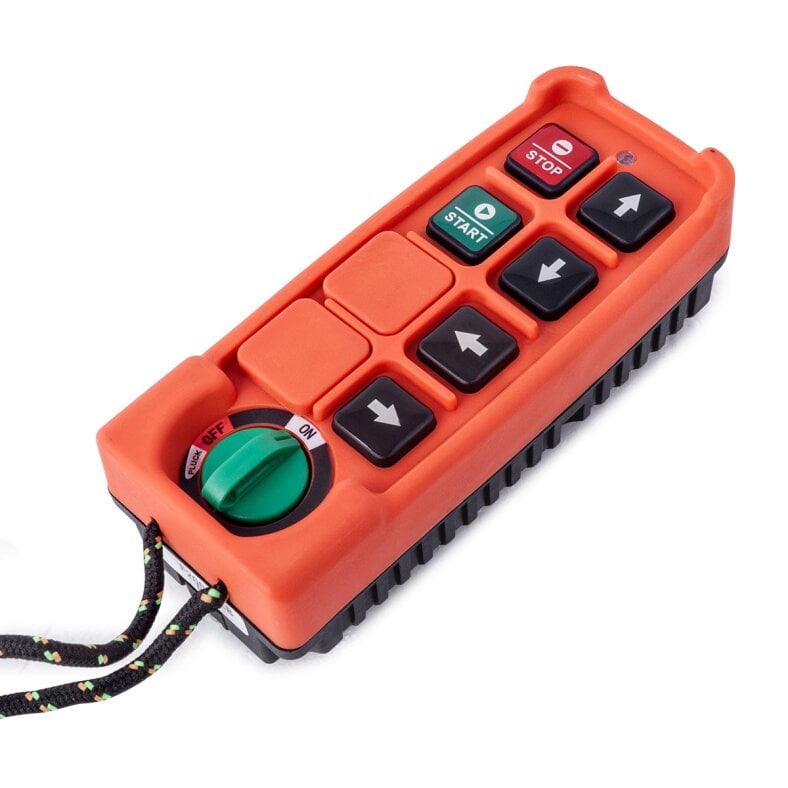

Professional radio remote control handheld transmitter for hoisting winch L-LK series 230V
This radio remote control is suitable for the hoisting winch L-LK-series 230V.
Several radio transmitters can be programmed to one hoist.
The programming works as follows:
Programming the transmitter on the receiver.
The following operations should be prepared before coding:
- Disconnect the power supply to the receiver.
- Remove the battery from the transmitter.
The steps for coding are as follows:
Press and hold the "UP" and "STOP" buttons and insert the battery into the transmitter's battery compartment until the transmitter's red led flashes rapidly.
Then release the buttons. Connect the receiver (the winch) to the power supply. The red led light of the transmitter will change from fast to slow flashing.
At this point, the transmitter and receiver are in code assignment status. When the transmitter code and channel number have been sent to the receiver, the code assignment can be completed by pressing the "UP" key.
To send the receiver code and channel number back to the transmitter, press the "DOWN" key to complete the coding process.
After successful coding, the green led of the transmitter will blink once.
Scope of delivery:
1x handheld transmitter for L-LK series 230V
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Voltage: |
230 V |
| Application: |
PrivateCommercial |
| Shipping weight: |
0,70 kg
|
| Item weight: |
0,50 kg
|
