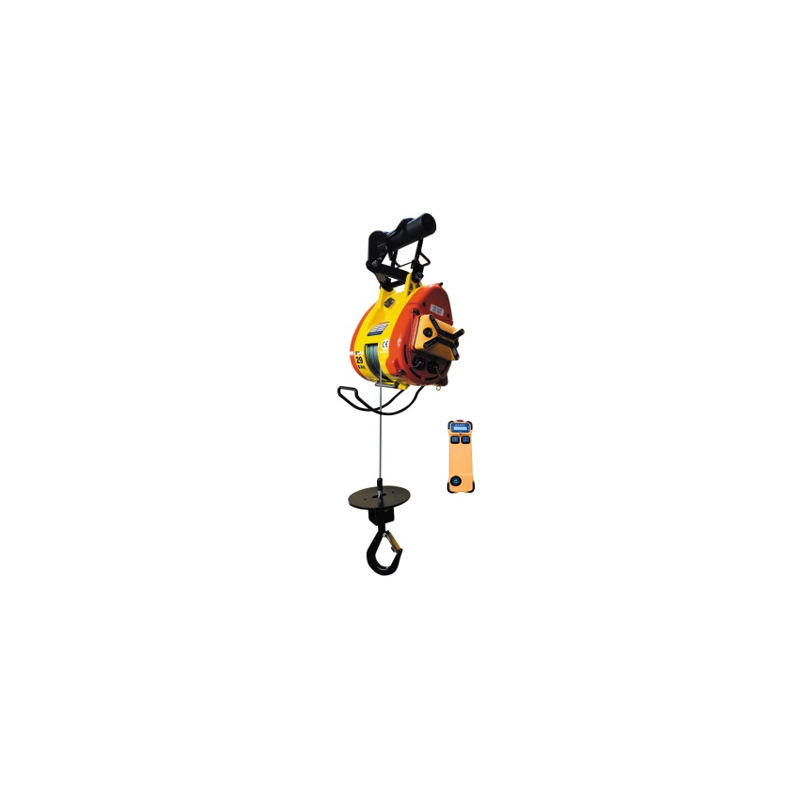

KIOWINCH KS-500 Electric Construction Hoist 500 kg, Radio Remote Control, 29 m Lifting Height, 230 V
The KIOWINCH KS-500, also known as an electric hoist, construction hoist or scaffold hoist, is perfectly engineered for industrial and construction site use. This modern electric construction hoist from KIOWINCH represents top-tier quality and performance. It offers a lifting capacity of up to 300 kg and fast lifting speeds ranging from 10 to 15 m/min.
Operation can be carried out via the control console on the hoist or using the included radio remote control with a reach of up to 100 m. The hoist features a lightweight, compact design that ensures easy installation—perfect for industrial environments and construction sites.
The KIOWINCH KS-500 comes equipped with safety features such as upper and lower end limits, an end stop switch, a 360° heavy-duty safety hook, and an emergency stop function on the handheld transmitter.
Key Features
-
Max. Load Capacity: 500 kg – ideal for heavy-duty loads on construction sites
-
Lifting Speed: 10–15 m/min – high-speed lifting for efficient workflow
-
Max. Lifting Height: 29 m – compact yet powerful
-
Voltage: 230 V – compatible with standard power outlets
-
Ingress Protection: IP44 – durable, weather-resistant housing for outdoor use
Compact & Safe Design
-
Lightweight & compact, easy to install – ideal for quick mounting on scaffolds or construction sites
-
Dual Braking System: electromagnetic + mechanical ratchet brake – ensures safe operation
-
Upper & Lower Limit Switches automatically halt movement when the rope reaches its end or is improperly wound – automatic limit-stop
-
360° Safety Load Hook – user-friendly and adaptable
Remote Operation Comfort
-
Radio Remote Control with emergency stop and up to 100 m range – professional wireless control for safe and convenient operation
-
Manual Control via on-hoist console also available – flexible control options
Technical Specifications
| Specification |
Value |
| Rope Diameter & Length |
6.35 mm × 30 m |
| Motor Power |
1.8 kW at 7.5 A (series circuit) |
| Gear Ratio |
192 : 1 |
| Drum Dimensions |
60 mm × 90 mm (L × Ø), with 170 mm flange Ø |
| Dimensions (L × W × H) |
approx. 680 × 305 × 220 mm |
| Weight (Net/Gross) |
28 kg / 35 kg |
| Includes |
Hoist unit, radio remote with emergency stop, 7 m power cable with Schuko plug |
Safety Instructions
-
Note: Not intended for lifting persons. Keep hands, clothing, and jewelry clear of the rope, drum, and other moving parts.
- Avoid “jog operation” (frequent short lifts or drops).
- The rope must remain under tension at all times—avoid slack or angled lifting.
- Install the hoist horizontally; ensure the rope coils evenly.
- The steel rope is a wear part and is excluded from warranty coverage.
- The hoist should be mounted on a scaffold tube or round pipe with a diameter of approximately 50 mm.
Delivery Included
- Electric Construction Hoist KS-500
- Remote Control: professional radio remote with emergency stop and up to 100 m range
- Connection Cable: 7 m power cable with Schuko plug for 230 V operation
- Cable: low-twist steel rope with 360° safety heavy-duty hook (6.35 mm × 30 m) pre-installed on the drum
- Optional: Cable remote control available separately (20 m with control button and emergency stop)
