Warning Light Blue 10° Spot 6w 9-80v ECE

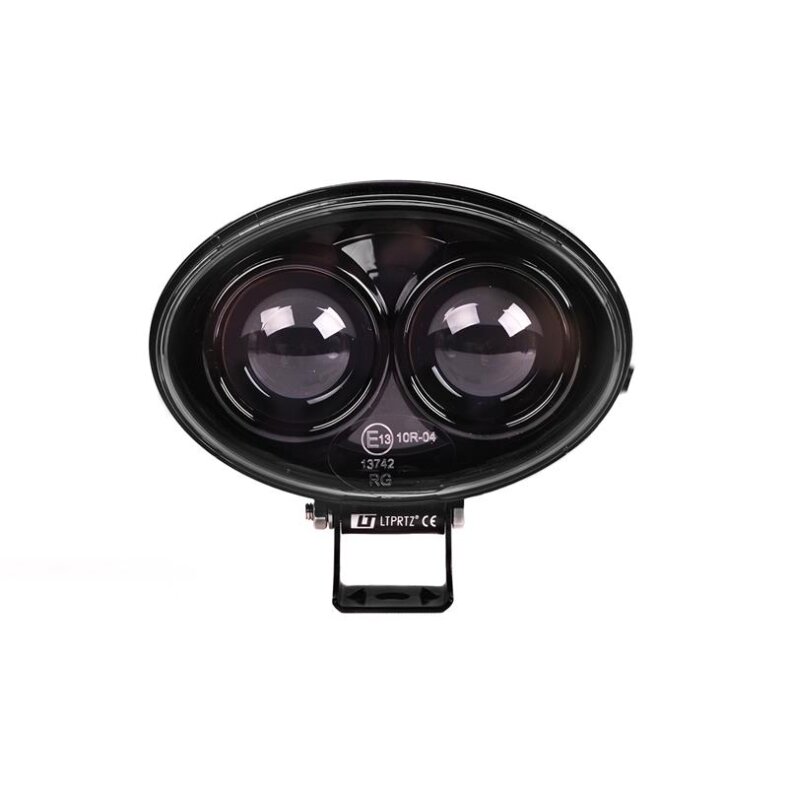

The safe interaction of vehicles and people in intralogistic processes has top priority. The Lightpartz® blue safety light supports you here with an innovative, optical warning system for industrial trucks. Especially at unclear crossing areas, the blue warning light significantly increases occupational safety. Simply mounted on the vehicle, e.g. forklift truck, two high-power LEDs in the headlight project a blue dot onto the ground. This warns pedestrians and other vehicles of approaching danger and prevents collisions. This system has already proven itself many times in practice. By adjusting the angle of inclination, the distance from the vehicle to the projection can be individually adjusted. Experience has shown that a distance of 5-10 m is recommended. The Lightpartz® blue safety light can easily be retrofitted on almost all industrial trucks.
Technical specifications:
-
Power: 6w cree high-power LEDs
-
Lifetime: up to 20,000 h
-
Light beam: Spot light
-
Light color: Blue
-
Shape: Oval
-
Material:
Housing: Die cast aluminum
Lens and reflector: Polycarbonate
U-clamp mount: Stainless steel
-
Operating voltage: 9-80v
-
Connection:
2-pole output
Cable length: 500 mm
-
Protection class: ip68
- ECE r10: radio interference suppression
-
Dimensions in mm: 144.2 x 97.8 x 75.0
Advantages:
- Optical warning light increases visibility of approaching vehicles
- Reduction of accident risk at blind spots and thus increase of work safety for all participants in internal traffic, especially pedestrians
- Due to low energy consumption, the operating time of the industrial truck is hardly affected.
- Spot technology ensures minimal scattering and increases visibility even on bright surfaces
- Long service life and maintenance-free operation
- Insensitive to vibrations or shocks
Scope of delivery:
- 1x lightPARTZ® blue safety light with protective foil
- 1x connection cable 2-pole
- 1x bracket with screws
Magnetic base optional (must be ordered separately if required)
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Gutenbergstraße 4
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Gutenbergstraße 4
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
| Application: |
Work lights |
| Beam Angle: |
Spot 10 - 30° |
| Shape: |
round |
| Power: |
1 - 49 W |
| Shipping weight: |
1,00 kg
|
| Item weight: |
0,78 kg
|
| Dimensions
( Length × Width × Height ):
|
14,42 × 7,50 × 9,78 cm |
