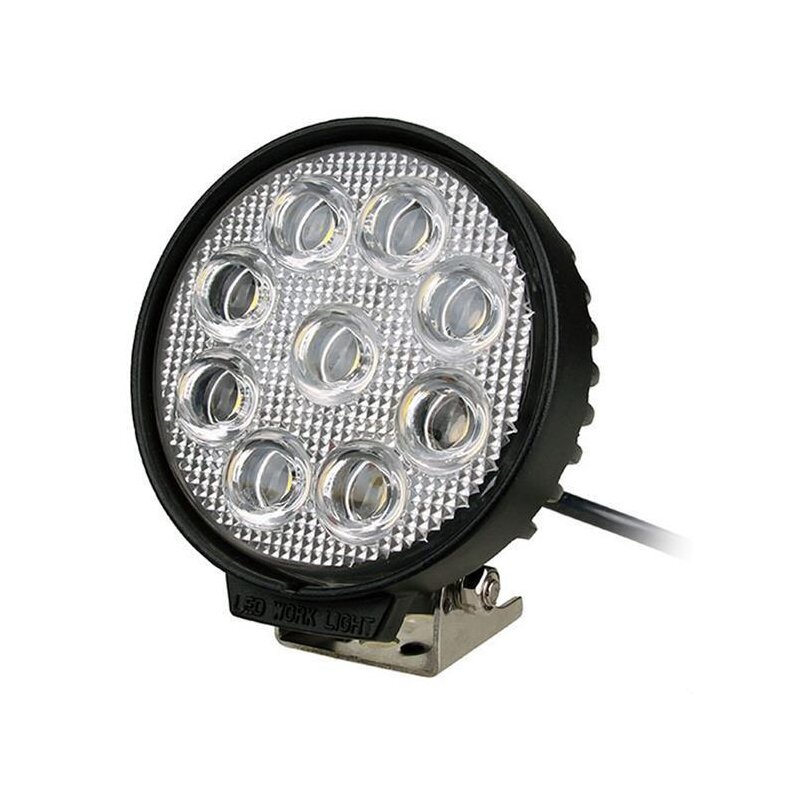

LIGhtPARtZ® SPhERE-SERIES led worklight 27w 5" 1.700lm spotlight 10° 10-30v offroad
Attention sale - Only while stocks last
The SPhERE series has been designed specifically for the price conscious buyer.
However, this does not mean that we have omitted the most important features that make up a good worklight here.
The ip68 protection class (waterproof, dustproof and shock-resistant), the shatterproof polycarbonate lens and stepless adjustability for flexible illumination are among the standards that define our SPhERE series.
Areas of application*:
-
Road vehicles: e.g. car/truck/ van/ truck
-
Forestry and agriculture: e.b. tractor/ tractor/ combine/ harvester/ forage harvester
-
Offroad: e.g. 4x4, off-road vehicle/ suv/ utv/ quad/ atv
-
Watercraft: e.g. yacht/ boat/ ship
-
construction industry/working machines: e.g. construction machinery/ excavator/ wheel loader
-
Disaster control/ emergency vehicle/ municipality: e.b. police/ fire brigade/ thw/ cleaning vehicle
-
Caravanning: e.b. motor home/ caravan
*In general, please note: operation only outside the scope of the German Road Traffic Licensing Regulations (StVZO)!
technical features:
- Power: 27w (9x 3w high power leds)
- led chip: epistar
- Lifetime: over 30,000h
- Light beam: Spot 10° beam angle
- Light intensity: 1.700 lumen
- Color temperature: 6.000k (cool white)
- Housing color: black
- Material housing: Die-cast aluminum
- Lens material: Polycarbonate
- Bracket material: solid aluminum bracket
- operating voltage: 10-30 volts dc
- Protection class: ip 67
- Dimensions w x h x d in cm (without bracket): 12 x 12 x 6.5 (5")
- Weight: 0.5 kg
- Cable length: approx. 35 cm
- Cable outlet: German plug
Scope of delivery:
- 1x LIGhtPARtZ® 27w worklight 5" Spot
- 1x mounting material
- 1x cable termination with Deutsch plug (sealed)
Legal notice regarding the use of worklights:
We bring light into the dark! In order to prevent misunderstandings in connection with worklights / auxiliary lights, the following information is provided here:
The use of worklights is regulated in §52 para. 7 StVZO ?Additional headlights and lights":
"Multi-track vehicles may be equipped with one or more lights to illuminate work equipment and work sites (work lights). Work lights may not be used while the vehicle is in motion. Notwithstanding sentence 2, worklights may also be switched on while the vehicle is in motion on vehicles used for the construction, maintenance or cleaning of roads or facilities in the road area or for refuse collection if the motion is part of the work process. Work lights may only be switched on if they do not dazzle other road users."
therefore note the following:
- Worklights may only be operated off public roads and not within the scope of the StVZO!
- Make sure that they are installed and labeled properly:
- Worklights must not be coupled with actuating devices for limiting/dipped and/or main beams
- A separate switch (ideally covered) is always required
- It is recommended that an associated indicator light is fitted
- Mark in the vehicle in a suitable place near the switch for the worklights: "Use of worklights while driving is not permitted!
