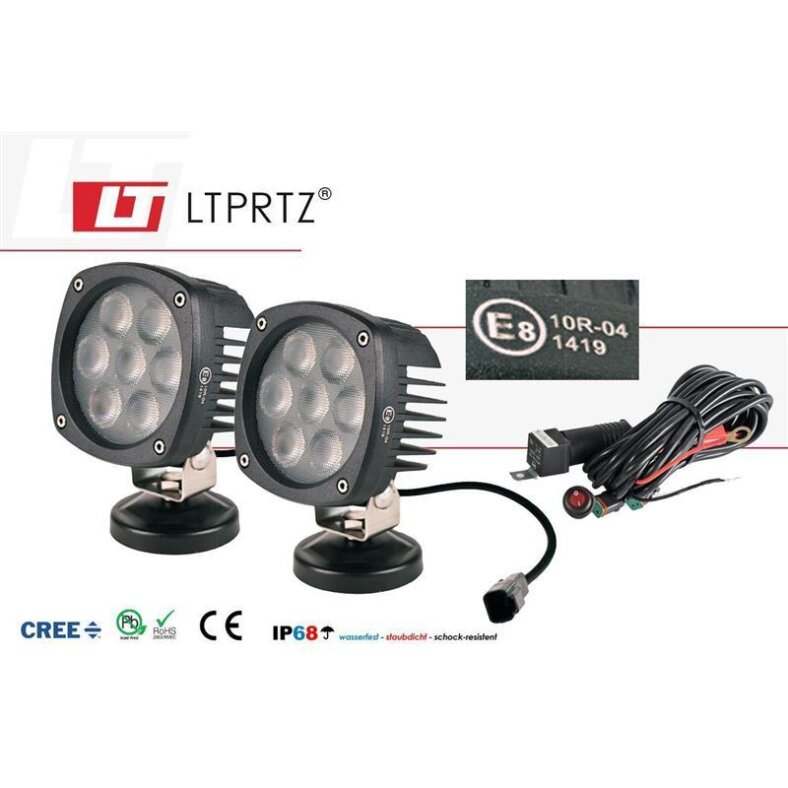

LIGHTPARTZ® Set 2x 35w 4340lm worklight spotlight
for close range
Equipped with our Superdrive circuitry for highest light output at low power consumption, this premium spotlight
this premium spotlight achieves effective lumens of 4,100 at just 35w input power.
(For comparison, this is the output achieved by inexpensive worklights at approximately 50w)
Technical Specifications:
-
Operating voltage: 9-36v
-
leds: 7pcs. CREE 5w high power led chips
-
Light beam: 20° spot light
-
Theoretical lumens: 4340 lm
-
Effective lumens: 4060 lm
-
Housing: Die-cast aluminum
-
Coating: Durable, scratch resistant and UV light resistant UV 3800 polyester powder coating
-
Lens: Clear optical and shatterproof polycarbonate lens
-
Operating Temperature: -40°c+150°c
-
Homologation: ece r10
-
Protection class: ip 68 waterproof, dustproof, shockproof
-
Color: black
-
Dimensions: 107mm x 75mm x 150mm
Electrically protected against radio frequency/EM interference
Scope of delivery:
- 2x led worklight 35w* incl. german plug
- 2x mounting bracket: stainless steel
- 2x mounting screws
- 1x plug and play relay harness
- incl. ON/OFF switch and Deutsch plug, 40a relay and fuse
*without magnetic stand
Legal notice for the use of worklights:we bring light into the dark! In order to prevent misunderstandings in connection with worklights / auxiliary lights, the following information is provided here:
The use of worklights is regulated in §52 paragraph 7 stvzo "Additional headlights and lights":
"Multi-track vehicles may be equipped with one or more lights to illuminate work equipment and work sites (work lights). Work lights may not be used while the vehicle is in motion. On vehicles used for the construction, maintenance or cleaning of roads or facilities in the road area or for refuse collection, work lights may also be switched on while driving, notwithstanding sentence 2, if driving is part of the work process. Work lights may only be switched on if they do not dazzle other road users."
Therefore, note the following:
- Worklights may only be operated off public roads and not within the scope of the StVZO!
- Ensure proper installation and labeling:
- Worklights must not be coupled with actuating devices for limiting/dipped and /or main beam lights
- A separate switch (ideally covered) is always required
- The installation of an associated indicator light is recommended
- Mark in the vehicle in a suitable place near the switch of the worklights: "Use of worklights while driving not permitted!"
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Application: |
Work lights |
| Power: |
1 - 49 W |
| Shape: |
round |
| Beam Angle: |
Spot 10 - 30° |
| Lumen: |
4001 - 10000 |
| Shipping weight: |
2,44 kg
|
| Item weight: |
2,44 kg
|
| Content: |
2,00 Piece
|
| Dimensions
( Length × Width × Height ):
|
10,90 × 7,60 × 13,50 cm |
