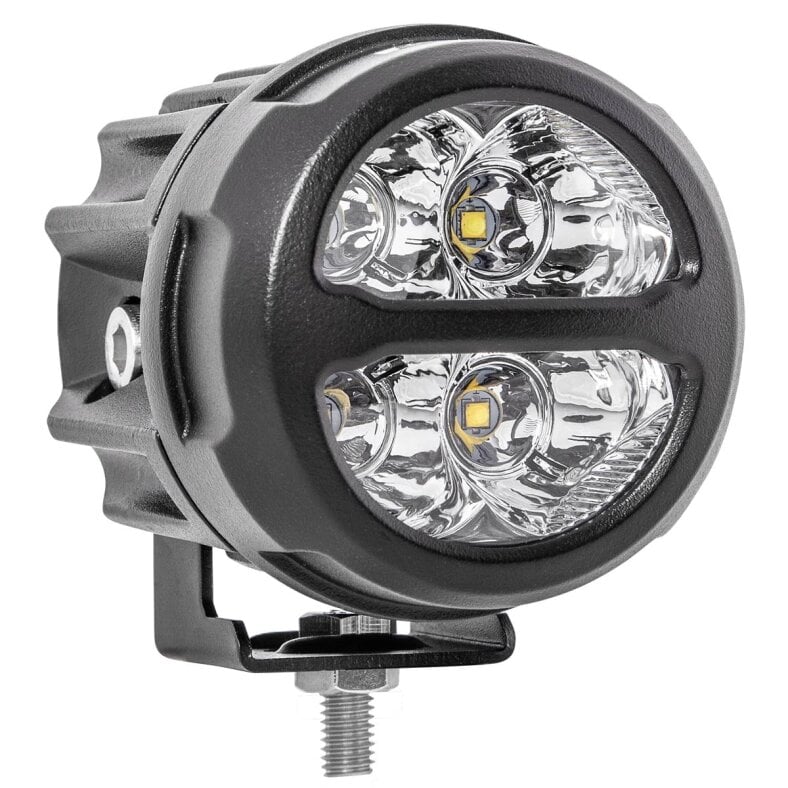

20W Worklight Spot 10°
The high intensity round LED headlight from lightpartz sets the standard in light efficiency especially for racing and motorsports.
LTPRTZ headlights feature very long life, ultra-high lumens per watt ratio, highly rugged and shock-resistant aluminum housings, and the highest protection classes for water and shock resistance.
Installation is simple, as each Lightpartz headlamp comes with comprehensive mounting hardware and DT connection cables.
Maximum illumination is achieved through innovative design with the latest reflector technology, giving you perfect visibility even in the darkest driving conditions.
Wherever you move, onroad or offroad far from public roads: Lightpartz headlights illuminate your way!
Protected against:
- Reverse polarity
- RFI/EMV interference
- Voltage and current surges
Special features
- shockproof
- waterproof
- UV shielded
- anodized polyester powder coating
- efficient polycarbonate lens reflector
- Working temperature: -40° - +50°
- Range: 228m (0.25 Lx)
| Technical data |
|
| Input voltage |
|
10-30V |
|
| Light source |
|
4x 5w cree LED chips |
|
| Power consumption |
|
15.89w
12v: 1.32a | 24v: 0.66A |
|
| Light output (raw/eff.) |
|
1.680lm/610.97lm |
|
| Light diffusion |
|
Spotlight 10° |
|
| Color temperature |
|
6601K |
|
| Protection class |
|
ip67 | IP69K |
|
| Lens |
|
shatterproof polycarbonate |
|
| Housing |
|
Die-cast aluminum ADC12 |
|
| Mounting |
|
vertical |hanging |
|
| Connection |
|
German plug |
|
| Weight |
|
0.6 kg |
|
| Dimensions |
|
81.0 x 105.0 mm |
|
| Homologation: |
|
ECE 10R |
|
