LIGHTPARTZ® 2x36w osram led lightbar orange
Worklight fog light set 9-32V
Attention: Sale item - Only while stocks last
radio interference suppressed (EMC test according to ece 10R)
with cable set
ece/sae remote beam pattern
with pressure compensation valve "breathing membrane
Experience off-road better visibility in swirling dust and sand.
(Important: use only off public roads. ece r112 only applies to white lens version!)
Technical specifications:
-
Power: 2x 36w
-
led's: 2x 12pcs 3w Osram crdp
-
Housing: Die-cast aluminum
-
Housing color: black
-
Light diffusion: Spotlight 20°
-
Lens: shatterproof polycarbonate orange
Chrome reflector
2 pcs. adjustable hanging brackets
-
Voltage: 9-32V
-
Light output: 3180 Lms
-
Color Temperature: 6000-6500K
-
Working temperature: -40°c to +60°C
-
Lifetime: over 30000 hours
-
Protection class: ip68 waterproof, dustproof, shockproof
-
Mounting: Stainless steel bracket at the bottom, 2 steel connectors, screws
-
Dimensions (LxWxH): 350 x 69 x 37.2 mm

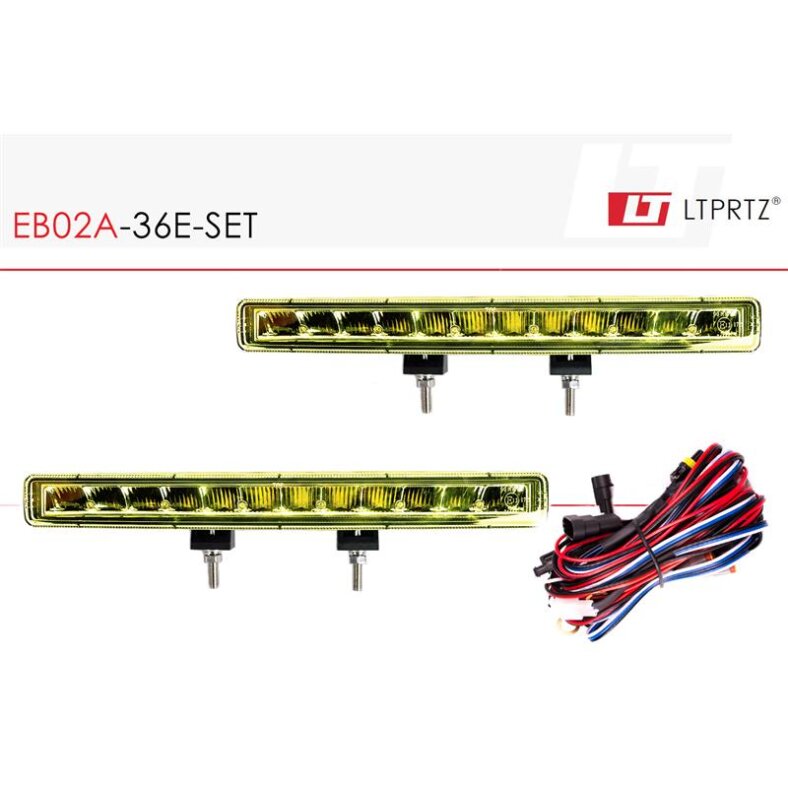

Scope of delivery:
- 2 pcs led eb02-36e driving lights orange lens
- 2 pcs 2-pole cable outlet
- 4pcs adjustable hanging bracket
- 2pcs connecting pieces for light strips screwable
- Mounting screws
Fields of application:
- Cars and trucks
- ATVandUTV
- Agricultural and forestry machinery
- Mining industry
- Yachts and boats (here: order white version)
- Off-road
Special features:
- Higher light efficiency due to light emitting from both sides.
- osram led chips provide higher uniformity in color temperature.
- Light beam pattern meets the high standards of ece and sae
- ip68
- Pressure equalization valve
- Less than 5% lumen loss within 30,000 hours
- No electromagnetic interference with other electronic devices
- Overvoltage protection up to 600V
Legal notice regarding the use of worklights:
We bring light into the dark! In order to prevent misunderstandings in connection with worklights / auxiliary lights, the following information is provided here:
The use of worklights is regulated in §52 paragraph 7 stvzo "Additional headlights and lights":
"Multi-track vehicles may be equipped with one or more lights for the illumination of work equipment and work sites (work lights). Work lights may not be used while the vehicle is in motion. On vehicles used for the construction, maintenance or cleaning of roads or facilities in the road area or for refuse collection, work lights may also be switched on while driving, notwithstanding sentence 2, if driving is part of the work process. Work lights may only be switched on if they do not dazzle other road users."
Therefore, note the following:
- Worklights may only be operated off public roads and not within the scope of the StVZO!
- Ensure proper installation and labeling:
- Worklights must not be coupled with actuating devices for limiting/dipped and /or main beam lights
- A separate switch (ideally covered) is always required
- The installation of an associated indicator light is recommended
- Mark in the vehicle in a suitable place near the switch of the worklights: "Use of worklights while driving not permitted!"
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
Responsible person:
WINCH INDUSTRY GmbH
Siemensstr, 7a
86368 Gersthofen, Deutschland
gpsr@winchindustry.com
https://www.winchindustry.com
| Item information |
Value |
| Application: |
Work lights |
| Approval: |
EMV R10 |
| Lumen: |
1001 - 4000 |
| Power: |
50 - 120 W |
| Shape: |
square |
| Shipping weight: |
4,00 kg
|
| Item weight: |
4,00 kg
|
| Dimensions
( Length × Width × Height ):
|
35,00 × 6,90 × 3,72 cm |
