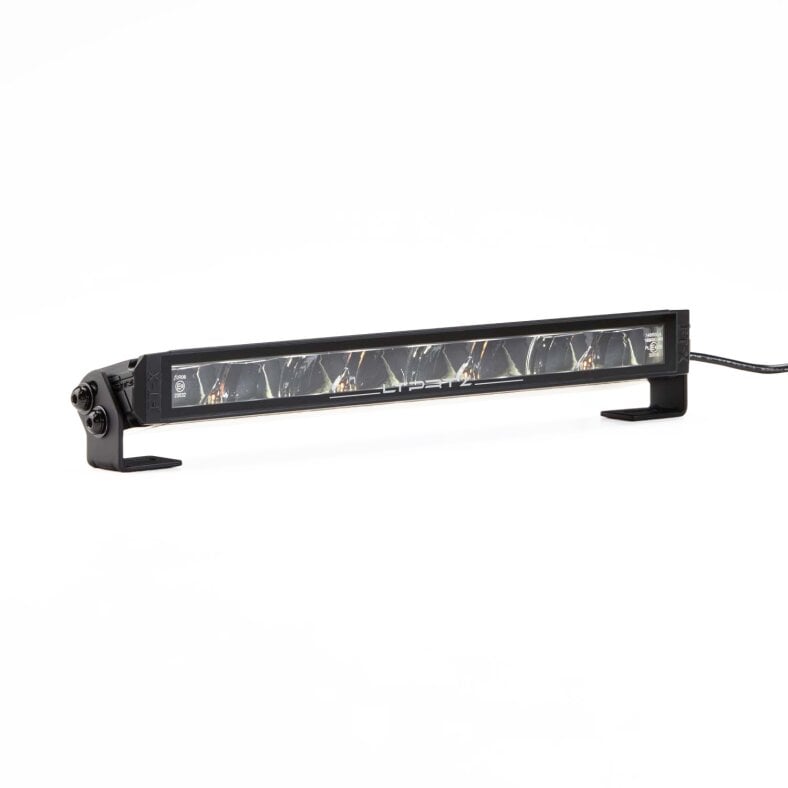

LTPRTZ High-End 50°
Flat-X 16" High Beam Lightbar
- Angled lens for better visibility - no dust or snow
- No screws on the front
- Slim design with a housing height of only 3.85 cm
Special Features:
- Full road approval
- Highest waterproof rating: IP69K
- Premium materials
- Extremely compact size
- Operating temperature: -30°C to +80°C
- Reference number: 25
- Range: 330m (1 Lux)
Technical Specifications:
- Operating voltage: 12/24V
- High beam power: 12V: 67W | 24V: 63W
- High beam current consumption: 12V: 5.1A | 24V: 2.3A
- Luminous intensity: 108,000 cd
- Lumen (Raw/Effective): 6720/4800 lm
- Housing: Extruded aluminum
- Lens: Impact-resistant polycarbonate
- Special UV-resistant coating
- Mounting: Stainless steel
- Protection class: IP69K
- Connection: DT06-4P 4-pin
- Homologation: ECE R10 | R112.01
- Reference number: 25
- High beam LEDs: 8 pieces OSRAM
- Light color: High beam cold white 5000K
- Dimensions: 404x67.2x38.5mm
- Weight: 1.2 kg
Product safety information
Manufacturer information:
WINCH INDUSTRY GmbH
Siemensstr 7A
86368 Gersthofen, Deutschland
