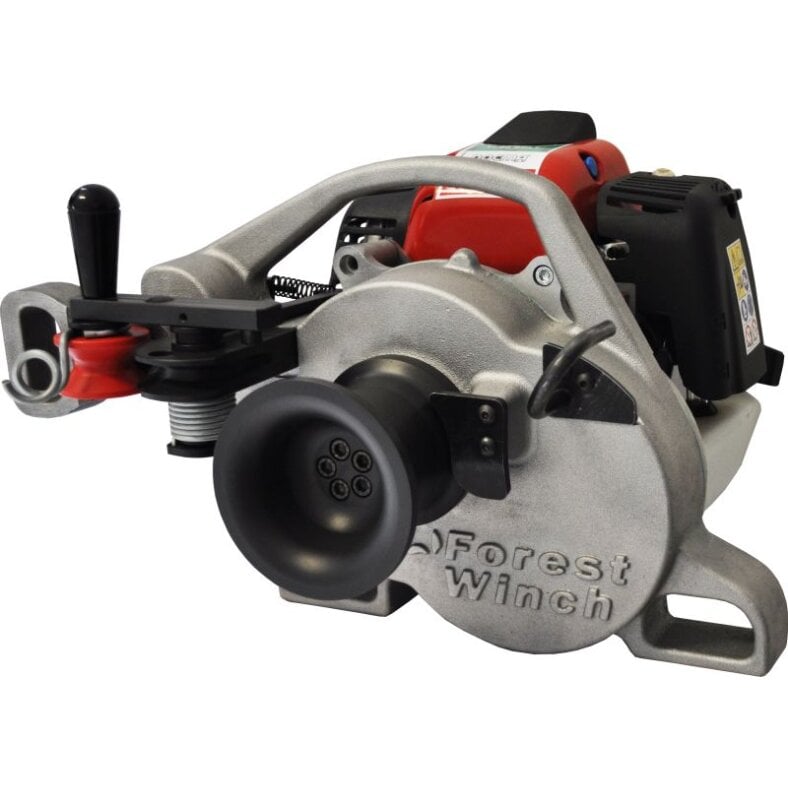

The Docma bolt vf80 capstan winch is a newer product in the ForestWinch line.
The capstan winch with modern and functional design was developed to meet a wide range of usage requirements.
The docma vf80 Bolt portable winch stands for lightness, speed and power. It is therefore the perfect solution for demanding professional users.
High-quality materials such as high-strength aluminum alloy and an integrated automatic brake, as well as the high number of rope windings on the drum, ensure increased safety and maximum pulling force.
Easy operation:
The winch can be controlled by the pull rope even with a long distance to the winch. Automatic acceleration and braking by pulling and releasing the rope.
Technical data of the docma vf80 Bolt:
| Maximum pulling force |
815 kg |
| Maximum pulling force with pulley |
1630 kg |
Weight (without rope) Weight (with rope 100m x 10mm) |
10,5 kg 17,9 kg |
| Dimensions |
346x336x253 mm |
| Speed |
26 m/min |
| Engine displacement |
54,2 cc |
| Brake type |
Automatic |
| recommended rope diameter |
10-12 mm |
| Windings on the drum |
10mm (7) / 12mm (6) |
This variant already includes a suitable plastic rope with 10mm x 100m.
