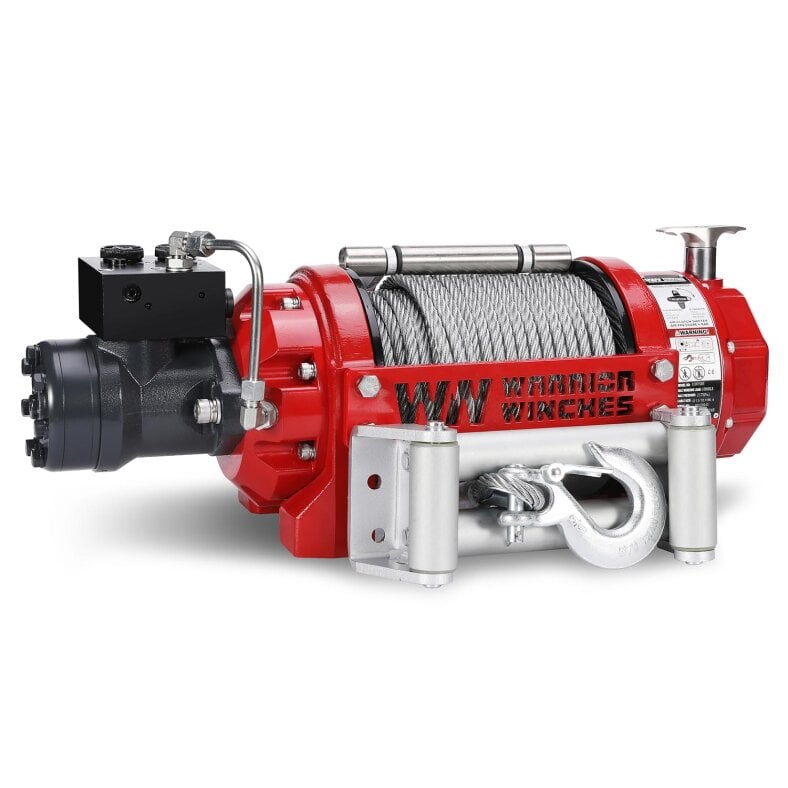

Hydraulic industrial winch 4.5t en14492:1

Hydraulic industrial winch 4.5t en14492:1

SKU: 10RVSHY
GTIN: 5060423982883
Category: Winches

1.499,99 €

incl. 19% VAT , plus

Delivery time: 126 - 128 Workdays (DE - int. shipments may differ)

Available from: 30.08.2024 (Pre-orders possible)

piece

Warrior rv series 4.5 t according to en 14492:1

The rv series hydraulic winches meet en 14992 and saej-706 standards. they are designed for harsh,
commercial and industrial applications and are available from 8000lbs to 18000lbs.
This is the 10000lb version.

sPECIAL FEATURES:

en14492-1 / machinery directive 2006/42/eg
10:1 drum/rope diameter ratio
2:1 rope ratio
Hydraulic and mechanical full load holding brake
Rope attachment 2.5 times rated load
Protection class: ip67 Waterproof and dustproof

* Load limiter and/or emergency stop must be fitted during installation

Technical features:

Pulling force: 10.000lb (4.536 kg)
Gear ratio: 17.6:1
Engine: hydraulic
braking action: Auto hydraulic
Gear lever: Pulling and turning
Max. Flow: 5-60 L/min
Max. Pressure: 15 MPa

Dimensions and weight:

Dimensions (l x w x h): 594mm x 237mm x 241mm
Drum size: ø x L: 102mm x 201mm
Approx. weight: 49,9kg
Bolt circle:
- 254mm x 114.3mm
- 254mm x 165.1mm
- 8-M10

Pulling force, pulling speeds and oil flow:

Rope Ply	Tractive force
	lbs / kg

1	10000 / 4536
2	7355 / 3336
3 4	6780 / 3075 5711 / 2591


Tractive force	Traction speed Oil flow		Pressure Mpa
lbs / kg	m / min	L / min

0	11	5	3,0
4000 / 1814	7,2	10	6,8
6000 / 2722	3,6	20	9,2
8000 / 3629 10000 / 4536	1,8 0.9	40 60	12,0 15.0

Scope of delivery:

Hydraulic winch: Warrior 10rvSHY
Rope: 30m length ø10.2mm galvanized steel cable with clevis hooks
Rope window: 4-way heavy duty rope window with stainless steel sheaves
Balancing valve
Rope pressure roller

IMPORTANT:
We expressly point out that this winch is only a pulling winch for pulling loads in the horizontal plane
horizontal plane. This winch must not be used for lifting loads or persons.
use outside the described areas will void any warranty!

Line Pull:	4,1 - 5 t
Cable/Rope Length:	26 - 30 m
Cable/Rope Type:	Steel Cable
Price:	1000 - 1999 EUR
Brand:	Warrior®
Application:	Professional Towing
Vehicle Type:	Car Truck Others
Drive Type:	hydraulic
Special Features:	weatherproof
Shipping weight:	52,00 kg
Item weight:	49,90 kg
Dimensions ( Length × Width × Height ):	59,40 × 23,70 × 24,10 cm
