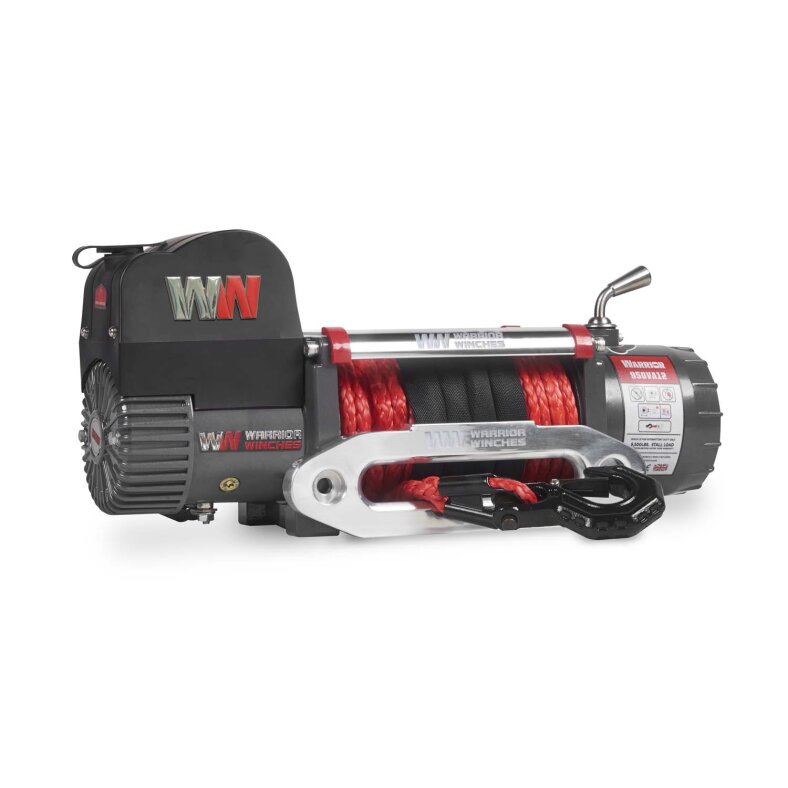

Electric winch Warrior Samurai Gen2 4.3 t 12v synthetic rope ip68

Electric winch Warrior Samurai Gen2 4.3 t 12v synthetic rope ip68

SKU: 950VA12
GTIN: 5060423985419
Category: Winches

749,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

piece

Our Premium Samurai next-generation" premium Samurai are even faster, have lower power consumption and
now have a revolutionary external brake that holds and lowers the load better and ensures that no heat builds up in the drum,
and ensures that heat does not build up in the drum.

The S9500 is a winch with numerous high-end specifications and is
ideal for vehicle recovery and 4x4 applications.
Its outstanding features include a series-wound motor with brass fittings,
a heavy-duty waterproof solenoid, a 2-sealed drum and a quiet yet efficient all-steel
yet efficient all-steel planetary gearbox.

Outstanding Features

4-pole waterproof connector
Solid brass contacts directly to the motor
Silver copper motor with copper brush holders
Abrasion resistant powder coated finish
Comprehensive waterproof sealing to IP68 standard
Removable heavy duty hook
Upgraded 2.4G wireless remote control (12v only)
Enclosed aluminum rope window
HRC50 solid steel gears
Revolutionary design external brake
laser etched extruded aluminum tie bars
600 amp silver tip contactors

Technical Specifications

Pulling force	9.500lbs (4.309KG)
Engine	In-line 12v 4.6kw/ 6.1hp
Gearbox	3-stage planetary
Gear ratio	196:1
Brake	external
Drum	63 x 223mm
Rope	Synthetic Armortek 25m l , Ø 9,8mm
Dimensions	559 x 160 x 248mm
hole pattern	254 x 114,3mm
Weight	30KG

Rope layer		1	2	3	4
Tensile force / position	lB	9500	7600	6200	5400
	KG	4309	3447	2812	2449

Tractive force lB / KG	Tractive force M/min	Current consumption A
0	10,2	50
2000 / 907	5,3	120
3000 / 1360	4,7	150
6000 / 2721	3,1	260
8000 / 3628	2,5	300
9500 / 4309	2,2	320

IMPORTANT: We expressly point out that this winch is designed exclusively for off-road and private use. It is a pure pulling winch for pulling rolling loads horizontal planes.
Any use outside the described areas will void any warranty! You can find our commercial pulling winches here: Commercial winches.

Voltage:	12 V
Line Pull:	5,1 - 6 t
Cable/Rope Length:	26 - 30 m
Cable/Rope Type:	Synthetic Rope
Price:	700 - 999 EUR
Brand:	Warrior®
Application:	Private Off-Road Forestry/Hunt Towing Universal
Drive Type:	electric
Special Features:	waterproof
Shipping weight:	33,60 kg
Item weight:	33,60 kg
Dimensions ( Length × Width × Height ):	55,90 × 16,00 × 24,80 cm
