Specifications/Part Numbers
- Lifting capacity: 200 kg in first steel rope layer
- Lifting speed: 11 - 16 m/min
- Motor protection class IP44: 1-phase, 220-240v: 1.5 kw x 7.5 a series connection
- Gear ratio: 240:1
- Maximum lifting height: 69 m
- Braking method:
for motor: electromagnetic
for gear: double ratchet
- Steel cable: 5 mm x 71 m
- Drum length: 197 mm
- Drum diameter: 95 mm
- Drum flange diameter: 190 mm
- Mounting hole circle: 142 mm x 94 mm ; 152 mm x 135 mm
- Net weight, kg (standard version): 33 kg
- Gross weight: 35 kg
- Housing dimensions (l x d x H): 470.5 x 210 x 270 mm
- Packaging dimensions (l x d x H): 515 x 395 x 350 mm
Standard Accessories:
- Steel cable 5 mm x 71 m
- Safety hook, chw-0031
- Power cable 1.5 mm2 x 3c x 3 mm and industrial plug
- Cable control, cpb-313
- Switch cable 1.25 mm² x 6c x 10 m
- Pendant switch cpb-313
the performance data is based on a 50Hz supply.
(60Hz motor available as an option, resulting in a 20% reduction in lifting capacity and a 20% increase in speed)
Lifting capacity, Lifting speed and rope capacity
| Rope layer |
|
Lifting capacity |
Pulling speed |
Total rope on the drum |
| |
|
kg |
m / min |
m |
| |
|
|
|
|
| 1 |
|
320 |
11,0 |
8,9 |
| 2 |
|
291 |
11,6 |
18,7 |
| 3 |
|
267 |
12,6 |
29,4 |
| 4 |
|
246 |
13,7 |
41,0 |
| 5 |
|
229 |
14,7 |
56,5 |
| 6 |
|
213 |
15,8 |
66,9 |
| 7 |
|
200 |
16,0 |
71,0 |
Lifting capacity for different slopes in kg
Gradient % slope / angle in degrees
- 10% / 6°: 890 kg
- 20% / 11°: 650 kg
- 40° / 25°: 410 kg
- 60% / 31°: 320 kg
- 80% / 39°: 280 kg
NOTE:
1. all figures are based on the 1st rope layer. With each layer unwound, the lifting force increases by 10%
2. Use a pulley for double hoist to increase lifting capacity by approx. 85%
3. the lifting capacities are based on one lifting load. 15% is allowed for friction (specific applications may vary)
Warning
Winches are not designed for lifting or moving people.
the specified pulling capacity is based on the first layer of rope on the drum.
When uncoiling the rope, 5 wraps should always remain on the drum.

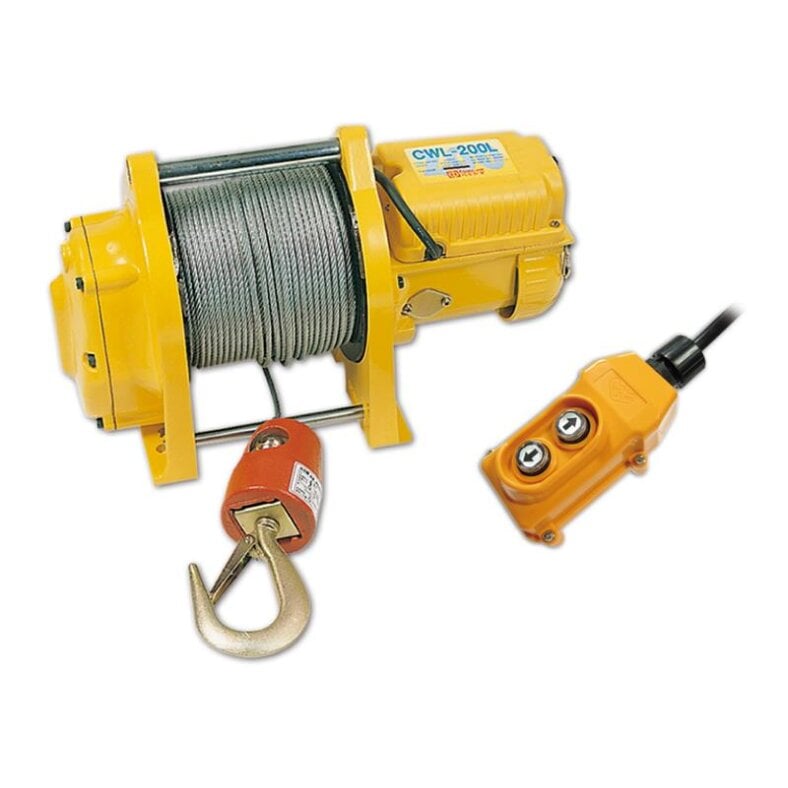

CWL 200L winch hoist 360° view
