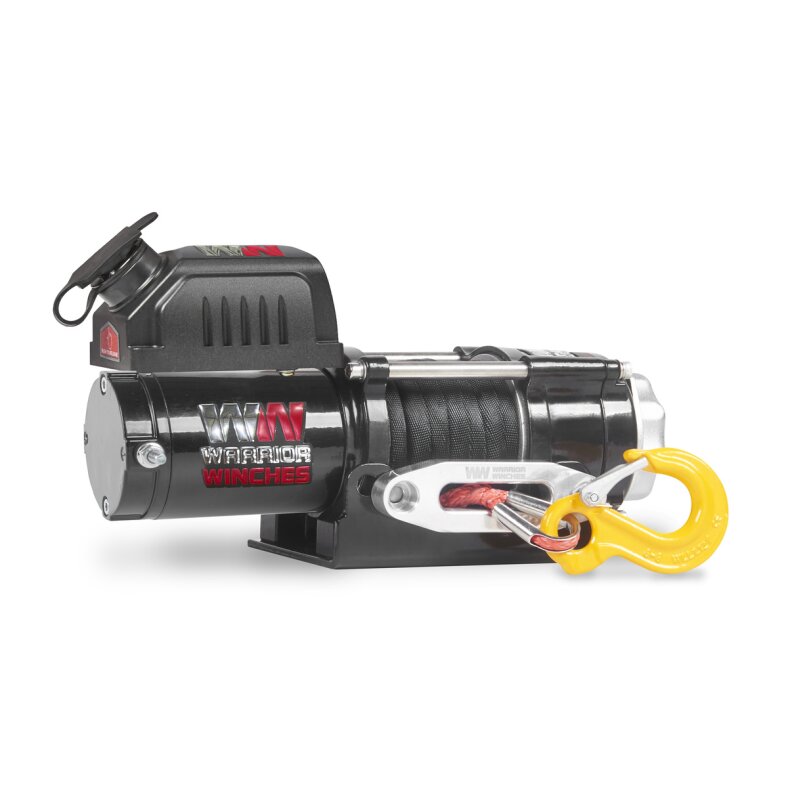

Excellent utility winch. The Warrior ninja 2500a with armortek plastic rope. A large 1.35 hp motor, heavy duty clutch, steel gearbox and waterproof connectors deliver the ultimate in performance and reliability. Complete with mounting plate for flat mounting or alternatively for mounting on ball head.
Standard equipment:
-
Pulling force2,500lb (1,134kg)
-
Rope: 15m length ø5mm plastic rope with g80 3/8 clevis hook
-
Motor: efficient 1.35 ps/0.95 kw 24 v
waterproof connector
allows electric pulling in and out of the rope
-
Freewheel: for manual extraction of the rope
-
Gear ratio: 170:1
-
brake: dynamic
Accessories:
-
Cable remote control: included (3m cable length)
-
Rope window: aluminum rope window
-
Pulley: 3t
-
mounting screws: included (for standard mounting)
-
battery cable: Length 1.5 m (need to be extended depending on application)
- instruction manual
-
Mounting plate: included
Other information:
-
dimensions (l x w x h): 346mm x 113mm x 188mm
-
Drum size: 37 x 80mm
-
Hole pattern/drilling pattern winch: 124mm x 76mm (4 screws)
-
Hole pattern/drill pattern mounting plate: 63.5mm (horizontal ø 9mm - 2 screws)
-
Approx. weight9kg
Pulling speeds and power consumption:
| Rope layer |
|
Pulling force |
|
|
|
| |
|
lbs / kg |
|
|
|
| |
|
|
|
|
|
1 |
|
2500 / 1134 |
|
|
|
2 |
|
2033 / 922 |
|
|
|
3
4
5 |
|
1713 / 777
1480 / 671
1303 / 591 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Tractive force |
|
Traction speed |
|
Power consumption ( a ) |
| lbs / kg |
|
ft / min |
m / min |
|
24 v |
| |
|
|
|
|
|
| 0 |
|
10,5 |
3,2 |
|
25 |
| 500 / 227 |
|
9,6 |
2,9 |
|
35 |
| 1500 / 680 |
|
7,7 |
2,4 |
|
65 |
| 2500 / 1134 |
|
6,2 |
1,9 |
|
100 |
IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches. |
