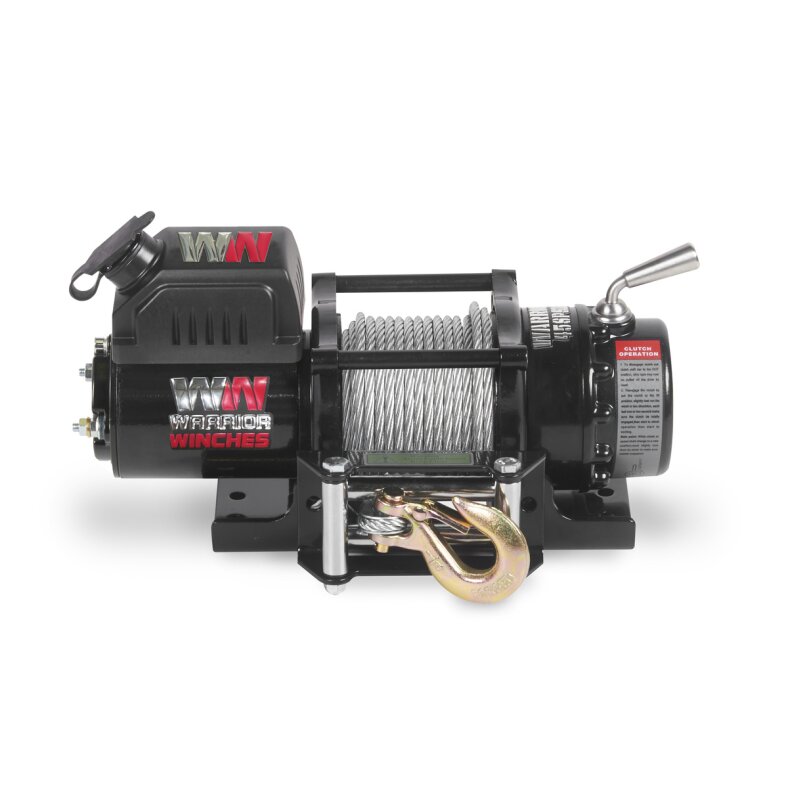

Boat winch electric winch boat trailer trailer warrior ninja 4500lb 2 t 24 v

Boat winch electric winch boat trailer trailer warrior ninja 4500lb 2 t 24 v

SKU: WBW45SPS24
GTIN: 4260482521042
Category: Winches

269,99 €

incl. 19% VAT , plus

Available immediately
Delivery time: 1 - 3 Workdays (DE - int. shipments may differ)

piece

warrior 4500 ninja 2t 12V steel cable

The top seller among the boots winches in the Warrior Range. The high quality 3 stage planetary gearbox makes this winch one of the quietest and smoothest running winches in the entire winch market. Smooth running performance and full load holding brake make the 4500 ninja the perfect solution for highly demanding applications.

Standard features:

Pulling force: 4,500lb (2,041kg)
Rope: 14.5m length ø6mm steel cable with g80 3/8 clevis hooks
Motor: sealed (ip68) and corrosion resistant in-line motor
Power: Input power: 2.9 kw / output power: 1.3 kw
enables electrical pulling in and out of the rope
Gearbox: 3-stage metal drive
with overrunning clutch: allows the manual extraction of the rope
Gear ratio: 172:1
brake: automatic mechanical brake
Warranty: 3 years on electrics

Scope of delivery:

Cable remote control: included (3m cable length)
Rope window: 4-way roller rope window
mounting screws: included (for standard mounting)
battery cable: Length 1.5 m (may need to be extended depending on application)
operating instructions
Mounting plate: included

Further information:

dimensions (l x w x h): 378mm x 126mm x 200mm
Hole pattern/drilling pattern winch: 129mm x 96mm (4 screws)
Hole pattern/drill pattern mounting plate: 230mm x 90mm (horizontal ø 10mm)
Weight: 13kg

Pulling speeds and power consumption:

Rope layer	Tractive force
	lbs / kg

1	4500 / 2041
2	3642 / 1652
3 4	3060 / 1388 2638 / 1196


Tractive force	Traction speed		Power consumption ( a )
lbs / kg	ft / min	m / min	24 V

0	11,6	3,6	15
1500 / 680	9,2	2,8	40
2500 / 1134	7,8	2,4	65
3500 / 1587 4500 / 2041	6,6 4,9	2,0 1,5	80 130

IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches.

Voltage:	24 V
Line Pull:	1,1 - 2 t
Cable/Rope Length:	1 - 15 m
Cable/Rope Type:	Steel Cable
Price:	200 - 399 EUR
Brand:	Warrior®
Application:	Private Off-Road Boat
Vehicle Type:	Boat Others
Drive Type:	electric
Special Features:	weatherproof
Shipping weight:	14,00 kg
Item weight:	13,00 kg
Dimensions ( Length × Width × Height ):	37,80 × 12,60 × 20,00 cm
