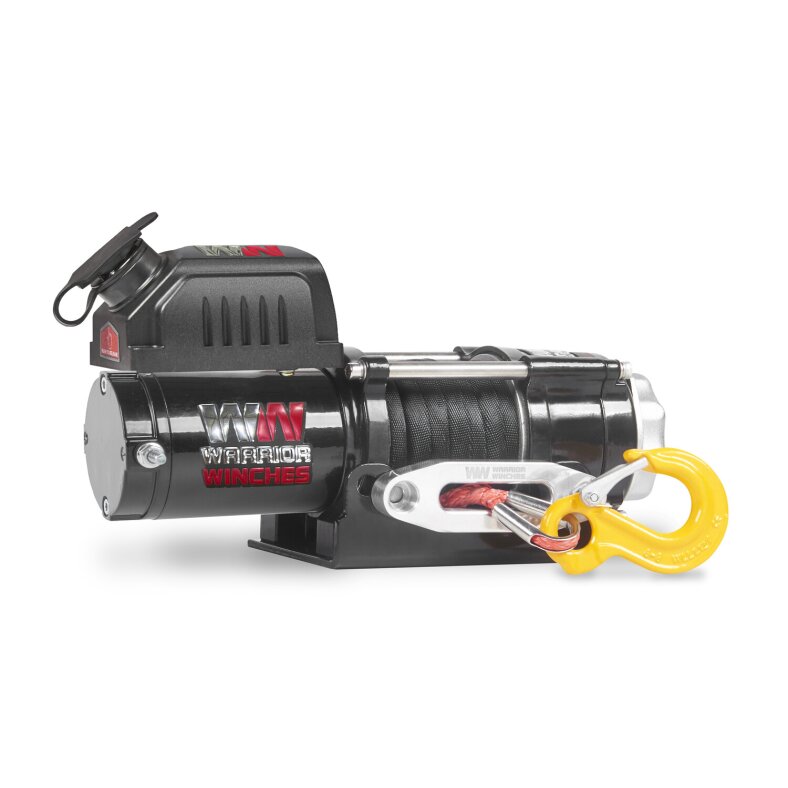

Warrior Ninja 2500lb Winch
The recently updated Warrior Ninja 2500 is an improved version of the hugely popular C2500A model. With no competitors in the market and no comparable strength, the Ninja is a truly outstanding offering thanks to its unique freewheel clutch system.
Built to last, the Ninja is packed with life-extending, strengthening features such as an all-steel planetary gear, chip-resistant paint finish and reinforced steel drum. Also protected for all weather conditions, both the controller socket and contactors are waterproof. Powered by a heavy-duty sealed motor and with the choice of steel or synthetic rope without compromising on strength, you can rely on this heavy-duty winch.
With a pulling force of 2500 lb or 1134 kg and a pulling force of 1.9 m per minute at full load, you can get the job done with ease. Unbeatable for pulling power, an optional handlebar control is also available for ATV use.
Standard Features:
-
Pulling Force : 2,500 lb (1134 kg)
-
Gearbox: One way clutch - Allows manual unwinding of cable
-
Warranty: 12 month return guarantee
Accessories:
-
Wired Hand Control: 3m wired hand control
-
Wireless Control: Available as an optional extra
-
Mounting Plate: included
-
Mounting Screws: Included for standard installations
- 1.5m heavy-duty battery cable (must be extended depending on application)
- 2t Pulley block with hook
- Instruction manual
Other information:
-
Dimensions: 335mm L x 113mm D x 165mm H
- Mounting pattern hole pattern: 79.5mm
- Approx. shipping weight: 7kg
-
Rope pull - no load: 3.2 m/min (45 amps)
-
Rope pull - full load: 1.9 m/min (60 amps)
Note: For most applications, the synthetic rope supplied with this winch must be removed from the drum, fed through the hawse after assembly, and then the cable re-wound onto the drum. A fixed hook will not (and should not) be passed through the pulley.
While every effort has been made to ensure the accuracy of the information on this product, in the interest of technical improvement, this specification is subject to change without notice.
Pulling speeds and power consumption:
Rope layer |
|
Tractive force |
|
|
|
|
|
lbs / kg |
|
|
|
|
|
|
|
|
|
1 |
|
2500 / 1134 |
|
|
|
2 |
|
2033 / 922 |
|
|
|
3 4 5 |
|
1713 / 777 1480 / 671 1303 / 591 |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Traction |
|
Traction speed |
|
Power consumption ( a ) |
lbs / kg |
|
ft / min |
m / min |
|
24 V |
|
|
|
|
|
|
0 |
|
10,5 |
3,2 |
|
25 |
500 / 227 |
|
9,6 |
2,9 |
|
35 |
1500 / 680 |
|
7,7 |
2,4 |
|
65 |
2500 / 1134 |
|
6,2 |
1,9 |
|
100 |
<
Schicht aus Seil/Kabel |
Seilzug: lbs(kgs) |
1 |
2500 (1134) |
2 |
2033 (922) |
3 |
1713 (777) |
4 |
1480 (671) |
5 |
1303 (591) |
Seilzug
lbs (kgs) |
Seilgeschwindigkeit 12v
ft/min (m/min) |
Stromaufnahme (A)
12v |
Stromaufnahme (A)
24v |
0 |
10.5 (3.2) |
45 |
25 |
500 (227) |
9.6 (2.9) |
65 |
35 |
1500 (680) |
7.7 (2.4) |
120 |
65 |
2500 (1134) |
6.2 (1.9) |
6 |
100 |
