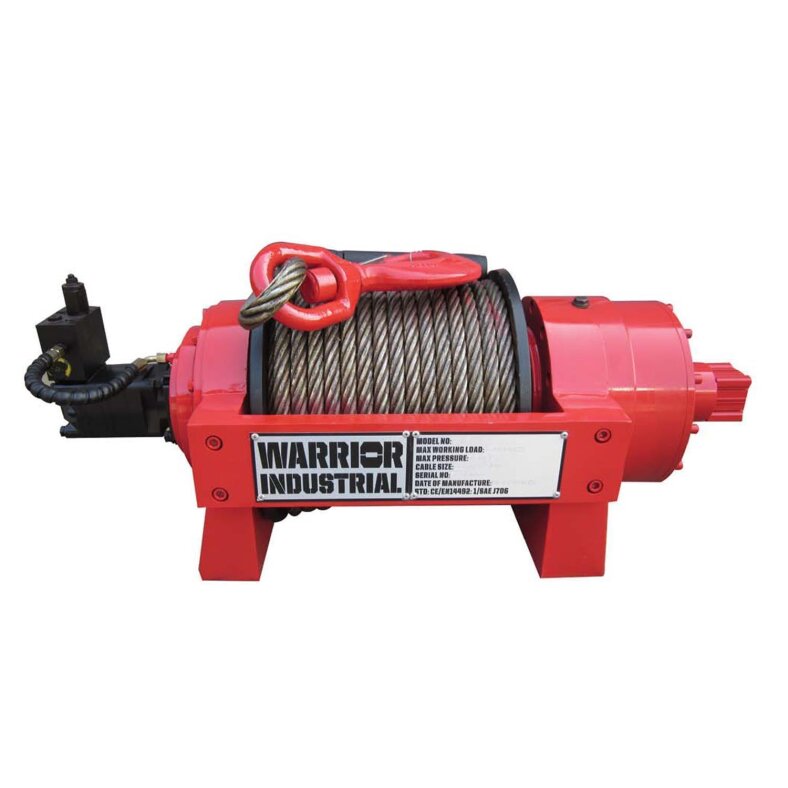

Warrior 15jp
15000 KG hydraulic rope winch
Rugged and compact, the jp series was designed and tested for the toughest applications.
Minimum drum-to-rope ratio of 10:1, multi-disc friction brake, equalizer valve,
and rope tensioner are standard features. Available from 10t to 25t. Manufactured to meet the
Requirements of en 14492 : 1
.Standard equipment
- Full sliding heavy duty planetary gearbox
- Multi-disc friction brake
- High torque industrial motor
- Air and manual clutch actuation
Outstanding features
- Heavy duty rope tensioner standard
- Minimum 10:1 rope to drum ratio
- Balancing valve standard
Specifications
-
Rated tensile force: 15.000 kg
-
Working speed (max. without load):
13.56 m/min on 5th layer (8,618 Kg tractive force), 8.17 m/min on 1st layer (19,968 Kg tractive force)
-
Locking set pressure: <2.5 Mpa
-
Working pressure max: 170 bar
-
Oil flow max: 110 L/min.
-
Drum size (mm): Ø210 x 340
-
Steel cable: 50m x 22mm (iso 4301 and sae j706)
-
Weight: 320kg
