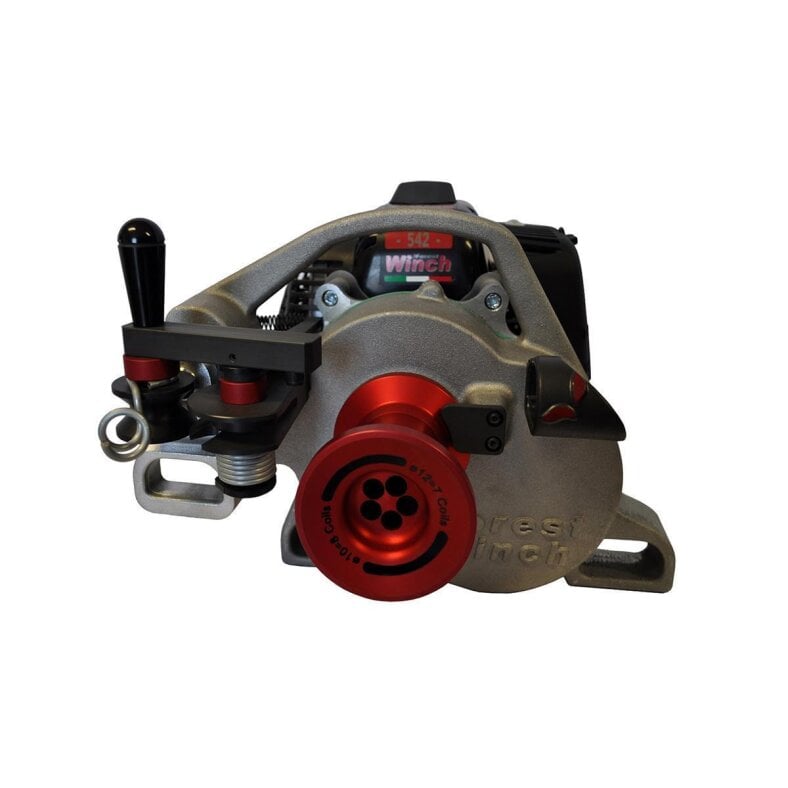

The Docma vf105 Red Iron capstan winch is a newer product in the ForestWinch line.
The capstan winch with modern and functional design has been developed to meet a wide range of usage requirements.
The docma vf105 Red Iron portable winch stands for lightness, speed and maximum power. It is therefore the perfect solution for demanding professional users.
High-quality materials such as high-strength aluminum alloy and an integrated automatic brake, as well as the high number of rope windings on the drum, ensure increased safety and maximum pulling power.
The winch therefore comes with deflection to a pulling force of 2100 kg.
Easy operation:
The winch can be controlled via the pull rope even with a large distance to the winch. Automatic acceleration and braking by pulling and releasing the rope.
This version includes a plastic rope of 10mm x 100m.
Technical data of docma vf105 Red Iron:
| Maximum pulling force |
1050 kg |
| Maximum tractive force with pulley |
2100 kg |
| Weight |
10,5 kg |
| Dimensions |
346x336x253 mm |
| Speed |
20 m/min |
| Engine displacement |
54,2 cc |
| Brake type |
Automatic |
| recommended rope diameter |
10-12 mm |
| Windings on the drum |
10mm (8) / 12mm (7) |
Application video of docma vf105 Red Iron:
Product safety information
Manufacturer information:
DOCMA Srl
Via dell’Artigianato 14
37050 Raldon di San G. Lupatoto VR, Italien
sales@docma.it
Responsible person:
DOCMA Srl
Via dell’Artigianato 14
37050 Raldon di San G. Lupatoto VR, Italien
sales@docma.it
