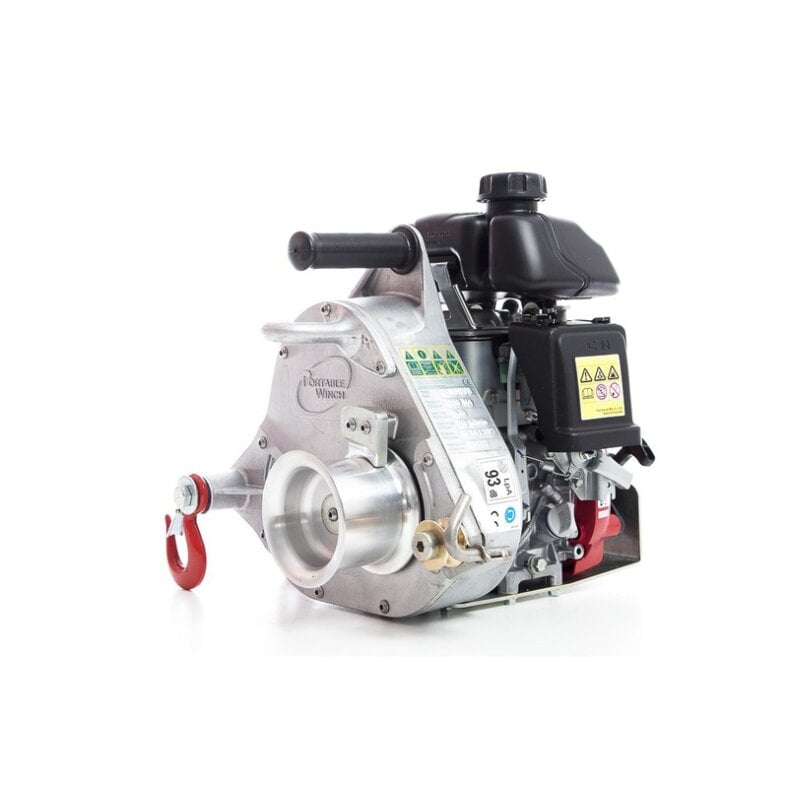

Pulling winch with gasoline drive - High Speed. Max. Pulling power 350kg.
When you need to go fast!
The high speed version of the PCW5000.
It is specially wrapped for fiber optic cable installation. Powered by Honda's gxh-50 cc four-taker and with an 85 mm diameter drum, this model can pull loads of 350 kg at a speed of 35 meters per minute.
Twice as fast as the PCW5000!
It can be used with a double braided polyester rope of any length and a 10 or 12 mm diameter, as well as with any type of equipment and accessories from Portable Winch.
Unbeatable partner in all working environments!
This winch will be a great ally on any construction site!
PERFORMANCE
Maximum pulling force with drum installed (metric) : 350 kg
Maximum pulling force with optional drum (metric) : 500 kg
ANCHOR WINCH DRUMS
Installed : 85 mm
Optional : 57 mm
SPEED
57 mm drum : 24 m/min
85 mm drum : 36 m/min
ROPE
Minimum diameter (metric) : 10 mm
Maximum diameter (metric) : 16 mm
Recommended diameter (metric) : 12 mm
DRIVE SYSTEM
Engine : Honda gxh-50 cc four stroke
Gearbox : Alloy aluminum gearbox. Heat-treated 3-stage spur gear. Shafts are mounted in ball bearings. Oil bath lubrication.
Reduction ratio : 53:1
Brake : Anti-reverse needle bearing
Clutch : n/a - direct drive
Drum rotates when engine idles : Yes
Duty cycle : Continuous
WEIGHT and DIMENSIONS
Weight (metric) : 16 kg
Length (metric) : 36.2 cm
Width (metric) : 37.1 cm
Height (metric) : 36.1 cm
ANCHORING
Included : Polyester belt 60 mm x 2 m (PCA-1260)
