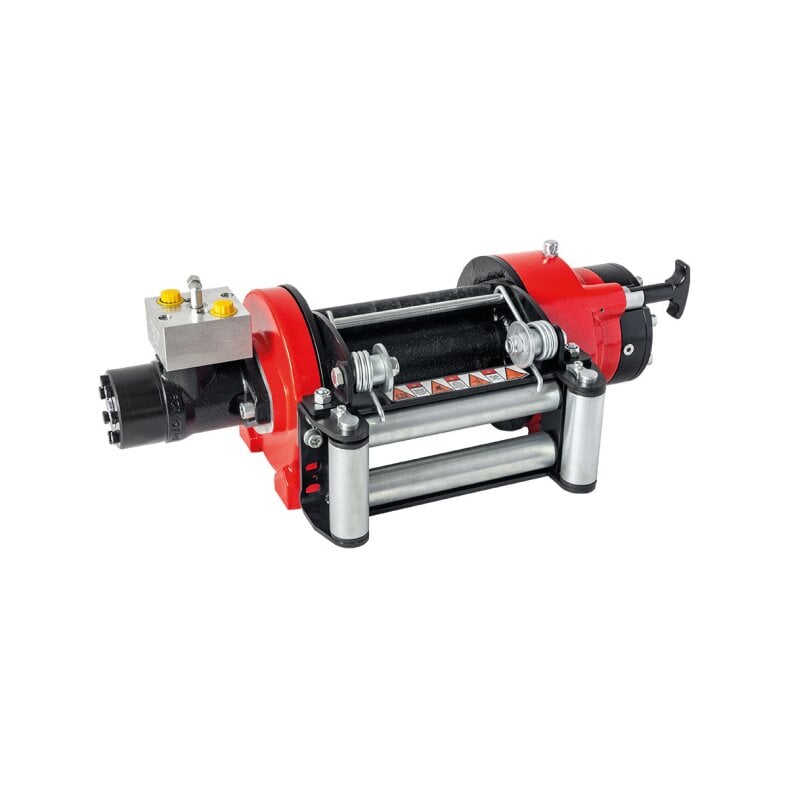

hydraulic winch hmw 3.6 PhT-en
aluminum cast body extra reinforced by heat treatment, light and strong design, high rope capacity
negative acting hydraulic brake reinforced by multiple discs, holding the load 100%, cast roller with long service life and high torque hydraulic motor
Maximum tensile strength (kg / lbs) : 3550 kg (7824 lbs)
Maximum rope length en 14492-1 (m / ft) : 40 m (131 ft)
Maximum rope diameter (mm / in) : 10 mm (3/8") 1960 MPa
hydraulic motor (cm³ / in³) : 250 cm³ (15 in³)
Maximum actuation pressure (bar / psi) : 135 bar (1958 psi)
Maximum pump capacity (lt / min - gal / min) : 60 l (15.8 gal)
Transmission ratio : 5,6 : 1
recommended oil : 85w 140-0.75 l.
weight of the product:
Rope drum : (kg / ibs ) : 44 kg (96 ibs)
Front roller : ( kg / lbs ) : 6 kg (13,22 lbs)
pressure roller : ( kg / lbs ) : 2,5 kg (5,51 lbs)
| Rope layer |
Pulling force
kg/lbs |
Pulling speed |
Rope length
m/ft |
| 1 |
3550/7824 |
14/45 |
8/26 |
| 2 |
3070/6766 |
17/55 |
17/55 |
| 3 |
2700/5950 |
20/65 |
28/91 |
| 4 (en) |
2400/5292 |
22/72 |
40/191 |
| 5 |
2180/4800 |
25/82 |
55/180 |
Technical properties:
- According to en 14492-1
- Manual freewheel
- Rope drum width 244 mm
- Rope speed 21,00 - 15,95 m/min
- Pulling force [t]: 3,5
- operating pressure [bar]: 135
- Oil flow [l/min]: 60
- weight [kg]: 52,5
dimensions [mm
a [mm]: 244
b [mm]: 330,4
c [mm]: 688
d [mm]: 331
e [mm]: 235.4
f [mm]: 308.4
g [mm]: 111.2
h [mm]: 163.2
i [mm]: 100
Scope of delivery:
- Cable winch
- Rope pulley window
- Rope pressure roller
- Load holding valve
Product safety information
Manufacturer information:
HAMMER WINCH
Mutlukent 2073. SK
6800 Cankaya/Ankara, Türkei
export@hammerwinch.com
Responsible person:
HAMMER WINCH
Mutlukent 2073. SK
6800 Cankaya/Ankara, Türkei
export@hammerwinch.com
