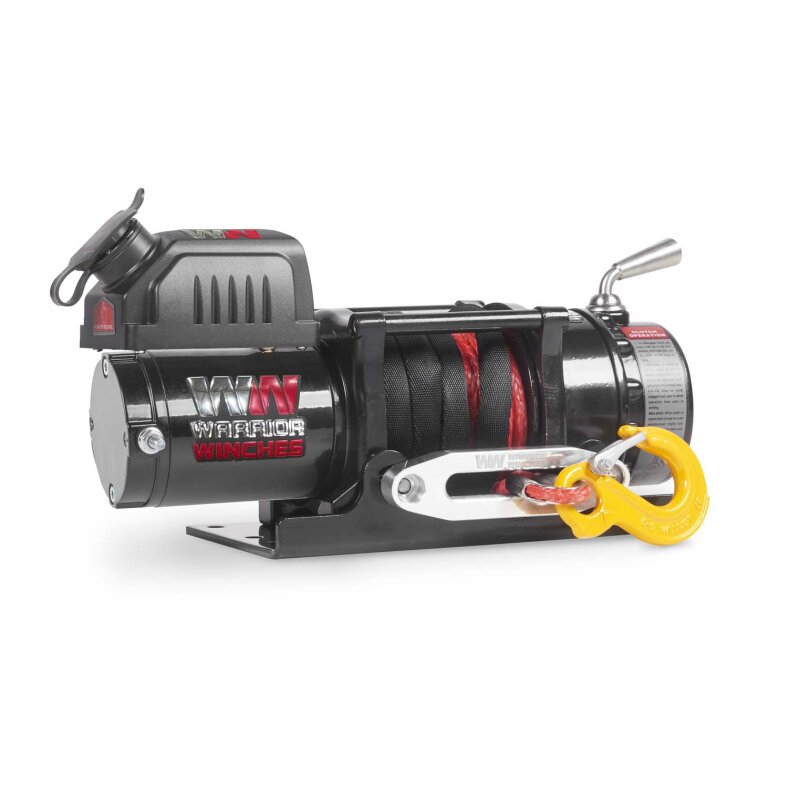

warrior 4500 ninja 2t 24V synthetic rope

The top selling quad/aTV winch in the Warrior Range. The high quality 3-stage planetary gearbox makes this one of the quietest and smoothest running winches in the entire winch market. The smooth running performance and full load holding brake make the 4500 ninja the perfect solution for highly demanding applications.

Standard features:

Pulling force: 4,500lb (2,041kg)
Rope: 14.5m length ø6mm armortek plastic rope with g80 3/8 clevis hook**
Motor: sealed (ip68) and corrosion resistant in-line motor
Power: Input power: 2.9 kw / output power: 1.3 kw
enables electrical pulling in and out of the rope
Gearbox: 3-stage metal drive
with overrunning clutch: allows the manual extraction of the rope
Gear ratio: 172:1
brake: automatic mechanical brake
Protection class: IP66

**please note: Clevis hook not removable. Plastic rope must be passed through rope window once and fixed on drum.

Scope of delivery:

Cable remote control: included (3m cable length)
Rope window: aluminum rope window
mounting screws: included (for standard mounting)
battery cable: Length 1.5 m (must be extended depending on application), cable cross-section: 10 mm²
operating instructions
Mounting plate: inclusive

Further information:

dimensions (l x w x h): 378mm x 126mm x 200mm
Hole pattern/drilling pattern winch: 129mm x 96mm (4Screws)
Hole pattern/drill pattern mounting plate: 230mm x 90mm (horizontal ø 10mm)
Weight: 13kg

Pulling speeds and power consumption:

Rope layer	Tractive force
	lbs / kg

1	4500 / 2041
2	3642 / 1652
3 4	3060 / 1388 2638 / 1196


Tractive force	Traction speed		Power consumption ( a )
lbs / kg	ft / min	m / min	24 V

0	11,6	3,6	15
1500 / 680	9,2	2,8	40
2500 / 1134	7,8	2,4	65
3500 / 1587 4500 / 2041	6,6 4,9	2,0 1,5	80 130

IMPORTANT:
We expressly point out that this winch is designed exclusively for off-road and private use.
It is a pure pulling winch for pulling rolling loads horizontal planes.
use outside the described areas will void any warranty!
You can find our commercial pulling winches here: Commercial winches.

Voltage:	24 V
Line Pull:	1,1 - 2 t
Cable/Rope Length:	1 - 15 m
Cable/Rope Type:	Synthetic Rope
Price:	200 - 399 EUR
Brand:	Warrior®
Application:	Private Off-Road
Vehicle Type:	ATV/Quad Others
Drive Type:	electric
Special Features:	weatherproof
Shipping weight:	12,00 kg
Item weight:	11,00 kg
Dimensions ( Length × Width × Height ):	37,80 × 12,60 × 20,00 cm
