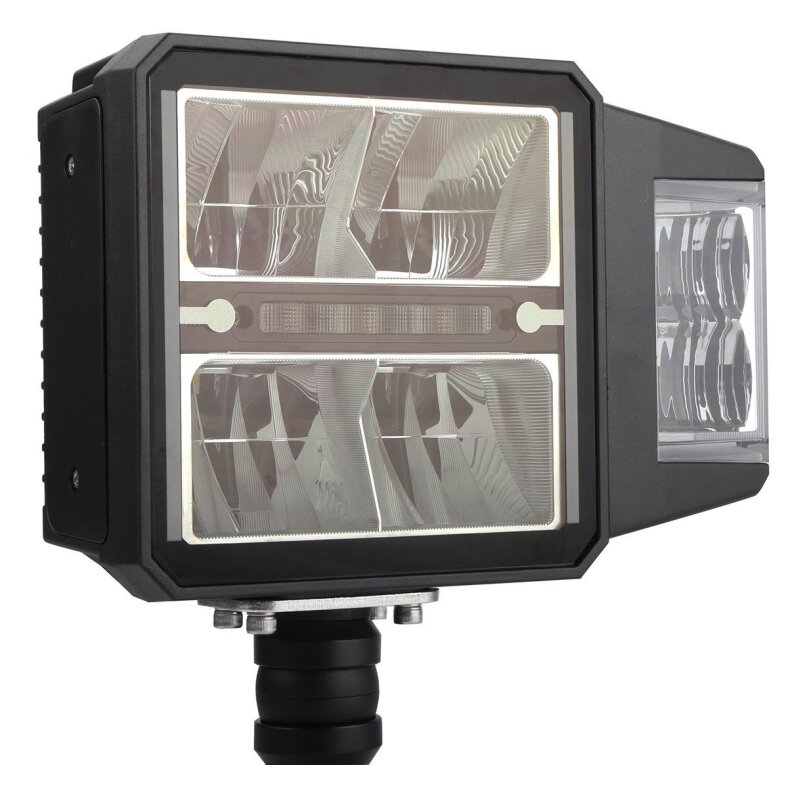

LED snow plow headlight with Flex-Blink and Anti-Icing technology
The spl-02e is an absolute premium product. It combines the most
advanced technology, highest light efficiency and perfect
and perfect workmanship.
Due to the patented heating lens technology even at the lowest
even at the lowest working temperatures
Work can be guaranteed.
At -25°c and an ice layer of approx. 5mm on the surface of the lens
the lens is heated by activating the
Heat switch within the next minute to -18°C,
within another five minutes to -1°c and
after another 15 minutes the lens is tempered to 15°c.
The headlight is equipped with covers on all sides, making the use of the turn signal optional.
The damper elements in the bracket support the vibration resistant design.
Product Features:
- High beam / low beam / position light / turn signal
- approved for road traffic according to ec
- patented anti-icing due to heating lens
- especially suitable for low temperatures
- Reflective coating technology
- Multi-mounting system for turn signal light - left, right, top
- Bottom and rear mounting option
- Over/under voltage protection
- Reverse polarity protection
- IP68 with waterproof venting
- UV resistant, shock resistant
- Lifetime: over 50,000h
- Reference number: 12.5
Technical specifications:
Input voltage dc 10-30V
Light source
Position light 1,5w Lumileds LED
Low beam 20w eti LED
High beam 38w eti LED
Turn signal 20w Prolight LED
Power consumption
12V/24V
Position light: 0.1A/0.05A
Low beam: 1.6A/0.86A
High beam: 13.2A/1.6A
Turn signal light: 1.8A/0.8A
Heating lens: 1.9A/0.8A
Light output raw/eff.
Position light: 160/130
Low beam: 1800/1530
High beam: 3600/2900
Flashing light: 400/340
Light intensity
Low beam: 26875cd
High beam: 78125cd
Color temperature: 5,500K
Lens: tempered glass
Housing: die-cast aluminum alloy (Adc12)
with heat sink
Protection class: IP68
Weight: 1.9kg
Homologation: ecE 112r | 10r | 7r | 6R
