LP-PXHL-7 Main headlight set for vehicles
with headlight range control 12V
Mercedes Benz g-class | Puch | ECE road approval
Models: W460, w461, W463
Scope of delivery:

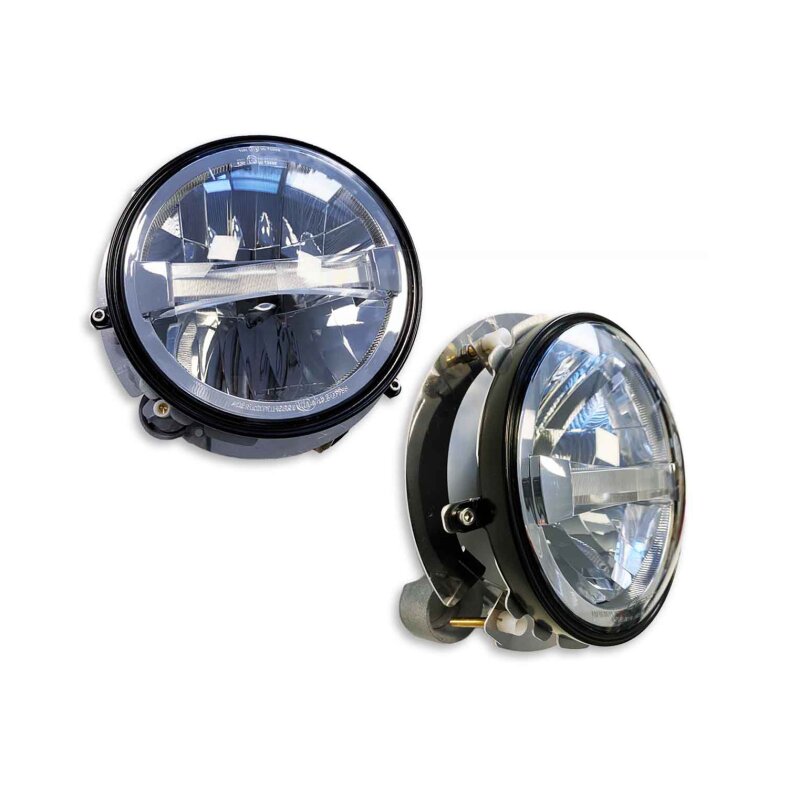

2x 7" LED main headlight Prime-X (LP-PXHL-7) 12V
2x complete bracket for headlight leveling incl. retaining ring
Note:
hydraulic motor can be exchanged for electric motor.
Scope of delivery without adjustment motor!
The premium 7" MAIN HEADLIGHT
OEM look and quality
Position and daytime running light
with moisture compensation membrane
Special bracket mounts for Mercedes g -
with this headlight you get the genuine original look of your Mercedes g,
but benefit from pioneering LED reflector technology that penetrates any darkness.
Step up to a whole new driving experience.
The LTPRTZ LED headlight set is suitable for Mercedes Benz g models and Puch W460-W463.
The original adjustment motor can still be used (not part of the delivery).
To replace the original halogen bulbs, the Prime-X headlights fit them perfectly to your g.
The function includes high beam, low beam, position light and daytime running light (DRL).
The streamlined design shows the form of simplicity and aesthetics; it also reduces the bulkiness of the lamp.
It not only features elegant design, but also makes full use of the reflector to ensure excellent performance and beam pattern.
Due to the LED light source, the color is not only cool white (6000k), but also can save up to 87% of the previous power consumption of traditional lamps.
This will greatly reduce the overall power consumption of the car and extend the battery life;
The LED light can be used for up to one hundred thousand hours.
| Technical Data Headlight PXHL-7 |
|
| Input voltage |
|
12V |
|
| Light source |
|
Low beam high beam: 23w/15w 1x OSRAM each
Parking/daytime running light: 2w/14w 4x cree |
|
| Lifetime LED |
|
up to 100.000 h |
|
| Light output (effective) |
|
Low beam: 12v/24v: 1336lm/1358.2lm |
|
| Light diffusion |
|
ECE |
|
| Light color |
|
6000K |
|
| Protection class |
|
IP68 |
|
| Lens |
|
shatterproof polycarbonate |
|
| housing |
|
Aluminum die casting |
|
| Mounting |
|
Installation in original bracket |
|
| Connection |
|
H4 | additional 2-pole |
|
| weight |
|
0.8 kg |
|
| Dimensions |
|
Ø 177 mm | depth 118 mm |
|
| Homologation: |
|
ECE 112R class b|87r|7r|10r| Ref. 17.5 |
|
