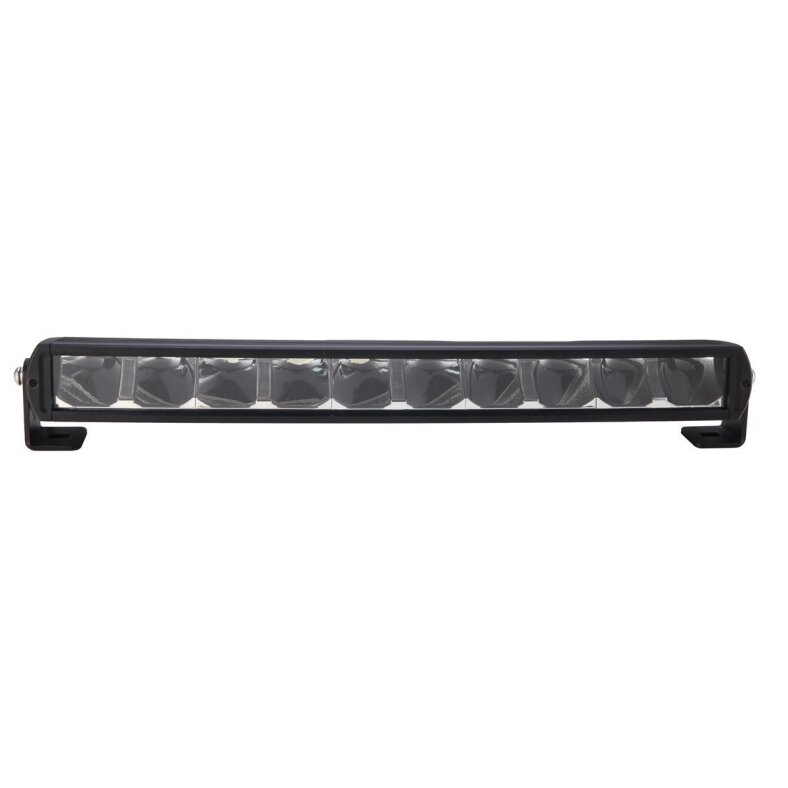

100W c-re Curved led Lightbar 20° ece
with position light
The c-re series is the first curved lightbar with position light and road approval. Equipped with a 20° beam that still produces 1 lux at 425m, you can still ride with foresight even at high speeds. The position light gives you the certainty to remain well recognizable even when stationary. High quality led chips ensure long life and consistent color temperature even after thousands of hours of use.
Materials:
- 10W eti led chip
- Color temperature: 6500K
- 6063 extruded aluminum heat sink
- Efficient polycarbonate(PC) lenses
- Lexan polycarbonate(PC) front cover
- Standard side and bottom mount
Features:
- Newly developed optical system with lateral beam pattern
- Driving light+parking light
- Electronic thermal management (ETM technology)
- Pressure compensation venting
- EMC compliant (ece r10 approved)
- Over-/undervoltage protection
- Reverse polarity protection
- UV-resistant, shock-resistant, impact-resistant
- IP68 waterproof venting
- 50.000+ hrs led lifetime
- Reference number: 45
- Range: 425m (1 Lux)
Scope of delivery
- 1x Lightbar Daylight 100W
- Mounting screws and nuts stainless steel
- 3-pin PDT male and female connector
- 2x side mount
- 2x sliding feet
| Technical data |
|
| Input voltage |
|
9-36V |
|
| Light source |
|
10x 10W |
|
| Power consumption |
|
100W, 12v: 6.5a | 24v: 3.1A |
|
| Light output (raw/eff) |
|
High beam 9500lm/ 8075lm |
|
| Light dispersion |
|
Driving light 20° |
|
| Light intensity |
|
172.125cd |
|
| Protection class |
|
IP68 |
|
| Lens |
|
shatterproof polycarbonate |
|
| Housing |
|
extruded aluminum 6063 |
|
| Mounting |
|
standing |hanging |
|
| Connection |
|
3-pin PDT connector |
|
| Weight |
|
2,25 kg |
|
| Dimensions LxWxH |
|
523.0 x 83.0 x 56.0mm |
|
| Homologation: |
|
ece 112R |7r | 10R |
|
NOTICE:
Before purchasing, please check with your local licensing authority regarding country-specific regulations for the installation and use
of the auxiliary headlamps at your local registration office!
For more detailed information, please refer to the ece r48: installation of lighting and light signaling devices on motor vehicles.
