- Conforms to part of BS EN 14492-1:2006+A1:2009
- Drum to rope Ratio 10 : 1
- Wire Rope 2 : 1 Safety Factor
- Hydraulic Full Load Holding Brake
- Rope fixing 2.5 Times rated Load

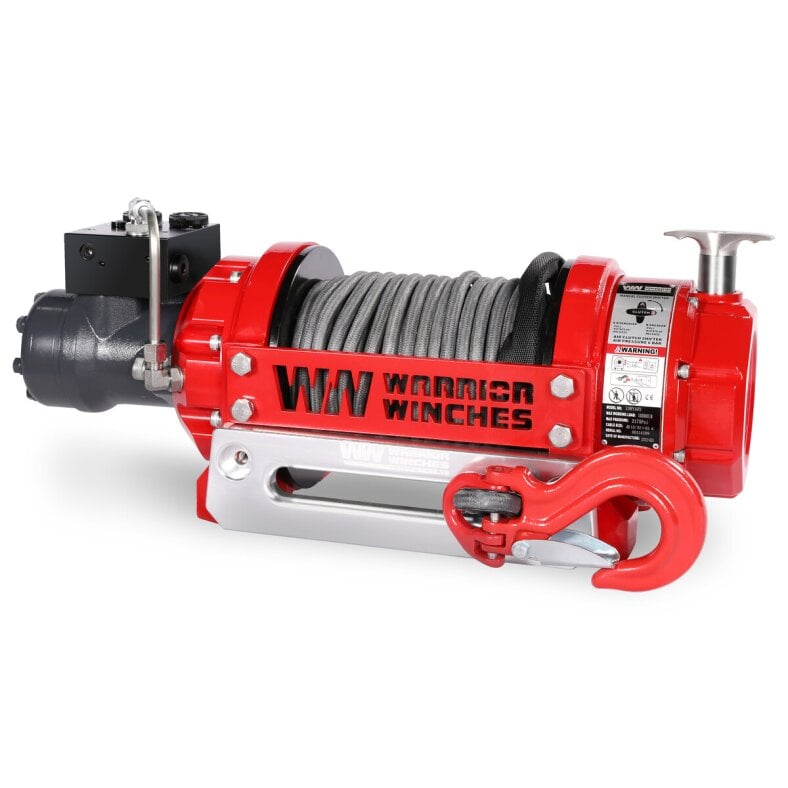

Our RV Series hydraulic winches are meticulously engineered to meet the SAEJ-706 standard, ensuring quality and performance. With a robust Drum to Rope Ratio of 10:1, these winches deliver optimal efficiency, providing the power you need for challenging commercial and industrial applications.
Safety is our priority, and as such the Wire Rope boasts a 2:1 Safety Factor, whilst the Rope Fixing feature guarantees a robust 2.5 times rated load capacity offering an additional layer of reliability in demanding scenarios. Equipped with a Hydraulic Full Load Holding Brake, these winches provide precise control, enhancing safety and operational stability during load handling.
The RV Series is available in a range of capacities, spanning from 10,000lbs to 18,000lbs, ensuring that there's a perfect fit for your specific needs. Whether you're dealing with intense industrial tasks or demanding commercial projects, our hydraulic winches offer the reliability and strength required to get the job done efficiently.
Choose the RV Series for a hydraulic winch that not only meets industry standards but exceeds expectations in durability, safety, and performance, making it the ideal solution for your toughest applications.
Combined with a suitable installation solution they can meet the requirements of BS EN 14492-1:2006+A1:2009 (Steel Cable Models Only).
| Layer of Rope/Cable |
Line Pull: lbs(kgs) |
Rope on drum ft(m) |
| 1 |
10000 (4536) |
23.0 (7.0) |
| 2 |
7355 (3336) |
49.2 (15.0) |
| 3 |
6780 (3075) |
78.7 (24.0) |
| 4 |
5711 (2591) |
98.4 (30.0) |
Line Pull
lbs (kgs) |
Line Speed
ft/min (m/min) |
Flow
L/min (G/min) |
Pressure
Mpa |
| 0 |
36.1(11) |
5 (1.35) |
3.0(435.1) |
| 4000(1814) |
23.6(7.2) |
10 (2.6) |
6.8(986.2) |
| 6000(2722) |
11.8 (3.6) |
20 (5.2) |
9.2(1334.3) |
| 8000(3629) |
5.9(1.8) |
40 (10.4) |
12.0(1740.4) |
| 10000(4536) |
3.0(0.9) |
60 (15.6) |
15.0(2175) |
Product safety information
Manufacturer information:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
Responsible person:
BPE Solutions Deutschland GmbH
Altrottstraße 31
69190 Walldorf, Deutschland
post@bpeholdings.de
| Item information |
Value |
| Cable/Rope Type: |
Synthetic Rope |
| Brand: |
Warrior |
| Pulling Force max [lbs]: |
10000 |
| Gear Transmission: |
17,6:1 |
| Rope Diameter [mm]: |
10,2 |
| Rope Length [m]: |
30 |
| Drum Size [Dia x L in mm]: |
102 x 201 |
| Length [mm]: |
594 |
| Width [mm]: |
237 |
| Height [mm]: |
241 |
| Weight [kg]: |
47,6 |
| Mount-Pattern [mm]: |
254 x 114,3254 x 165,1 |
| Linespeed max [ft/min]: |
36 |
| Linespeed min [ft/min]: |
3 |
| Drive Type: |
hydraulic |
| Shipping weight: |
55,00 kg
|
| Item weight: |
49,00 kg
|
| Dimensions
( Length × Width × Height ):
|
59,40 × 23,70 × 24,10 cm |
